Slocable TUV IP68 Waterproof PP0 Material 250V AC 25A 3P Betteri BC01 Connector Female for Solar Inv
| Price | ￥3.21/Piece |
| Min quantity | 1000Piece |
| Quantity | 10000000Piece |
Slocable TUV IP68 Waterproof PP0 Material 250V AC 25A 3P Betteri BC01 Connector Female for Solar Inverter
Product Description
The BC01 AC PV Female Plug is used to make an extension cord between two microinverters or to create a connecting power cord. The opposite side can be connected to an H07RN-F rubber hose line with a diameter of 10 – 13mm. You need this socket to connect the micro inverter to your home network.
The Betteri BC01 is a three-pin connector made of UV-resistant material. In addition, it is dust and waterproof to IP68 standards and is therefore suitable for indoor and outdoor use. A male connector is mounted on the output of the microinverter.
Features of BC01 Connector Female
Compact dimensions, more pleasing in form
Screw connection for easy field installation
IP68 level protection of enclosure
Choose the best plastic material; ensure the product performance and using life
UV resistant – suitable for indoor and outdoor mounting
Product quality is stable and reliable, suitable for outdoor applications
Suitable for one-phase inverters, for cables with a diameter of 10 – 13 mm
TUV, CE certificate
Technical Data
Technical Data
Insulation material: | PPO | Rated current: | 25A |
Test voltage: | 4000V | Rated voltage: | 250V AC |
| Contact resistance: | ≤1mΩ | Degree of protection: | IP68 waterproof level |
| Overvoltage category: | CATIII/2 | Flame class: | UL94-V0 |
Safety class: | II | Contact material: | Copper, tin/silver plated |
| Temperature range: | -40℃ ~ +85℃ | Suitable cable: | 2.5/4mm2 or 14/12AWG |
| Wire diameter range: | 10~13mm | Insertion force/ withdrawal force: | 10N~50N |
| Product size: | 85.5mm*35.0mm*35.0mm / 50.96g/pcs | ||

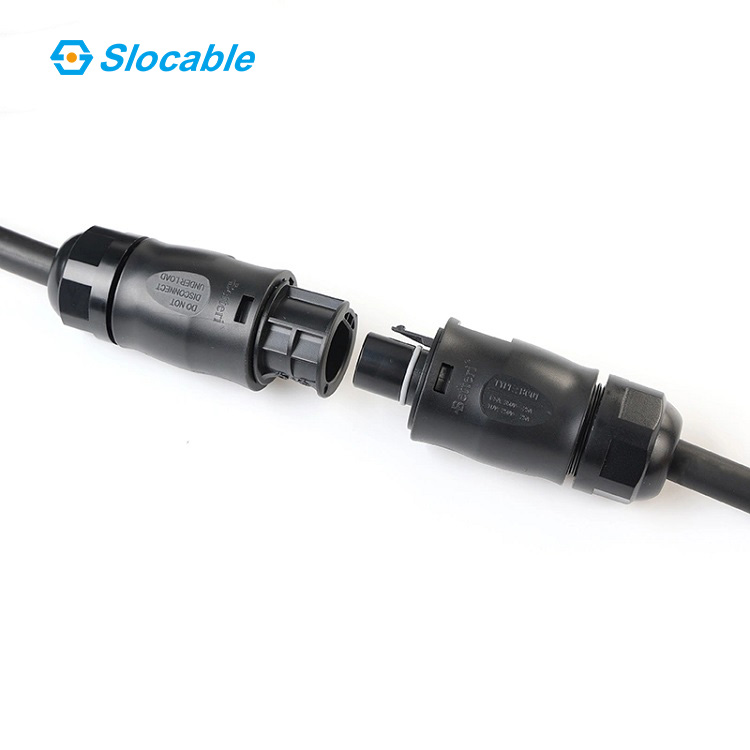

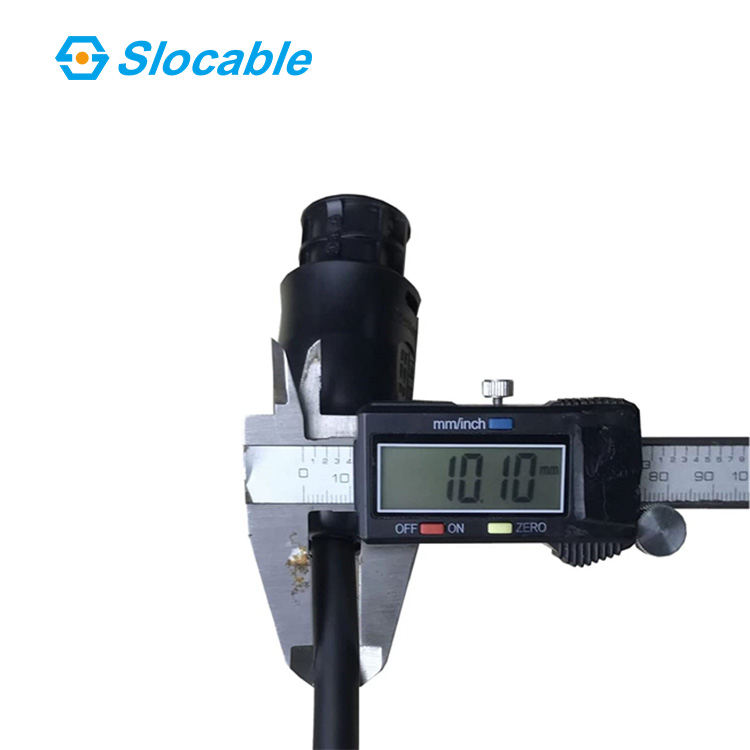

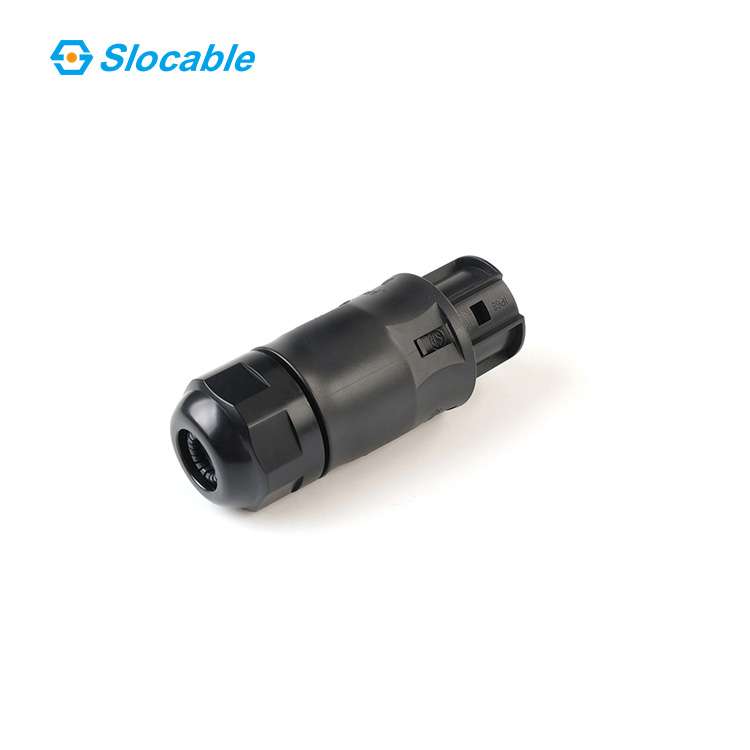

Detailed Images
Product Details
