Slocable IP66 Waterproof 500V 1000V 2 4 6 8 10 Strings DC Solar Combiner Box for PV Solar Panel on/o
2022-11-18 16:199530
| Price | ￥47.00/Piece |
| Min quantity | 500Piece |
| Quantity | 10000000Piece |
Slocable IP65 Waterproof 500V 1000V 2 4 6 8 10 Strings DC Solar Combiner Box for PV Solar Panel on/off Grid
Product Description
| System maximum dc voltage | 500/1000V |
| Maximum input strings | 2/4/6/8/10 |
| Maximum input current for each string | 15A |
| Maximum output switch current | 20A/32A |
| Number of inverter MPPT | 1 |
| Number of output strings | 1 |
| Nominal discharge current | 20KA |
| Maximum discharge current | 40KA |
| Voltage protection level | 2.8KV/3.8KV |
| Maximum continuous operating voltage Uc | 630V/1050V |
| SMC4 Connectors/dc fuse/dc surge protector | Standard |
| Monitoring module/Preventing diode | Optional |
| Box material | PC/ABS |
| Installation method | Wall mounting type |
| Operating Temperature | -25℃--+55℃ |
| Permissible relative humidity | 0-95%, no condensation |

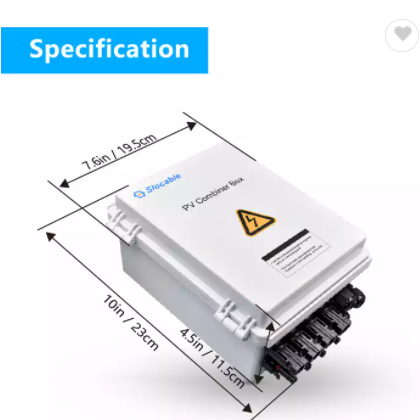

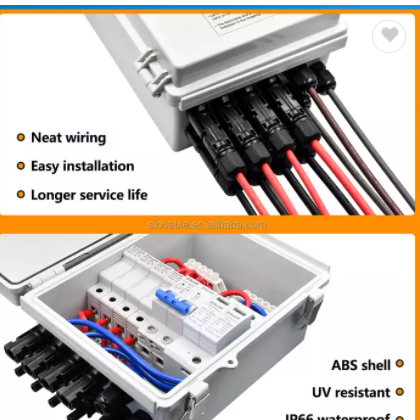

Detailed Images
We also manufacture PV Cables, PV Connectors, Solar Fuse Connetor, DC Fuse, Diode Connector, Solar Cable Extension, Cable Assembly and so on.
