5kva Single phase transformer 7.2kv transformer with price

Product Description

Conventional Type

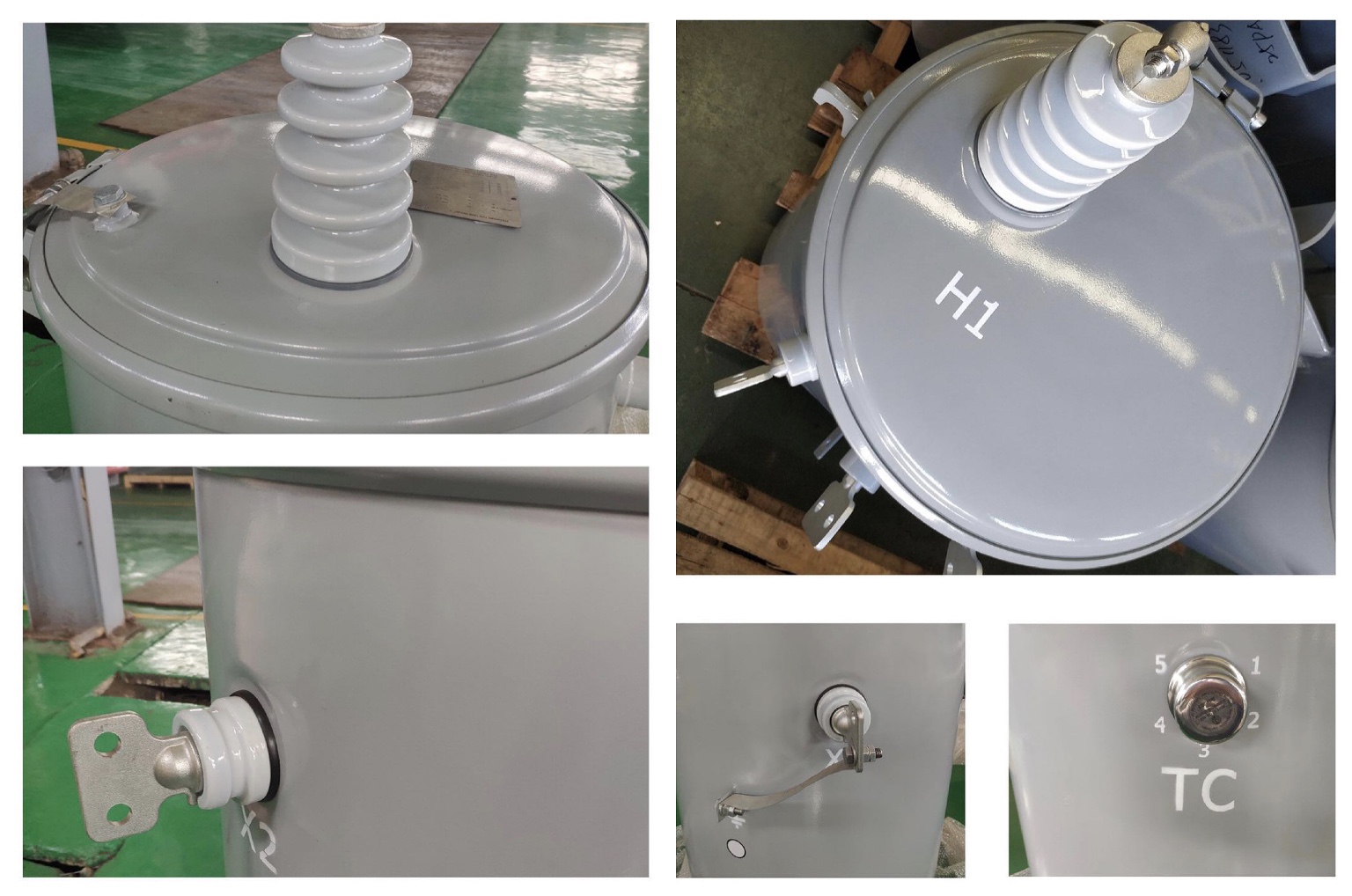

The transformer is a cylinder sealing structure. Each one is fixed with grounding devices, hooks, supporting lugs that conforms to ANSI standard, and one or two high voltage bushing on the cover, low voltage bushing on the wall of the tank, and eyebolt, connecting terminals. The tap changer should be adjusted basing on the instruction after the power off.

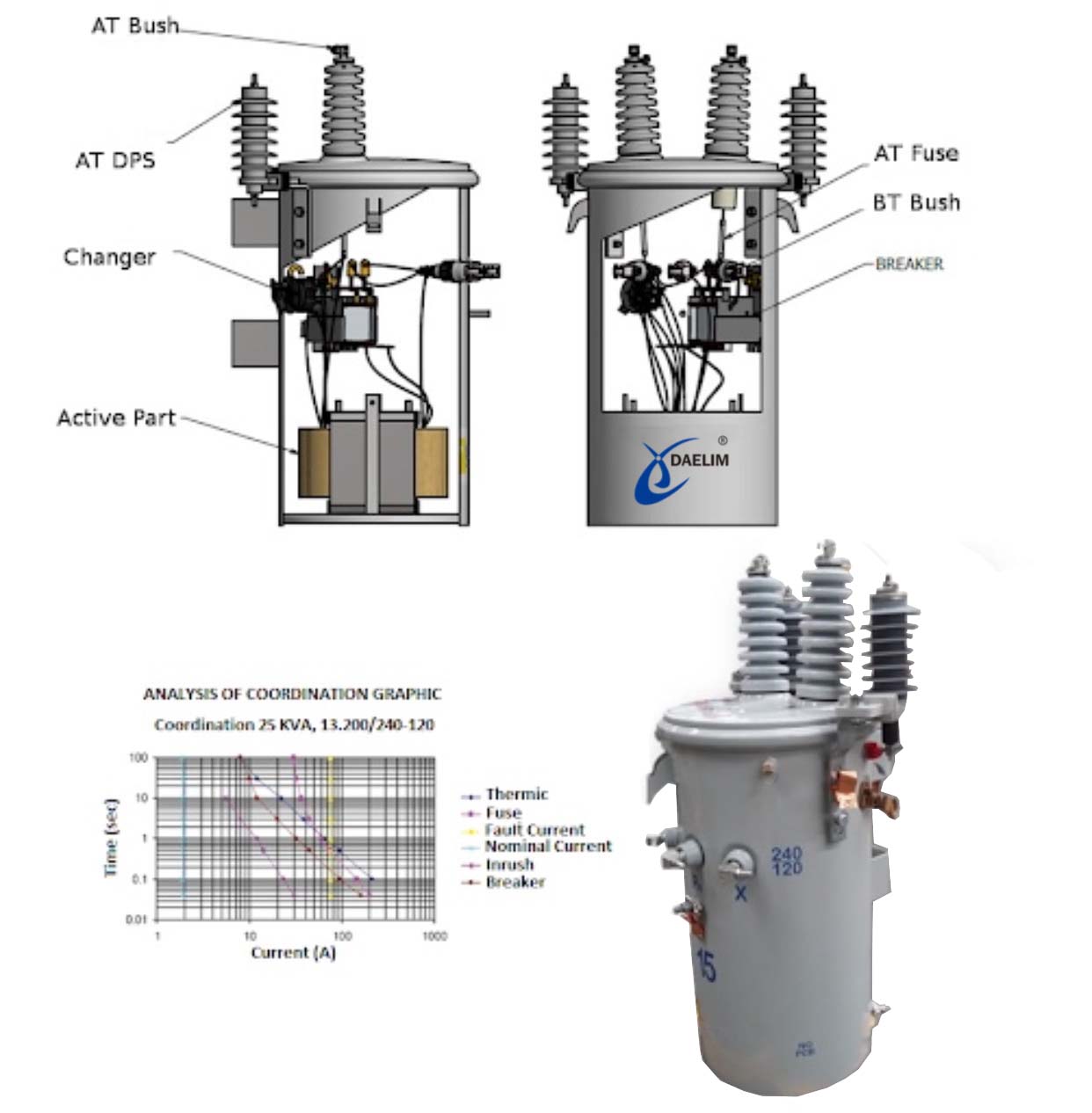

CSP Type

This type of transformers is CSP type, which can protect itself from thunder and lightning, short circuit, and protect the transiting and distribution line from current failure because of self-malfunction. All units are built in accordance with IEC60076, ANSI/IEEEC57.12.20, CSA C2.1-06, CSA C2.2-06 and etc.

Application

* Used alone for the supply of a single phase load or as one of three units in a bank for the supply of a three phase load

* Designed for servicing residential overhead distribution loads

* Suitable for light commercial loads, industrial lighting and diversified power applications

Technical Specification

Product Details
