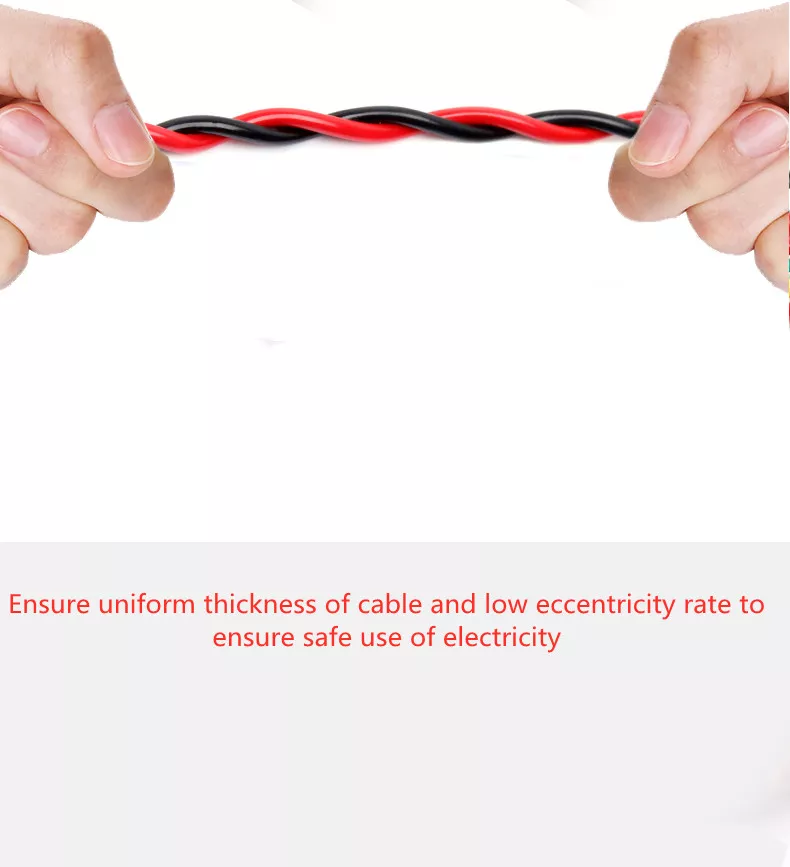

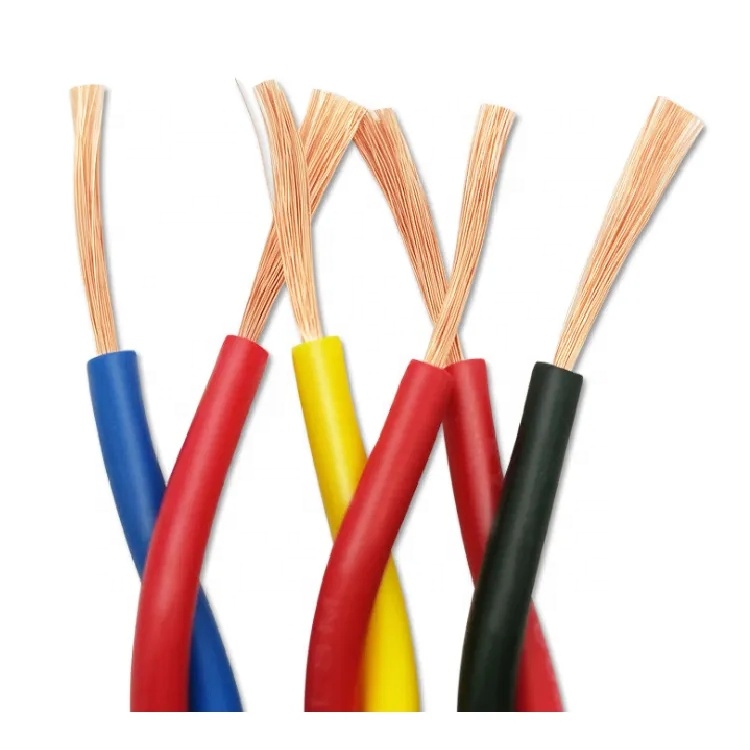

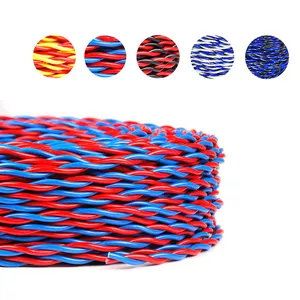

FREE SAMPLE RVS Two Cores Twisted Pair Copper Conductors PVC Insulated Twisted Flexible Wire

2022-11-08 16:248840
Price N/A

Product Description

Product parameter information

300V RVS Cable Fire Alarm Electric Cable Power Wire 2 Core 0.75MM 1.0MM 1.5MM 2.5MM 4MM Bare Twisted Copper Wire

Application: This product is suitable for fixed wiring of power equipment with AC voltage of 300/300V, 300/500V, 450/750V. Production standard: GB/T5023.3-2008,IEC 60227, JB/T8734.5-2008 The type name and specification of product:

Type

conductor

Insulation thickness

Cable diameter

Conductor dc resistance at 20℃ <Ω/km

Nominal ares(mm²)

Strands/dia

(mm)

Overall
dia.
(mm)

Average dia. of insulation(mm)

RVS

2×0.75

35×0.16

0.8

6.2

2.7

26.0

2×1.0

48×0.16

0.8

6.6

2.9

19.5

2×1.5

69×0.16

0.8

7.2

3.2

13.3

2×2.5

115×0.16

0.8

8.2

3.8

7.98

2×4.0

187*0.16

0.8

9.2

4.4

4.95

Excellent cases

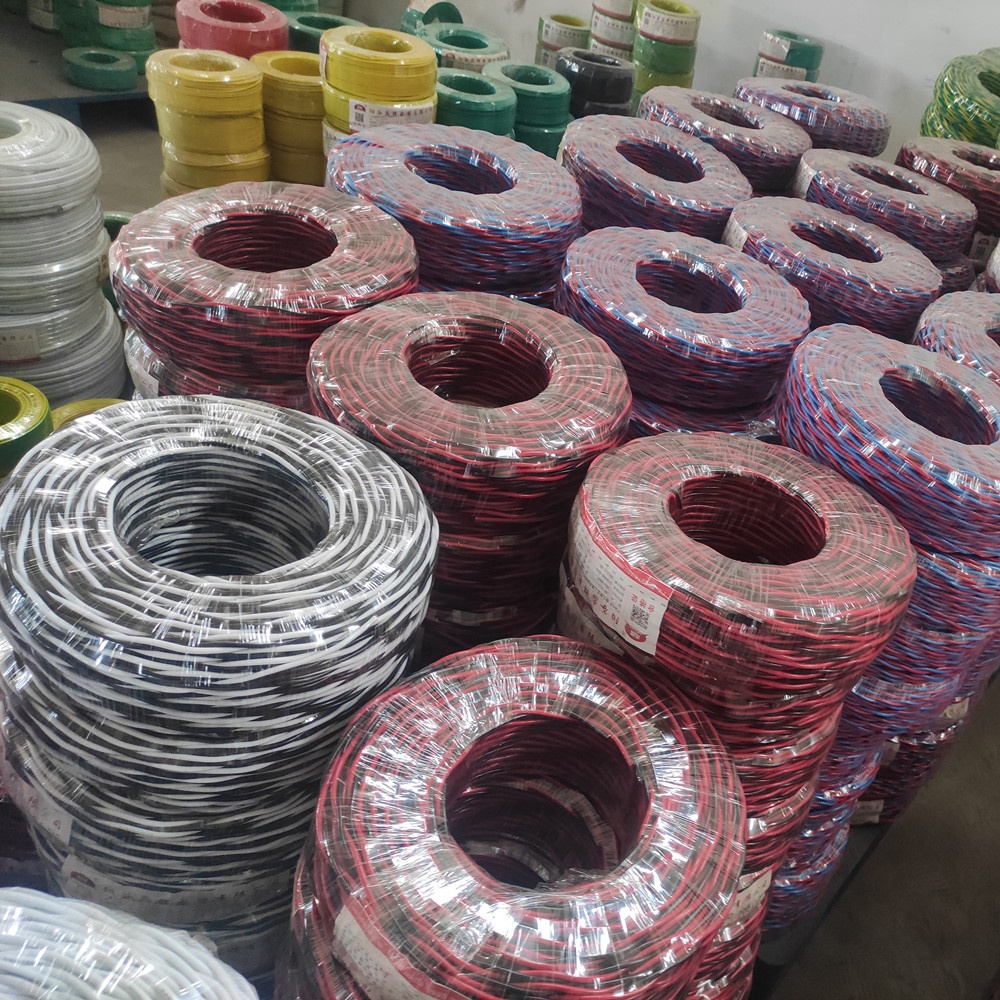

Workshop

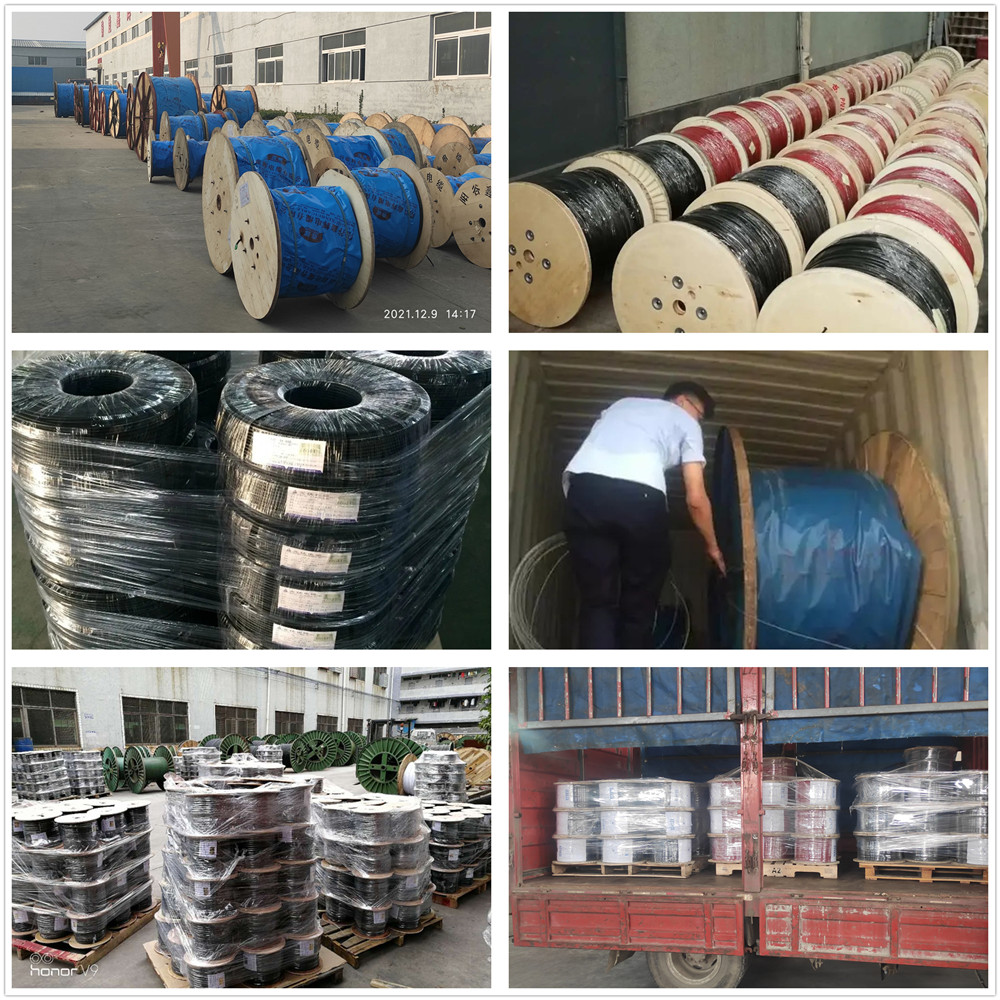

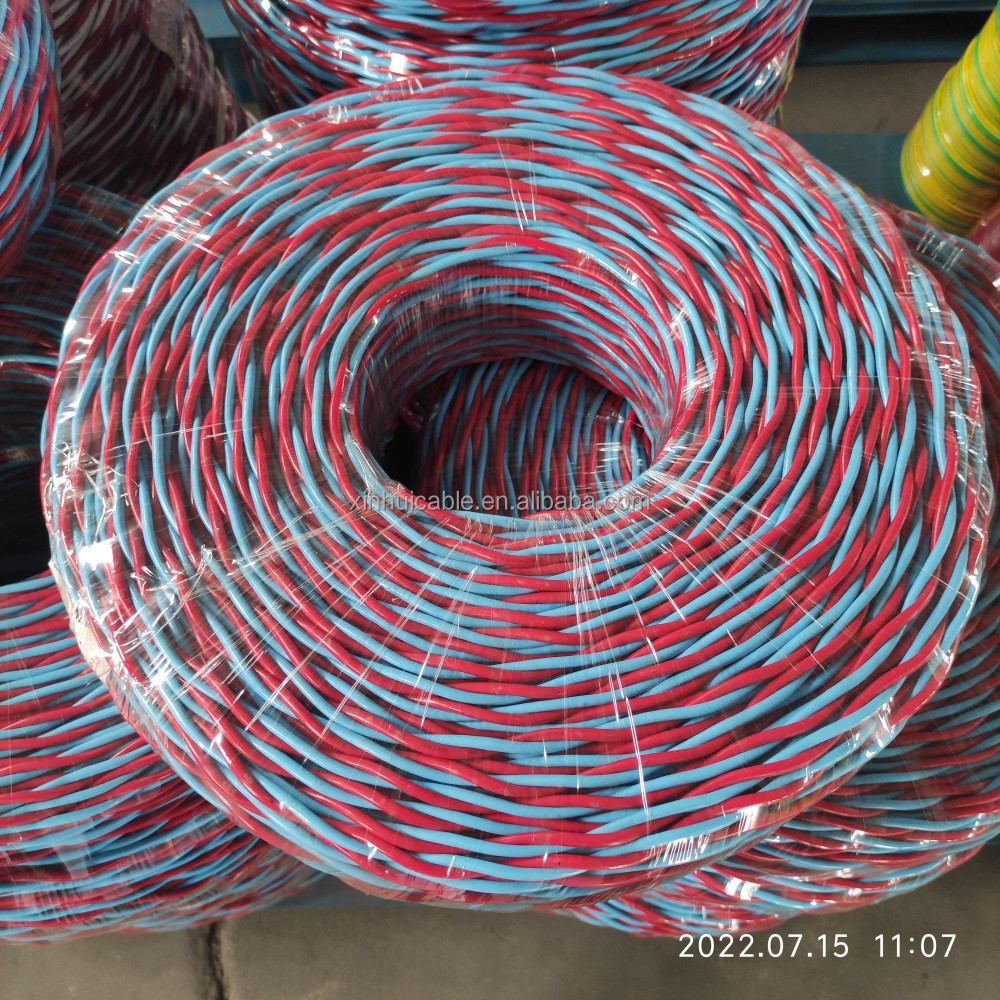

Product packaging
