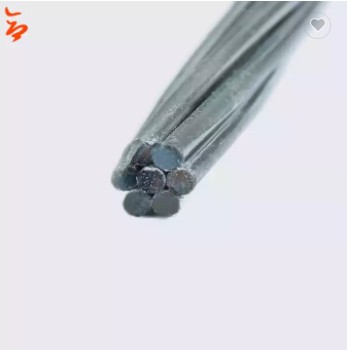

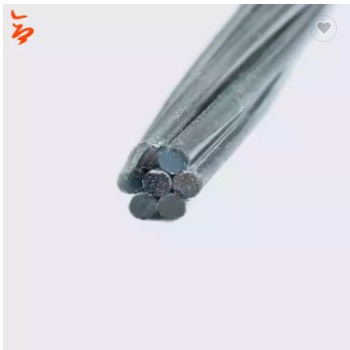

3/8 galvanized steel cable 7 h
| Price | ￥3.56/Piece |
| Min quantity | 10Piece |
| Quantity | 10000Piece |
Product Description
Our company founded in 2008, with own factory, have more business experience.
1 Pecifications
1.factory direct price
2.professional manufacturer with 10 years on guy wire strand
3.quick delivery
4.BS ,IEC .ASTM
2 Zinc-coated grade of guy wire : Class A and Class B
3 Galvanized guy wire /steel strand /ground wire
it is made of low ,mid & high carbon galvanized steel guy wire and steel strand wire
4 Galvanized guy wire /steel strand /ground wire/steel wire strand structure :
Diameter (7strands, 19 strands) :1.57mm-4.80mm
Number of Wires/Dia. | Approx.Strand Dia. | Siemens- Martin Grade | High Strength Grade | Extra-high Strength Grade | Approx.Weight | |
Inch | mm | kN | kN | kN | kg/km | |
3/2.64 7/32 | 5.56 | 10.409 | 15.569 | 21.796 | 131 | |
3/3.05 | 1/4 | 6.35 | 13.523 | 21.040 | 29.981 | 174 |
3/3.30 | 9/32 | 7.14 | 15.035 | 23.398 | 33.362 | 204 |
3/3.68 | 5/16 | 7.94 | 18.193 | 28.246 | 40.479 | 256 |
3/4.19 | 3/8 | 9.52 | 24.732 | 37.187 | 52.489 | 328 |
7/1.04 | 1/8 | 3.18 | 4.048 | 5.916 | 8.140 | 49 |
7/1.32 | 5/32 | 3.97 | 6.539 | 9.519 | 13.078 | 76 |
7/1.57 | 3/16 | 4.76 | 8.452 | 12.677 | 17.748 | 108 |
7/1.65 | 3/16 | 4.76 | - | - | - | 118 |
