Best selling The Factory Price AAC / AAAC / ACSR / ABC Aerial Bundled Electrical Cable

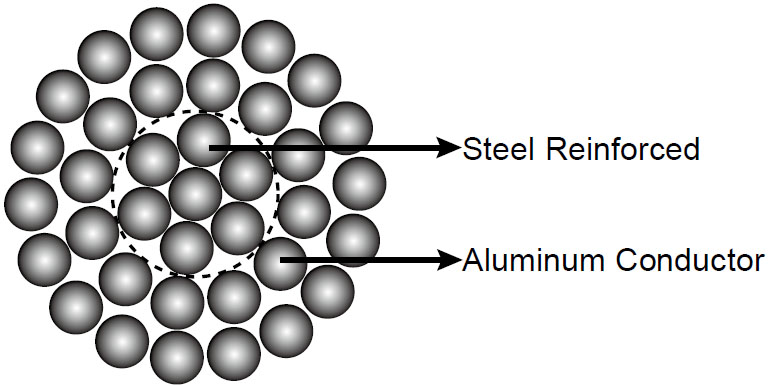

Aluminum Conductor Stell Reinforced

Application:

Used as bare overhead transmission conductor and as primary and secondary distribution conductor and messenger support.ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.

Quality:

Production accroding to ASTM-B232,BS215-2,and IEC60189,DIN48201.

Material:

Conductor:AL1350 pure aluminum

Steel core:G1A or G2A steel wire

               Galvanized steel reinforced

Working Conditions:

Ambient temperature:Above -20°C

Working temperature:Not exceed 80°C

Laying bending radius:Not less than 30 times the cables outer diameter

Standards:

ASTM-B232    Standard specification for Concentric-Lay-Stranded Aluminum 1350 Conductors

BS215-2          Aluminium conductors steel-reinforced —For overhead power transmission

DIN48204        Steel reinforced aluminum stranded conductors

IEC209            Aluminum stranded conductor steel reinforced

Customized type available.

ACSR Process

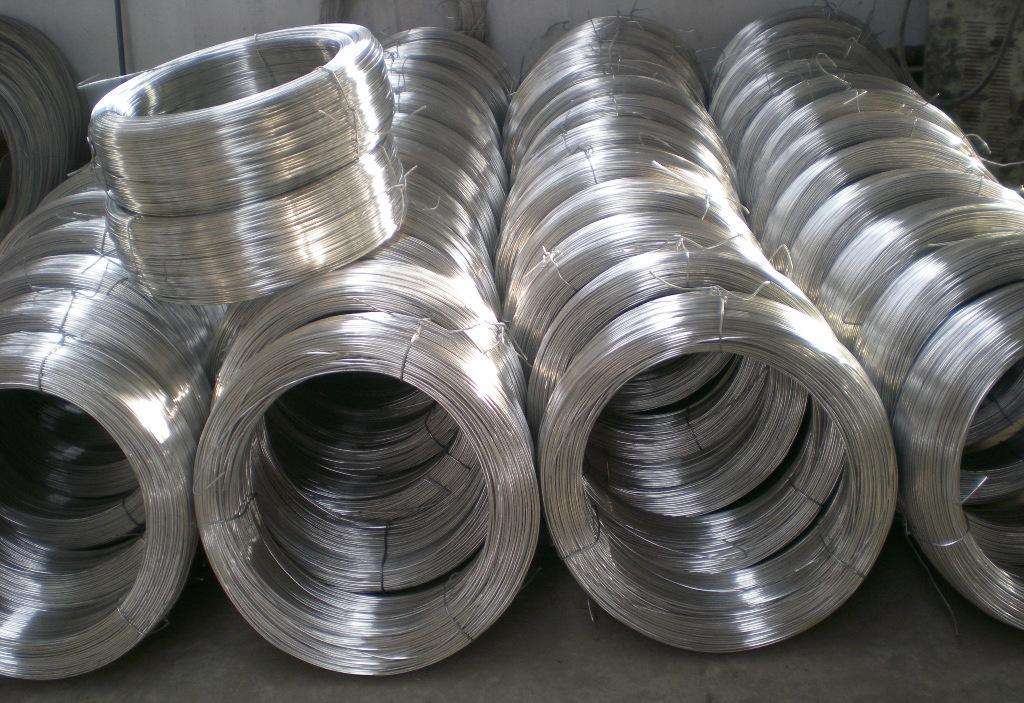

Raw Material

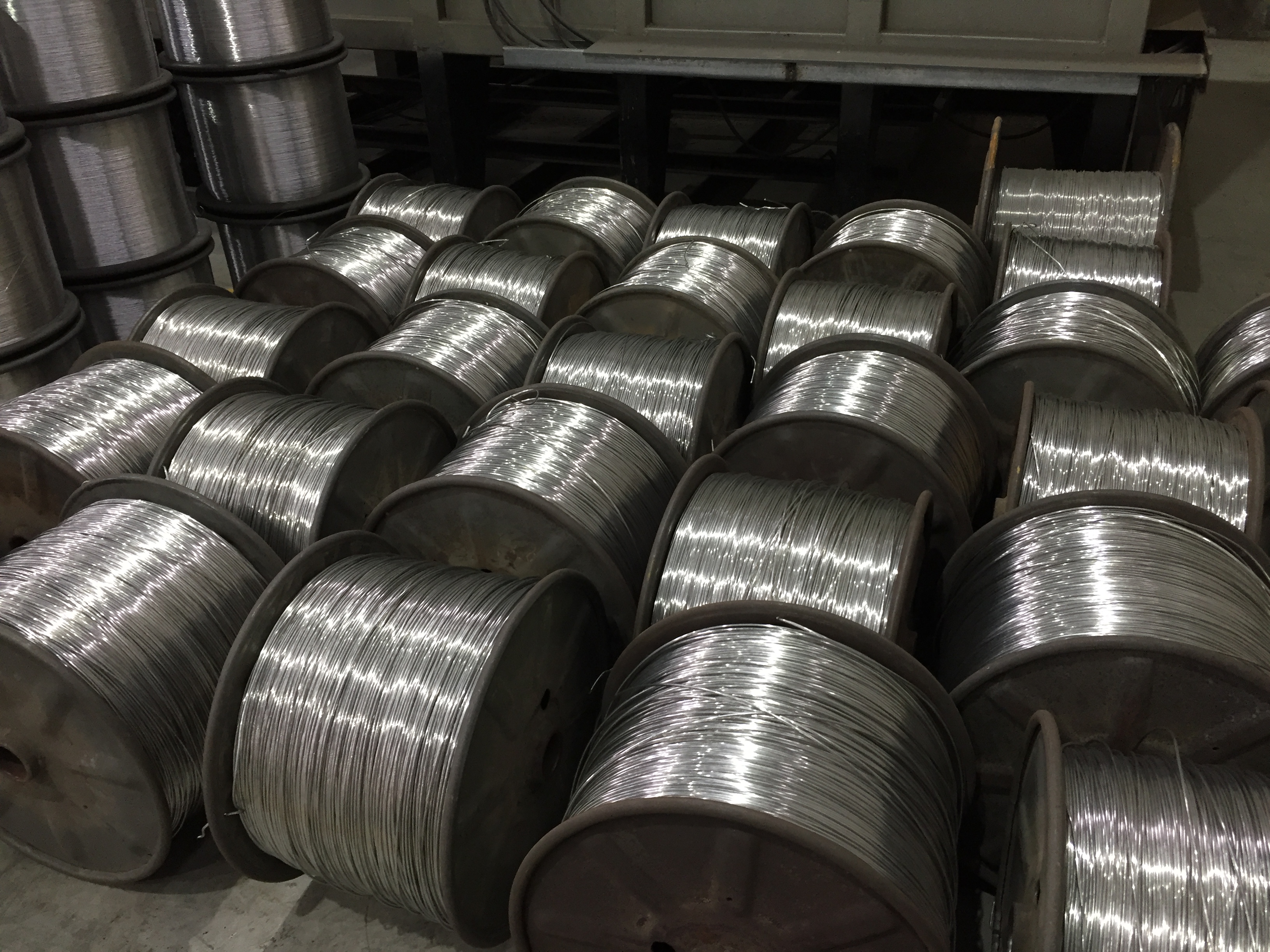

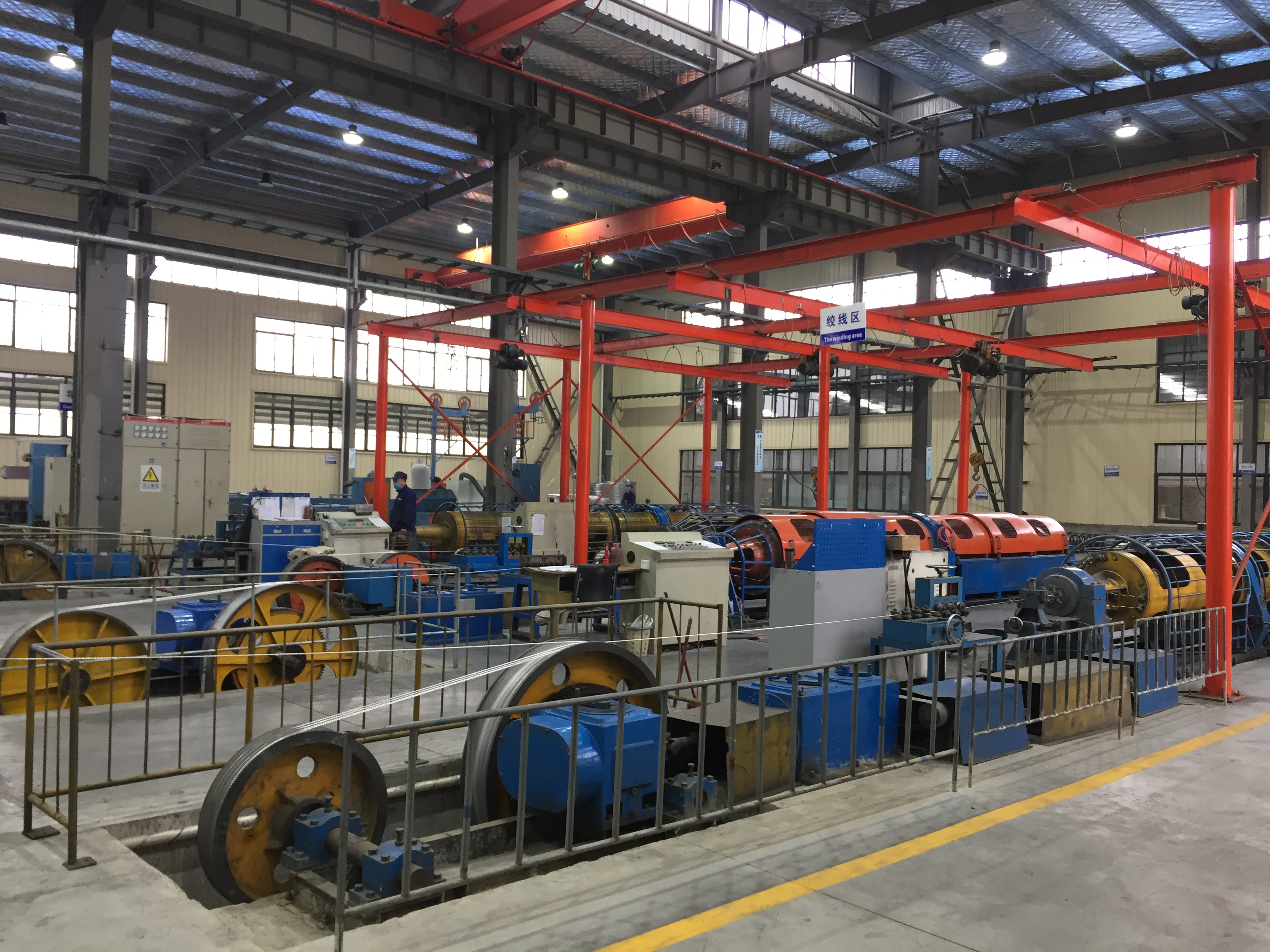

Stranding process
