Normally open 0.2-30A buzzer alarm sensor LED indicator Motor load controller AC current switch rela

Overview

Essential details

• Place of Origin:

• Guangdong, China

• Brand Name:

• fearlie

• Model Number:

• M3050

• Warranty:

• 3years

• Type:

• current switch, M3050

• Certification:

• ul ce rohs

• Voltage:

• 240V

• Customized:

• Yes

• Sensing Range:

• 0.2-30A

• Whether the smart:

• Yes

• Product name:

• AC current switch

• Material:

• ABS Shell

• voltage:

• 240V

• Function:

• Control the disconnection or connection of current

• Color:

• Black

• Size:

• 65*25*47(MM)

Supply Ability

• Supply Ability

• 20000 Piece/Pieces per Year

Packaging & delivery

• Packaging Details

It is packed in a crash bag and then put into a cardboard box

• Port

shenzhen/guangzhou/foshan

• Picture Example:

•



• Lead time:

• Quantity(pieces)	1 - 100	>100
  Lead time (days)	3	To be negotiated

Normally open 0.2-30A buzzer alarm LED indicator Fearlir brand AC Motor load controller AC CURRENT SENSOR

Feature:

1. Self-powered(no external power supply required) 2. Input current 0.2-30A AC, adjustable with a potentiometer. 3. LED indicator can conveniently and intuitively indicate the working status of the switch. 4. High-power MOS tube contactless electronic switch. 5. The switch has no limit on the number of opening and closing, and the reaction speed reaches the ms level. 6. Straight-through structure design, isolation withstand voltage up to 2000V. 7. Hysteresis is less than 1% and can be used under strong magnetic conditions. 8. Suitable for AC current measurement and monitoring, AC motor overload protection, electronic switch of automatic      control system and so on.

Advantage:

> Mutual inductance current monitoring, safe isolation of input and output > The monitored current range is within 30A, and the monitoring setpoint can be set at any point within this range. > Non-contact electronic switch, fast response speed, no limit on the number of turn on-turn offs. > The shell is made of fireproof material ABS.

PRODUCT SPECIFICATIONS

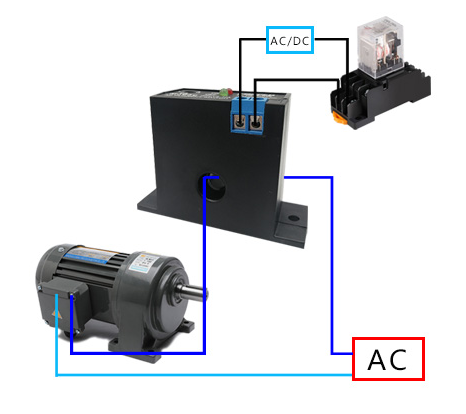

WIRING DIAGRAM

Wiring explained:

Input:0.2-30A

Output rating：0.3A@240V AC/DC

Normally open:

When the current through the perforated line is greater than the set value, the output terminal is connected When the current through the perforated line is less than the set value, the output terminal is disconnected

Normally closed:

When the current through the perforated line is greater than the set value, the output terminal is disconnected When the current through the perforated line is less than the set value, the output terminal is connected

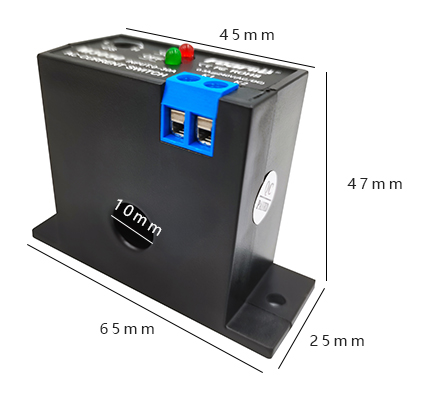

Dimensions:65*25*47MM

Application examples： 1. linkage switch between two devices
2. Whether the monitoring equipment is working properly
3. Send a witch signal to PLC
4. Give the switch signal when the current is overloaded

Product characteristics

Characteristics:

> Mutual inductance current monitoring,  safe isolation of input and output,
self-powered (passive) > The monitored current range is within 30A,
and the monitoring setpoint can be set at
any point within this range.
> Hysteresis<1%, can be used in a strong
magnetic environment.
> Non-contact electronic switch,
fast response speed,
no limit on the number of on-offs.
> The shell is made of fireproof material ABS.

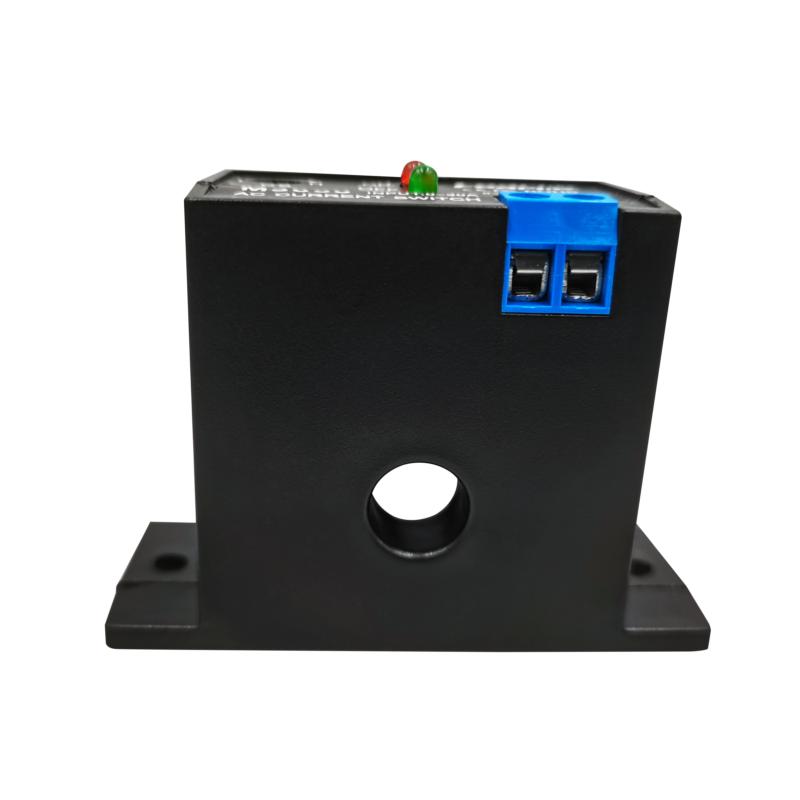

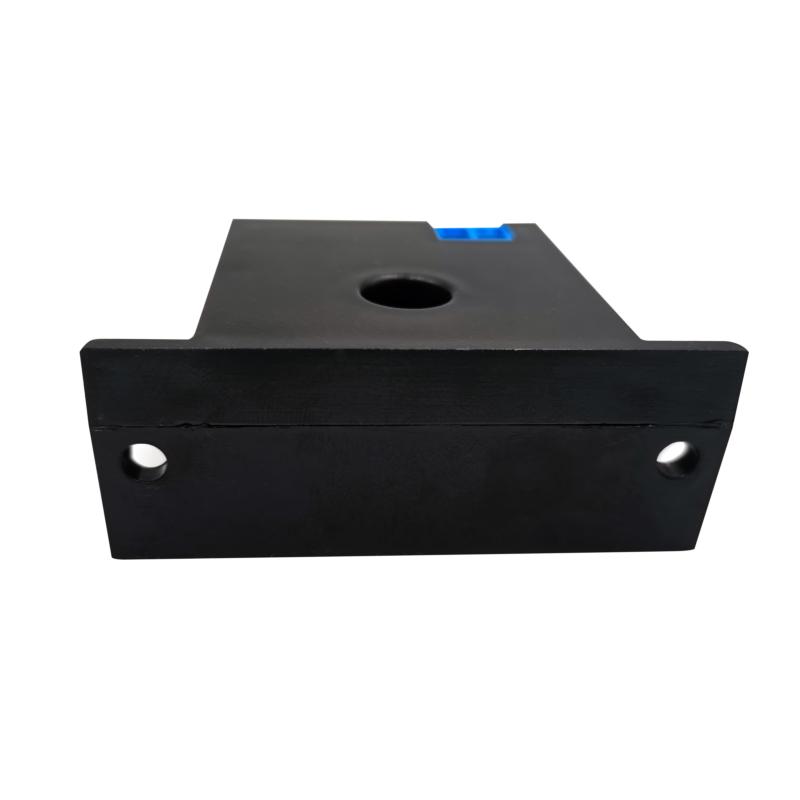

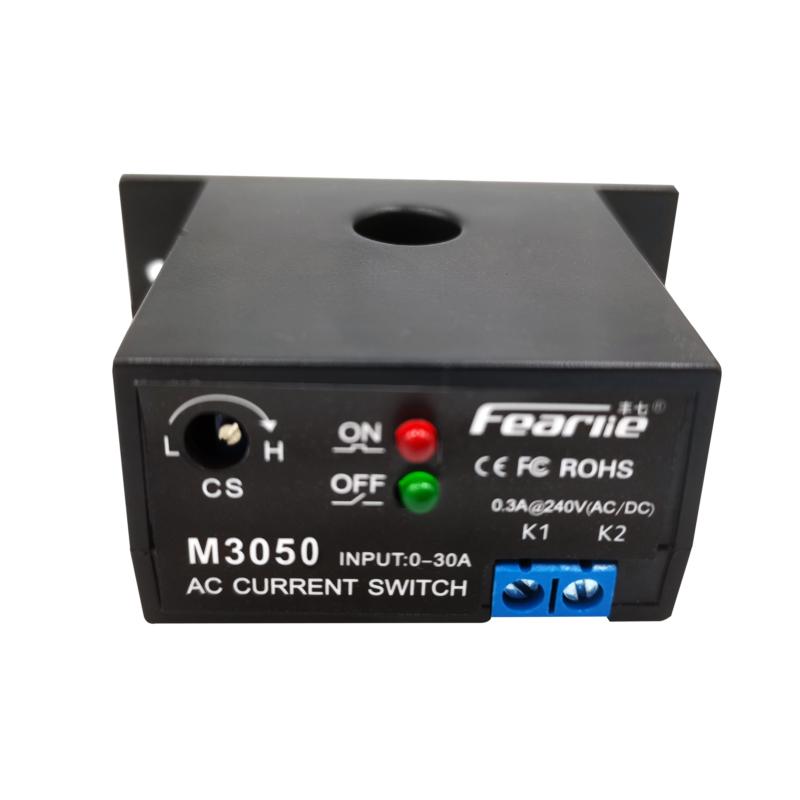

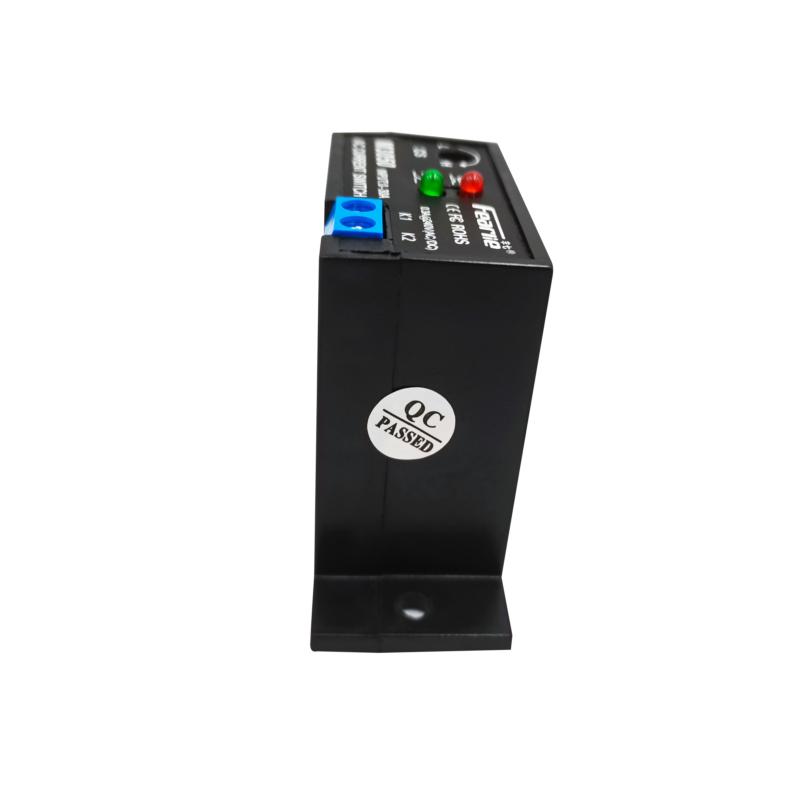

                                               PRODUCT SHOW
