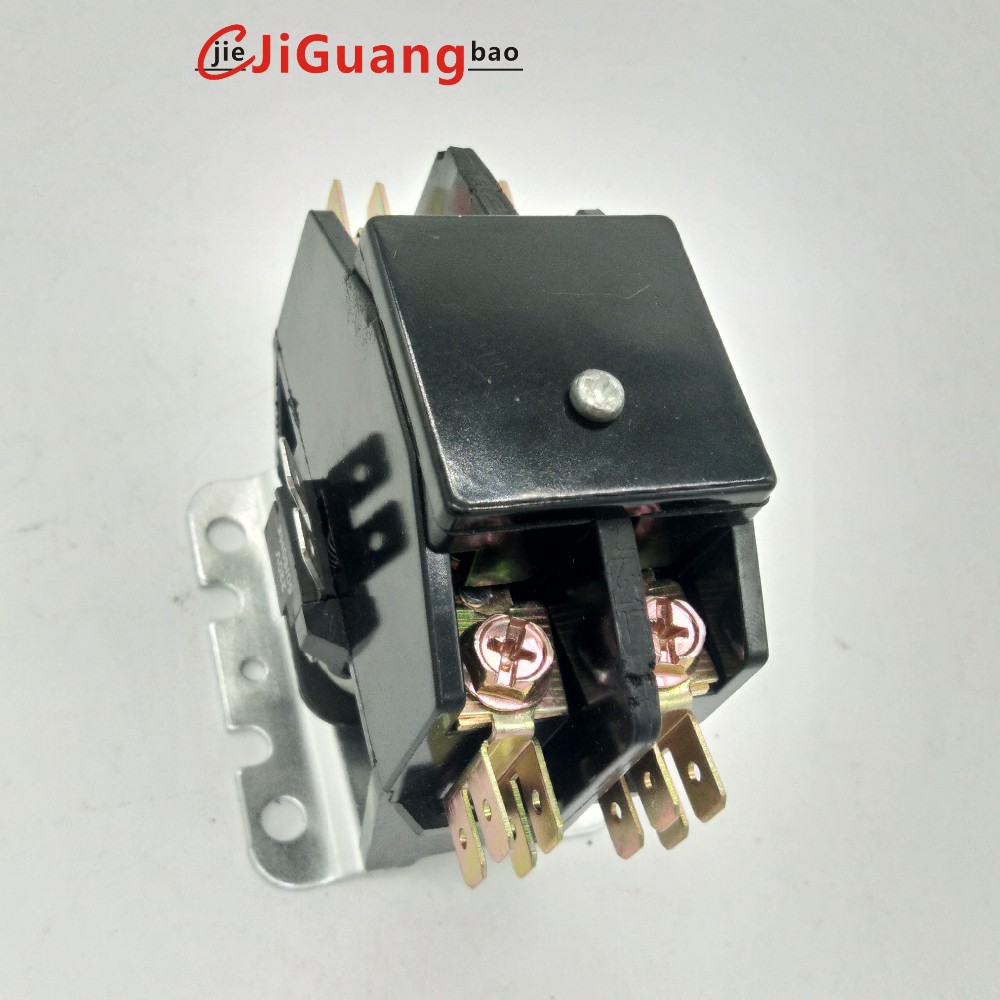

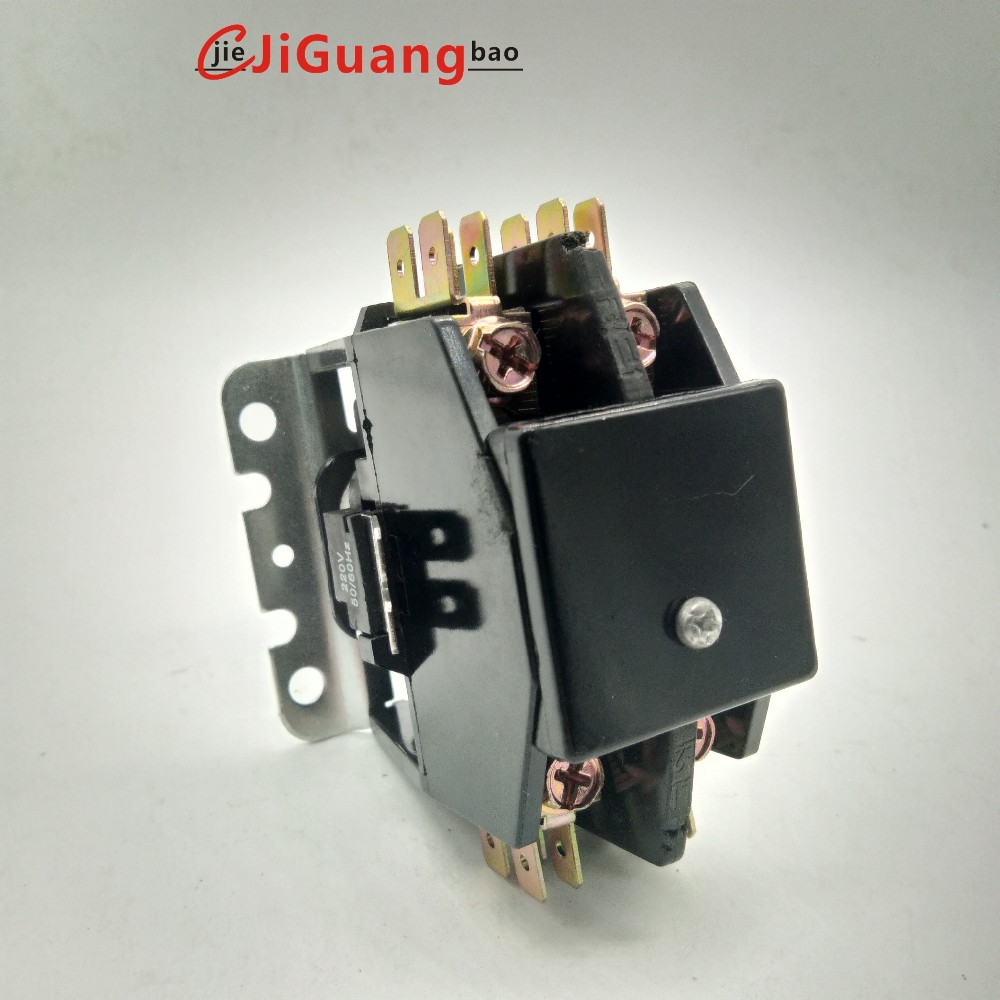

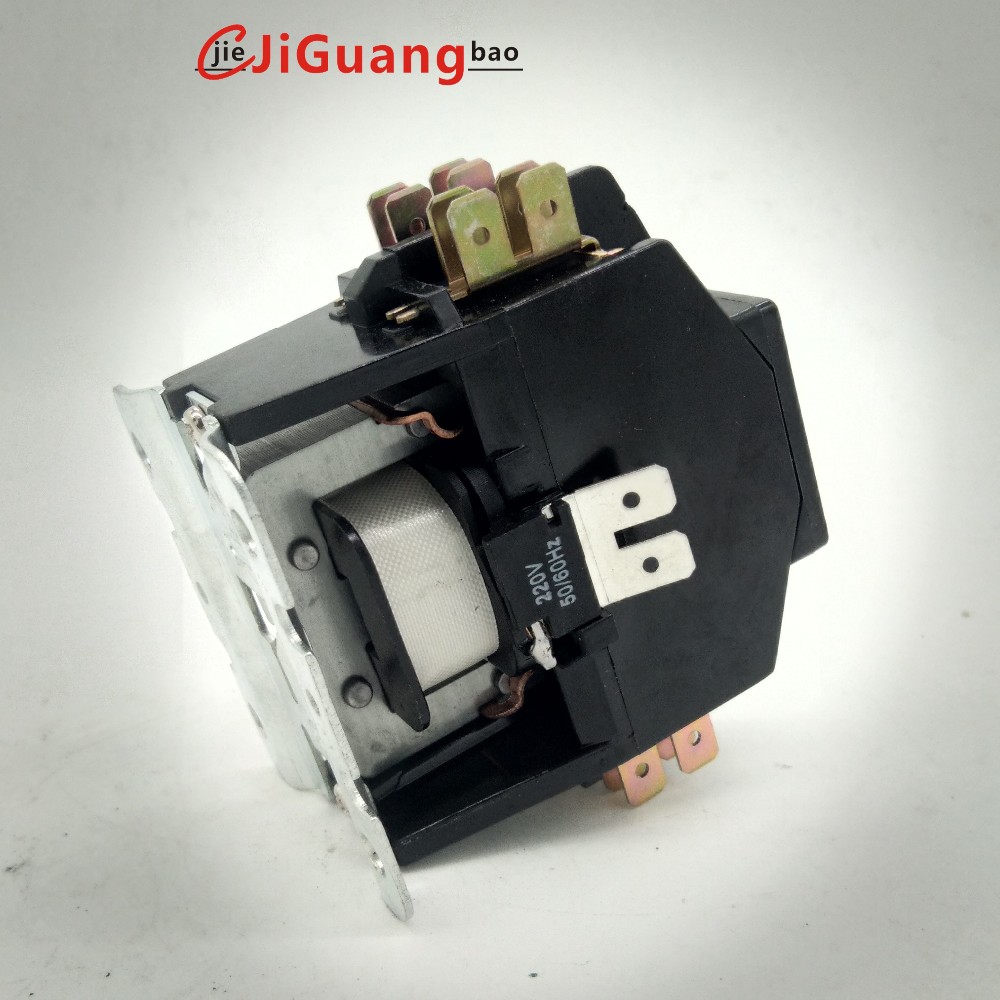

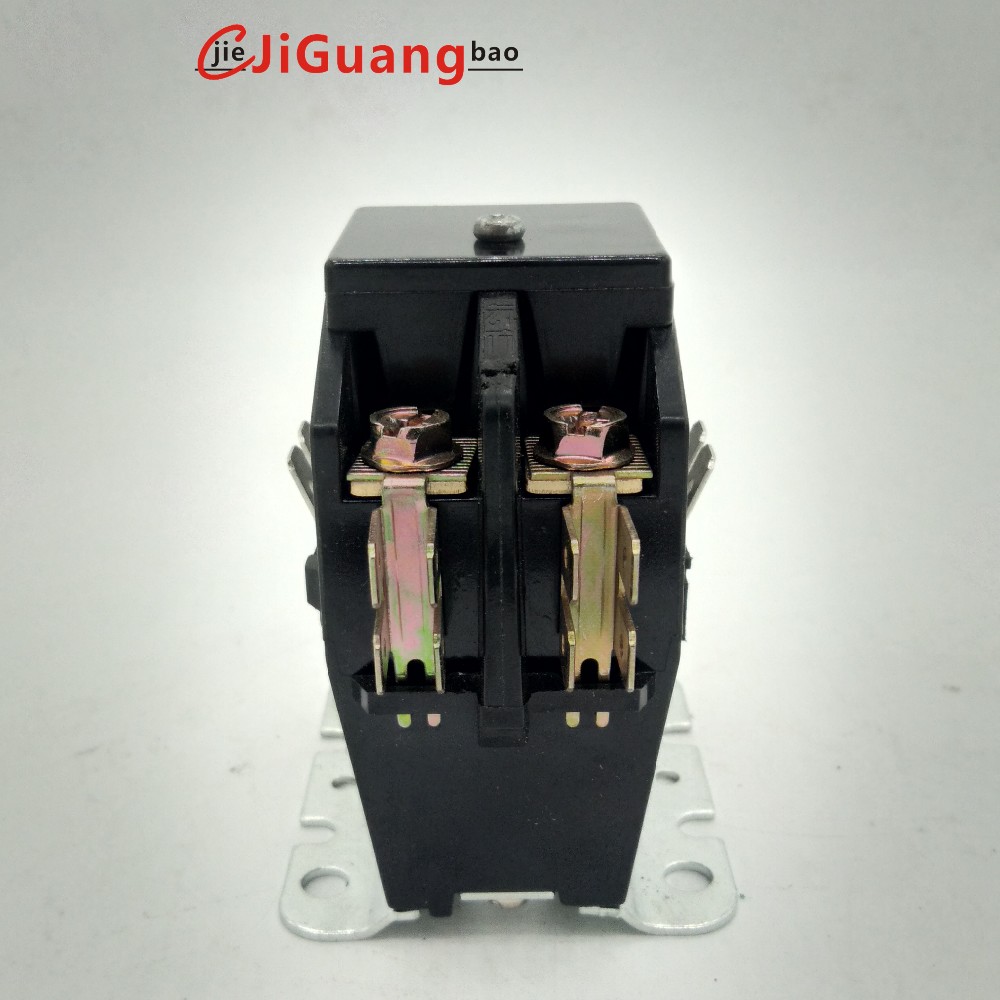

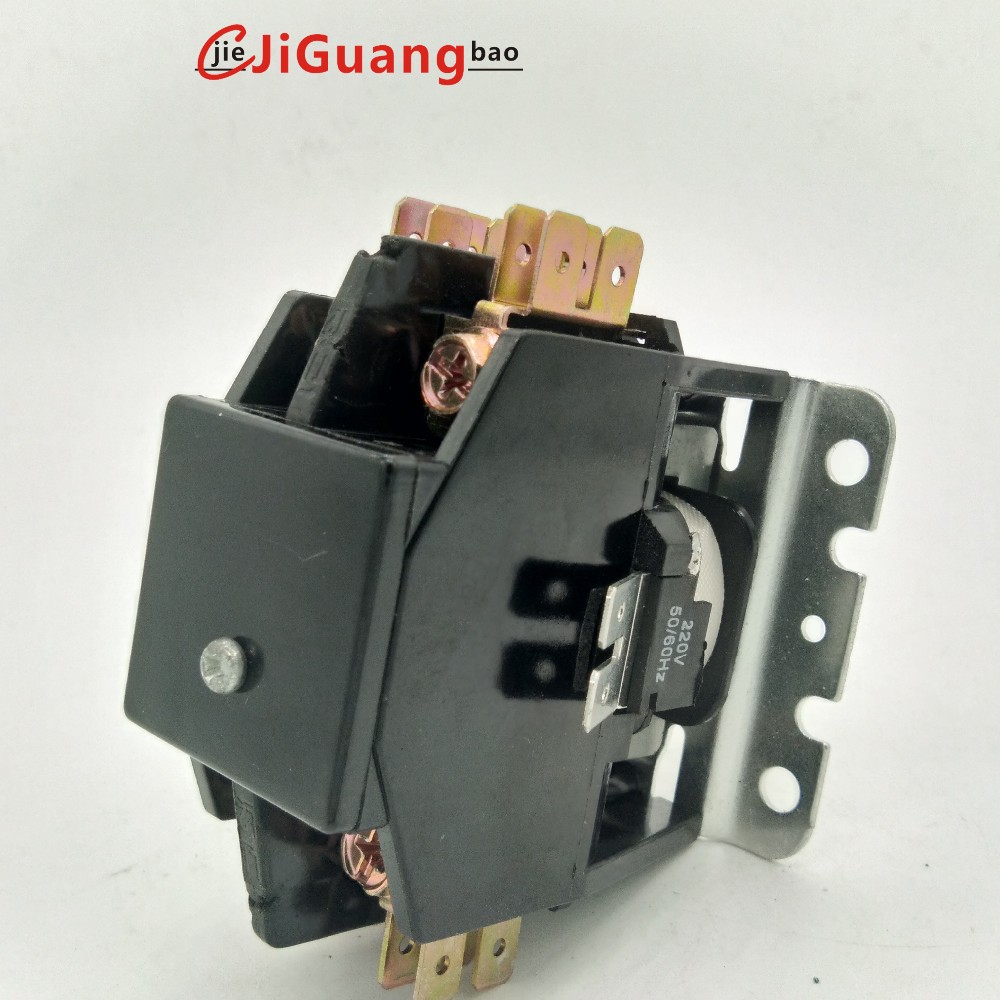

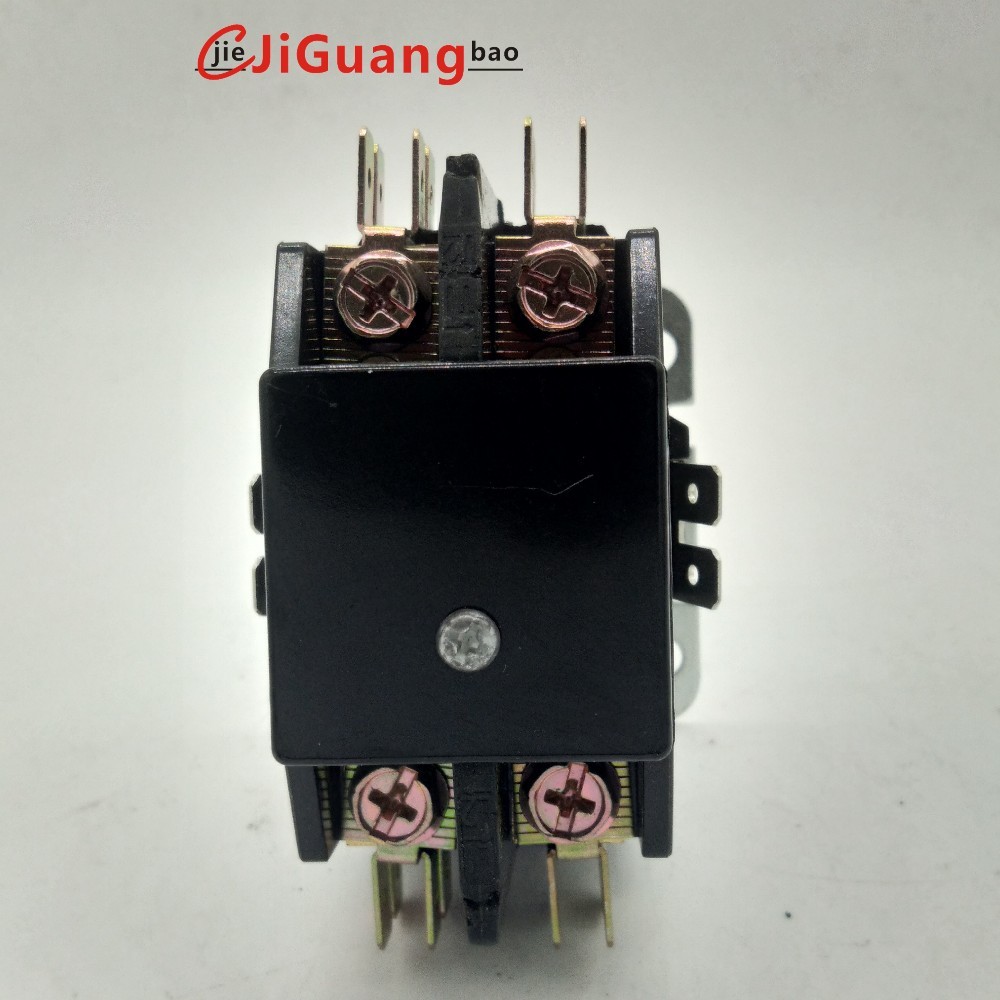

2P 30A 40A ac contactors magnetic ac contactor 220v
| Price | ￥19.89/Piece |
| Min quantity | 10Piece |
| Quantity | 10000Piece |
The product will
Product attributes
Coil Voltage 50/60Hz | Full load amps | Line voltage | Locked rotor amps | Resistive amps rating | Maximum horsepower | Approx unit weight | ||
Voltage | Single phase | Three phase | ||||||
20FLA | ||||||||
24 110/120 208/240 277 | 20 | 240/277 480 600 | 120 100 80 | 30 30 30 | 120 240 | 2 3 | 6 lb .27kg | |
25FLA | ||||||||
24 110/120 208/240 277 | 25 | 240/277 480 600 | 150 125 100 | 35 35 35 | 120 240 | 2 3 | 6 lb .27kg | |
30FLA | ||||||||
24 24 110/120 110/120 208/240 208/240 277 | 30 | 240/277 480 600 | 180 150 120 | 40 40 40 | 120 240 | 2 3 | 6 lb .27kg | |
40FLA | ||||||||
24 24 110/120 110/120 208/240 208/240 277 | 40 | 240/277 480 600 | 240 200 160 | 50 50 50 | 110/120 200/208 240/277 480 600 | - 10 10 20 25 | 1 lb .45kg | |

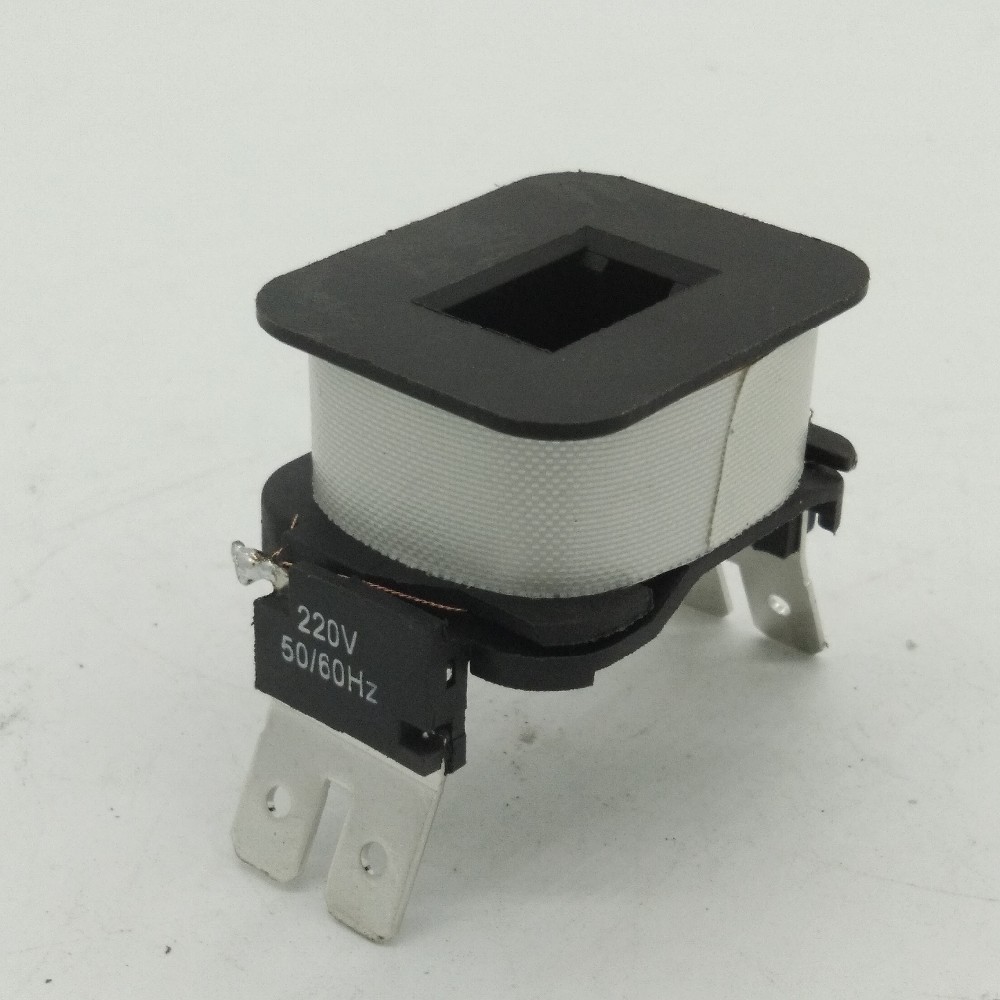

COIL TECHNICAL DATA 50/60Hz | |||||
Nominal Coil Voltage | 24 | 120 | 208/240 | 277 | |
Maximum Pickup Voltas | 18 | 88 | 177 | 221 | |
Drop-Out Volts Range | 6-15 | 20-70 | 40-140 | 50-165 | |
Nominal lnrush VA@50Hz | 31 | 31 | 35 | 31 | |
Nominal lnrush VA@60Hz | 28 | 28 | 32 | 28 | |
Nominal Sealed VA@50Hz | 6 | 6 | 7 | 6 | |
Nominal Sealed VA@60Hz | 5 | 5 | 6 | 5 | |
Nominal DC Resistance-Ohmse | 17.5 | 450 | 1800 | 2252 | |
Maximum Coil Voltage | |||||
