Long using life CHINT MCCB CHNT NXB-125 63A-125A Moulded Case Circuit Breakers for home lighting,sol

Overview

Essential details

• Place of Origin:

• Zhejiang, China

• Brand Name:

• CHINT

• Model Number:

• NXB-125

• Breaking Capacity:

• 10KA

• Rated Voltage:

• 230V/400V

• Rated Current:

• 63A/80A/100A/125A

• BCD Curve:

• C/D

• Type:

• MCCB

• Rated Frequency (Hz):

• 50Hz

• Number of Pole:

• 4

• Protection:

• Other

• Condition:

• 100% New and Original

Packaging & delivery

• Selling Units:

• Single item

• Single package size:

• 40X30X30 cm

• Single gross weight:

• 10.000 kg

• Package Type:

• Standard Carton

• Picture Example:

•



• Lead time:

• Quantity(sets)	1 - 60	61 - 100	>100
  Lead time (days)	7	15	To be negotiated

Product Description

NXB-125 Moulded case circuit breaker

1. Compliant standards

IEC60947-2

2. Compliant certification

CE

3. Major function

Overload protection, short circuit protection, positive isolation

4. Technical parameters

Rated current: 63A, 80A, 100A, 125A; Rated voltage: 240V ~ (1P), 415V ~ (2P, 3P, 4P); Frequency: 50Hz; Electromagnetic release
type: C, D; Number of poles: 1P, 2P, 3P, 4P; Mechanical life: 20000 cycles; Electrical life: 6000 cycles (In≤100A); 4000 cycles
(In＞100A); Rated short-circuit breaking capacity(Icu): 10000A; Short-circuit breaking capacity(Ics): 7500A; Rated impulse
withstand voltage(Uimp): 4kV;

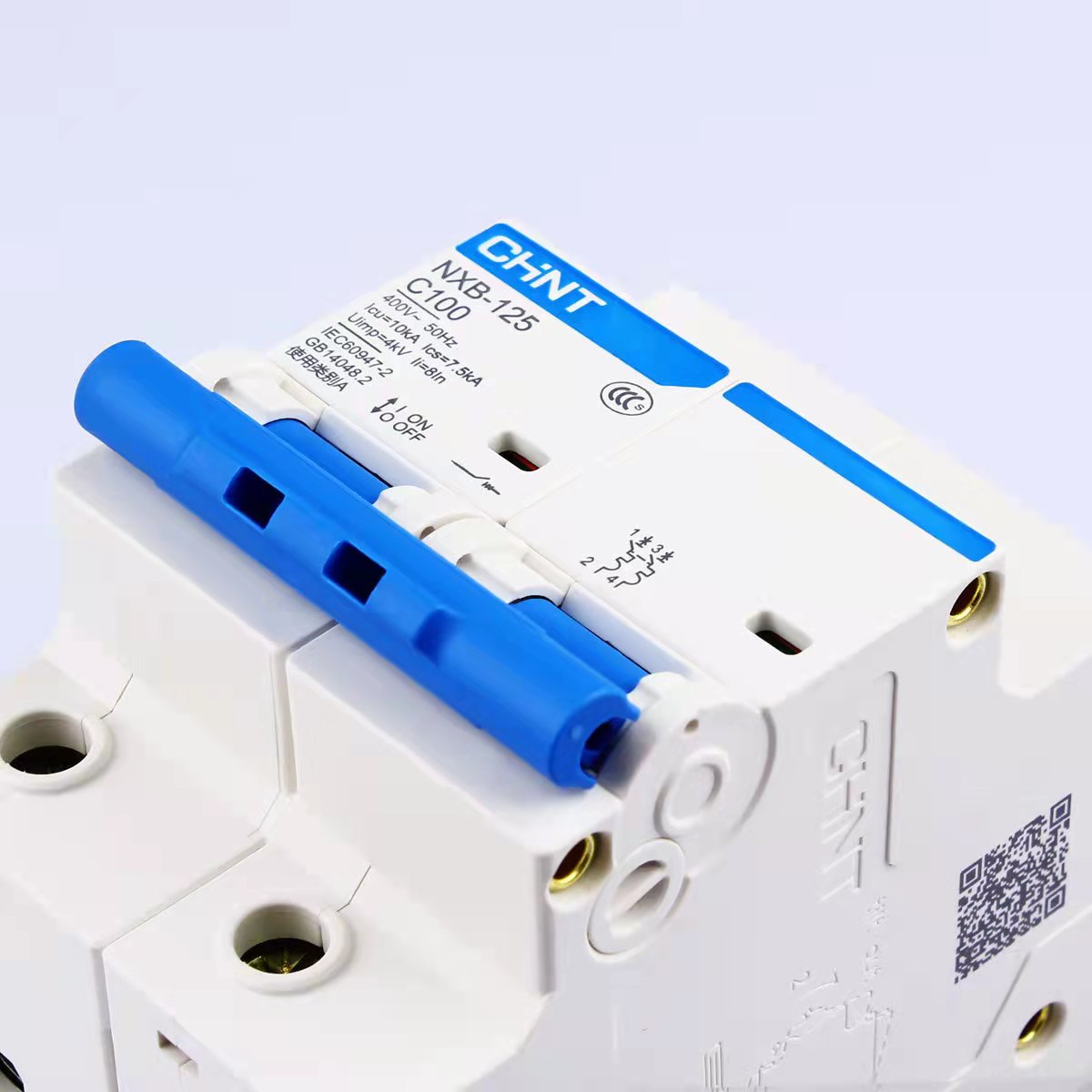

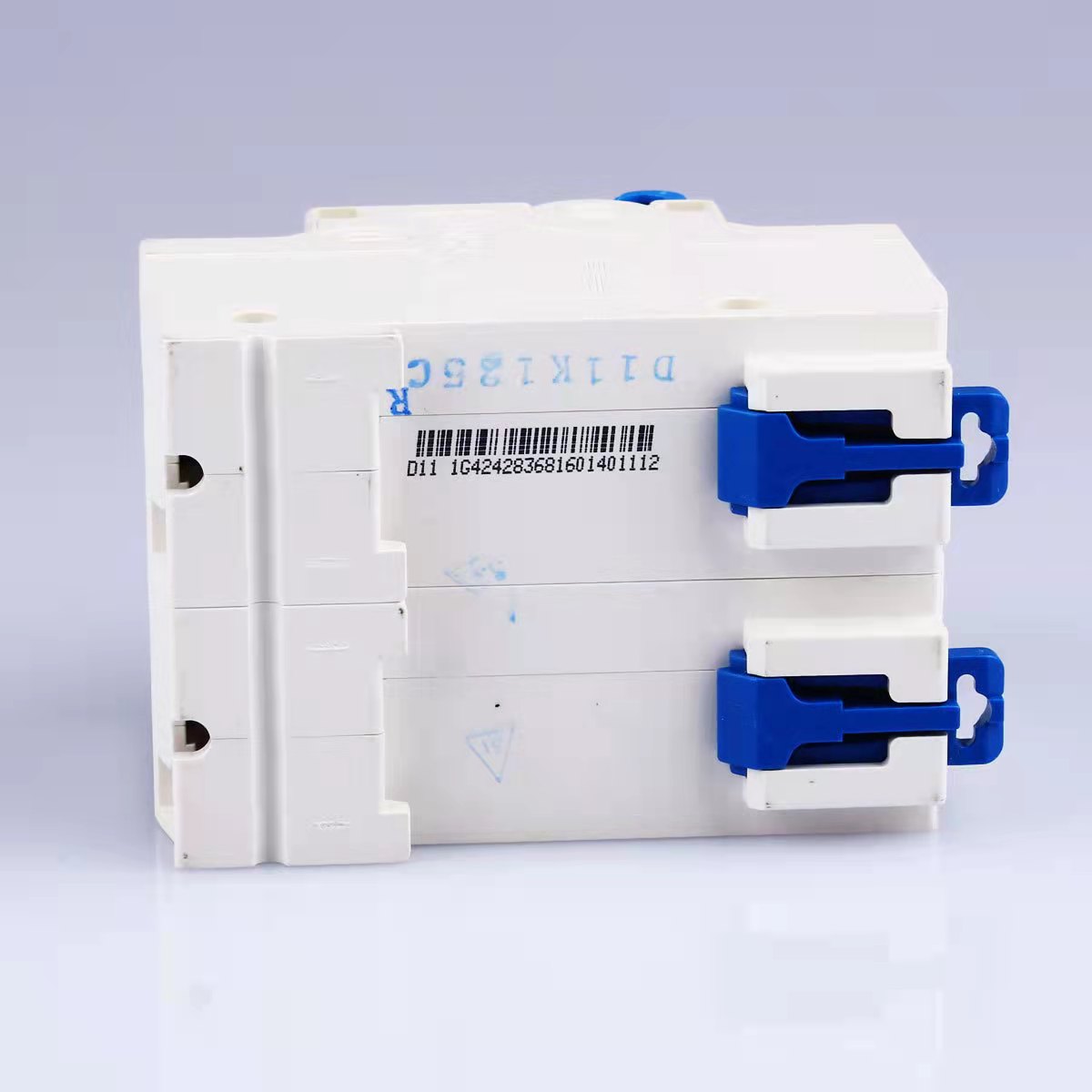

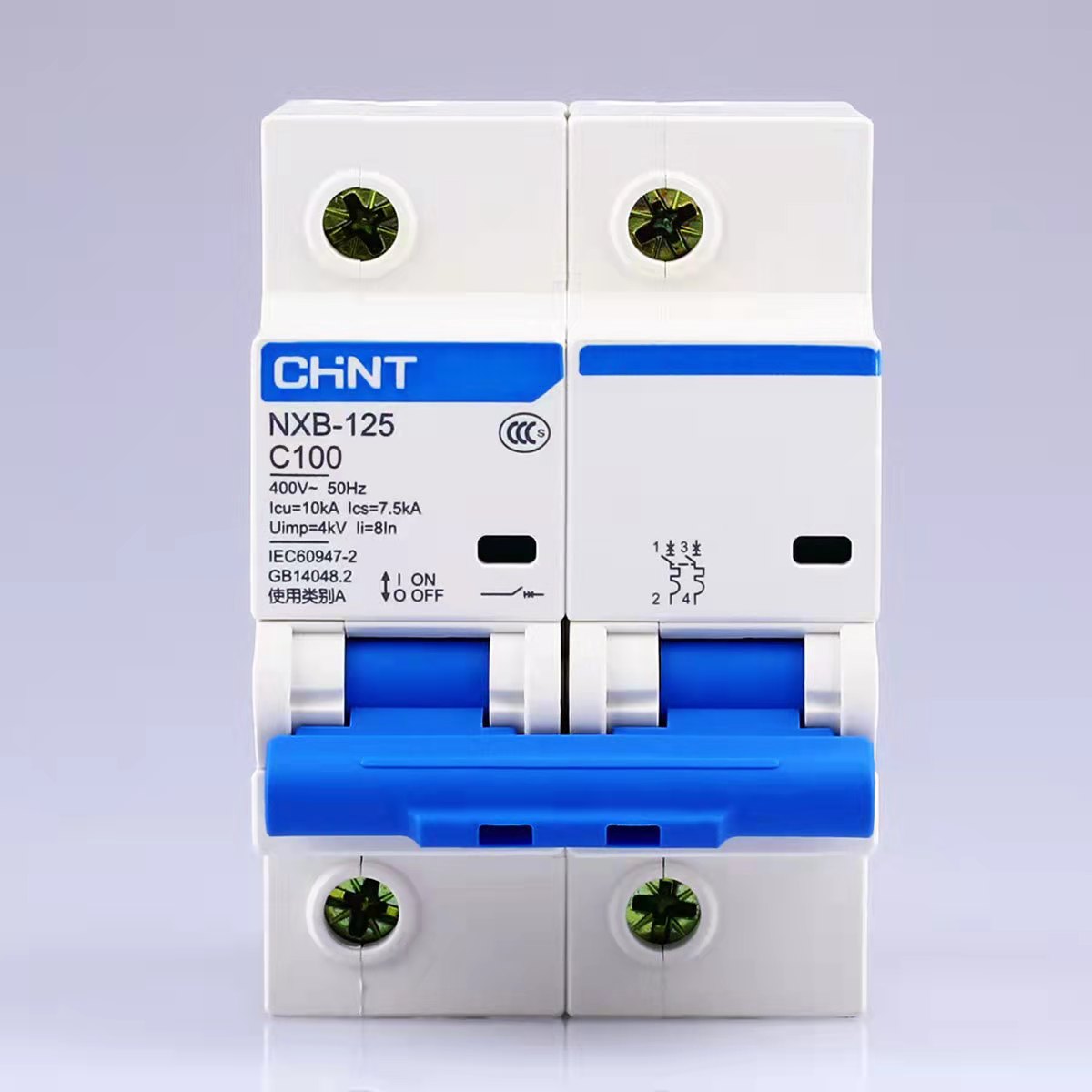

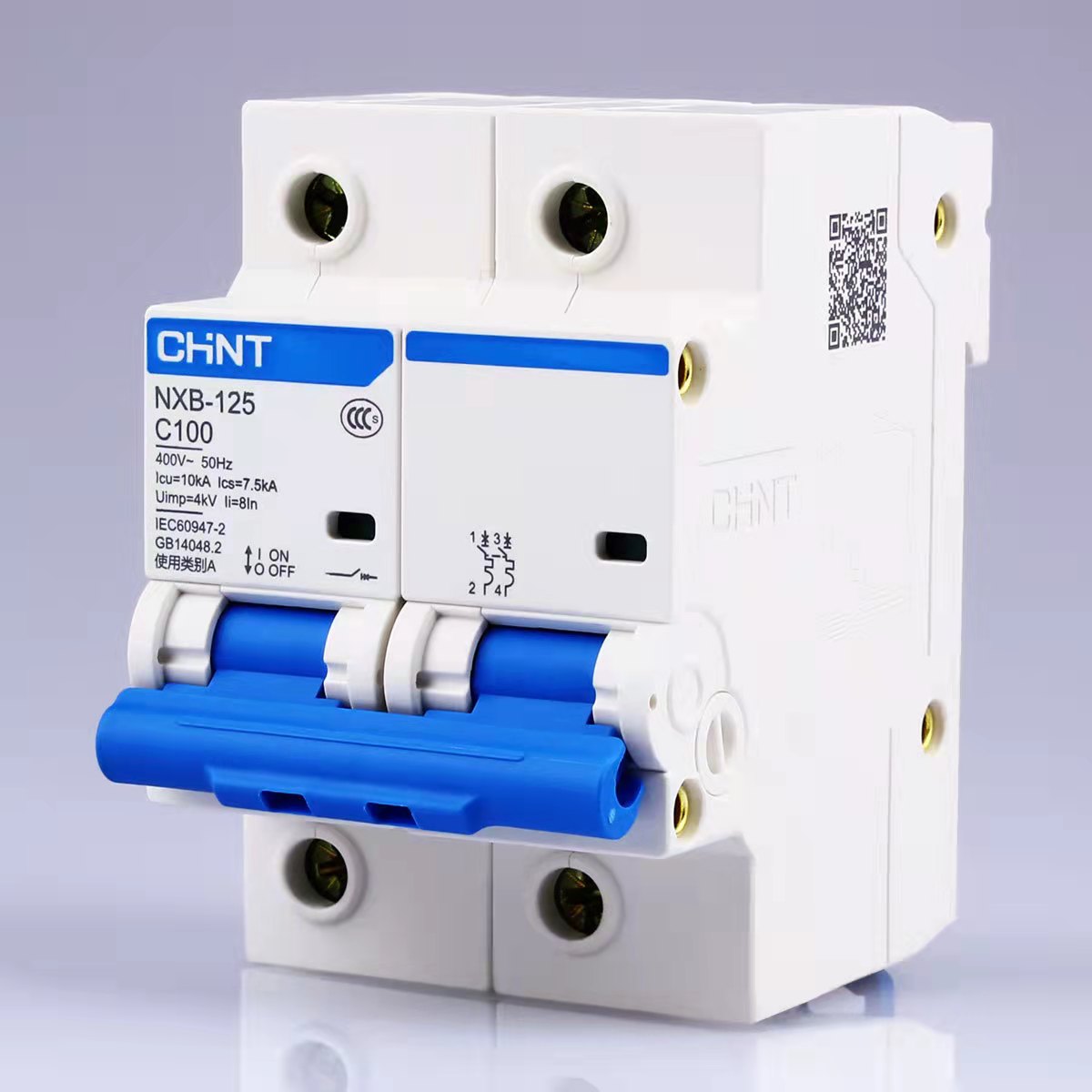

Detail Images
