single phase din rail mini digital kwh electric meter electricity meter power energy meter with rs48

Overview

Essential details

• Place of Origin:

• Zhejiang, China

• Brand Name:

• YOMIN

• Model Number:

• YEM015SD

• Display Type:

• Digital Only

• Phase:

• Single Phase

• Measuring Energy Range:

• 5(100)A

• Accuracy Class:

• class 1

• Output Voltage:

• 127,230

• Operating Temperature:

• -20℃~70℃

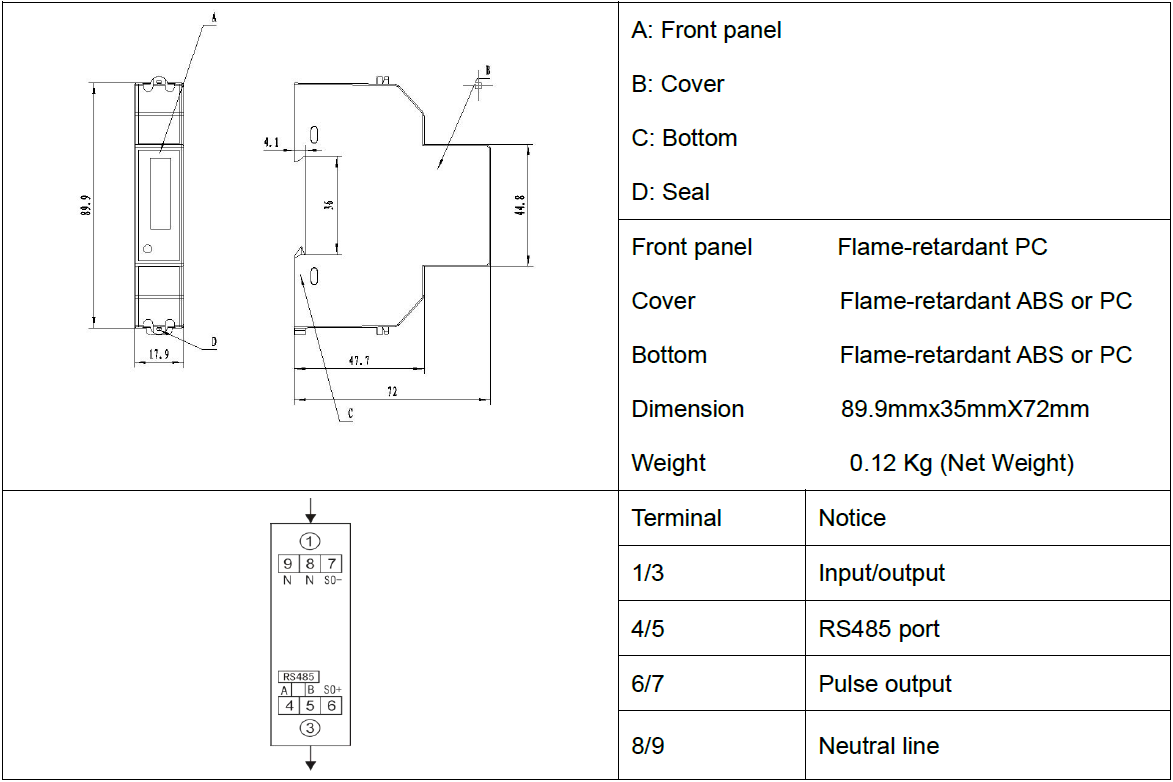

• Dimensions:

• 17.9x72x89.9mm

• installation:

• 35mm standard DIN rail

• Connection Mode:

• Directly

• Rated Current:

• 5(100A)

• Certificate:

• CE RoHS

• Starting Current:

• 0.02A

• Material of case:

• PC (Poly Carbonate)

• Color:

• White

• Frequency:

• 50HZ/60HZ

• Logo:

• Laser Engrave or Print

• Type:

• RS485

Packaging & delivery

• Selling Units:

• Single item

• Single package size:

• 10X2X7.5 cm

• Single gross weight:

• 0.100 kg

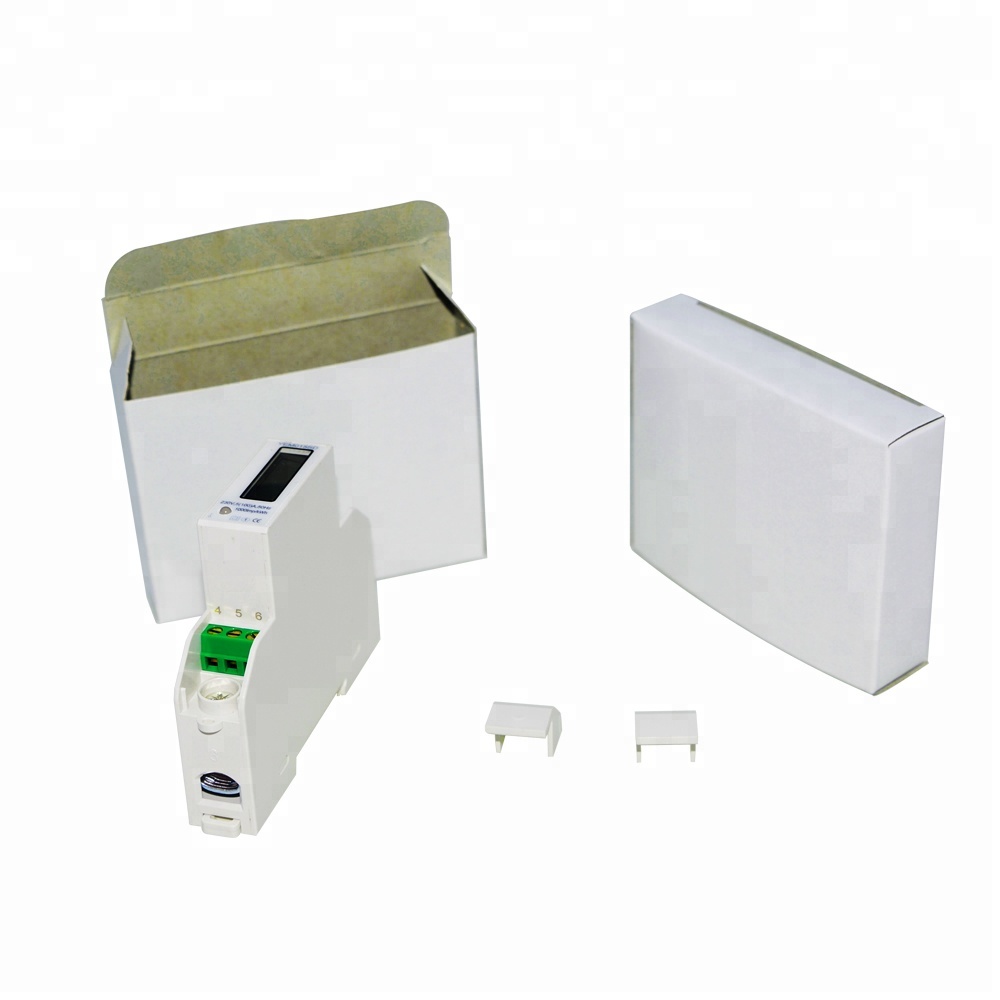

• Package Type:

• One energy meter in a small box, ten small boxes in a large box.
  The outer package is covered with bubble wrap.

  Please state the voltage and frequency you need for the order.For instance:220V/50HZ

• Picture Example:

•



• Lead time:

• Quantity(pieces)	1 - 100	>100
  Lead time (days)	5	To be negotiated

Video Description

00:00

00:45

single phase din rail mini digital kwh electric meter electricity meter power energy meter with rs485

Model YEM015SD single phase electronic DIN rail active energy meter is a kind of new style single phase two wire active energy meter, it adopts micro-electronics technique and imported large scale integrate circuit, and uses advanced technique of digital and SMT techniques, etc. It has its completely independent intellectual property rights and minimum size. The meter completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurately and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net. This meter has white backlight source eight digits LCD displays shows the active energy consumption. It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.

Environmental Indicators:

Technical Parameters and Display Type:

LCD Display:
1st Screen displays ID address                     Add                        001
2nd Screen displays baud rate                       bd                          9600
3rd Screen displays constant                       CoSE                      1000imp

The fourth screen keeps displaying:
4th Screen displays the total amount of electricity          000000.00           kWh

 Intrinsic Error:
Single phase balanced load
0.05Ib                       Cosφ = 1 ±1.5%
0.1Ib                         Cosφ = 0.5L ±1.5%
                                 Cosφ = 0.8C ±1.5%
0.1Ib - Imax               Cosφ = 1 ±1.0%
0.2Ib - Imax               Cosφ = 0.5L ±1.0%
                                 Cosφ = 0.8C ±1.0%

Technical parameters

1 Where is your factory?

Our factory is located in Qiaoqian Industry Area, Liushi Town, Yueqing City, Zhejiang Province, 325603 China.

2 Are you manufacturer or business?

We are manufacturer established in 2002, and have over 16 years production experience.

3. Can I ask for samples?

Yes

4. What's the warranty of your products?

18 months

5. What's the lead time?

Depend on the quantity and model of the order, normally it takes around 2-3 days, but the exact lead time should be discussed  with our sales.

6. How about the MOQ, Payment term, Delivery port, and shipping date?

1)MOQ: 100 pcs/item based on existing packing.

2)T/T-30% deposit and 70% against copy of BL

3)L/C is also acceptable

4)Ningbo/Shanghai
