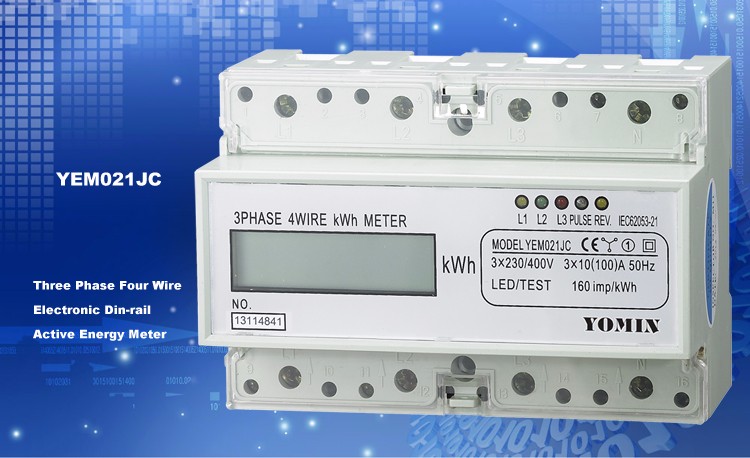

Current Transformer Connect Din Rail Three Phase Four Wire LCD Display Electronic Energy Meter

Overview

Essential details

• Place of Origin:

• Zhejiang, China

• Brand Name:

• Yomin

• Model Number:

• YEM021JC

• Display Type:

• Digital Only

• Phase:

• Three Phase

• Measuring Energy Range:

• 0-999999.9kWh

• Accuracy Class:

• 1.0

• Output Voltage:

• 220V/380V

• Operating Temperature:

• -20°C~+60°C

• Dimensions:

• 88x125x73mm

• Rated Current:

• 5(100)A

• Standard:

• IEC62053-21

• Display:

• LCD Display

• Color:

• White

• Frequency:

• 50HZ/60HZ

• Certificate:

• CE ROHS

• OEM:

• Avaliable

• Installation:

• 35mm Standard DIN Rail

Packaging & delivery

• Selling Units:

• Single item

• Single package size:

• 9X13X7.5 cm

• Single gross weight:

• 0.500 kg

• Package Type:

• Conventional export packing

• Lead time:

• Quantity(pieces)	1 - 10	>10
  Lead time (days)	7	To be negotiated

Current Transformer Connect Din Rail Three Phase Four Wire LCD Display Electronic Energy Meter

Product Description

Model YEM421JC three phase four wire electronic DIN rail active and reactive

integration energy meter is a kind of new style three phase four wire active energy

meter, it adopts micro-electronics technique, and imported large scale integrate circuit,

uses advanced technique of digital and SMT techniques, etc. The meter completely

accord with relevant technical requirements of class 1 three phase active energy meter

stipulated in international standard IEC 62053-21 and class 2 three phase reactive

energy meter stipulated in international standard IEC 62053-23. It can accurately and

directly measure 50Hz or 60Hz active and reactive energy consumption from three

phase four wire AC electricity net, it can display total energy consumption by step

motor type impulse register.This meter has seven digits LCD displays shows active

energy.It has following features:good reliability, small volume, light weight, specious

nice appearance, convenient installation, etc.

Features

• 35mm standard DIN rail installation, complying with standard DIN EN50022. Or front board installed (mounting holes center distance 63 mm), users can choose any one by themselves.

• Ten pole width (Modulus 12.5mm), complying with standard JB/T7121-1993.

• 7 digits LCD display, 6+1 digits(999999. 1kWh),may select 5+2 digits display. (Please specified when ordering)

• Standard configuration one port of active pulse output passive and one port of reactive pulse output passive(polarity),The output rate are 0.01, 0.1, 1, 10kWh or kvarh/Pulse.Users can choose any one by themselves. May select one port of active pulse output passive and one port of reactive pulse output passive (nonpolarity). And contact with all kind of AMR system conveniently,Complying with standard IEC 62053-31 and DIN 43864. (Please specified when ordering)

• Five LED instructions power supply state and signal of active energy impulse and reactive energy impulse.

• Automatic detection the direction of the flow of load current. And instructions by one LED.

• Single direction three components measure three phase four wire active and reactive energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21and IEC 62053-23.

• Standard configuration type S wiring (Inlet from top, outlet from bottom), directly connect operation, may select use CT (Product Configuration code is IC) and PT&CT (Product Configuration code is HC) for operation.

• Standard configuration short terminals cover, may select extension terminals cover, in order to protect to use safety. (Product Configuration code is JF).

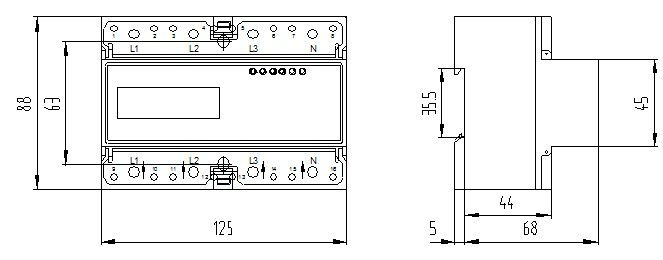

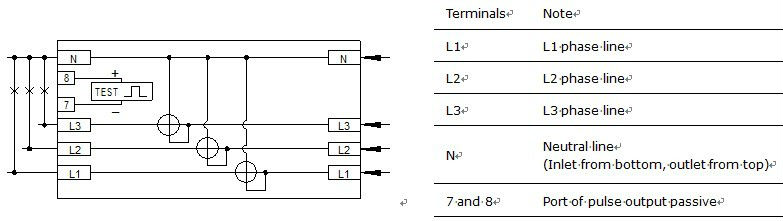

Dimension and wiring

1 Where is your factory?

Our factory is located in Qiaoqian Industry Area, Liushi Town, Yueqing City, Zhejiang Province, 325603 China.

2 Are you manufacturer or business?

We are manufacturer established in 2002, and have over 16 years production experience.

3. Can I ask for samples?

Yes

4. What's the warranty of your products?

18 months

5. What's the lead time?

Depend on the quantity and model of the order, normally it takes around 2-3 days, but the exact lead time should be discussed  with our sales.

6. How about the MOQ, Payment term, Delivery port, and shipping date?

1)MOQ: 100 pcs/item based on existing packing.

2)T/T-30% deposit and 70% against copy of BL

3)L/C is also acceptable

4)Ningbo/Shangha
