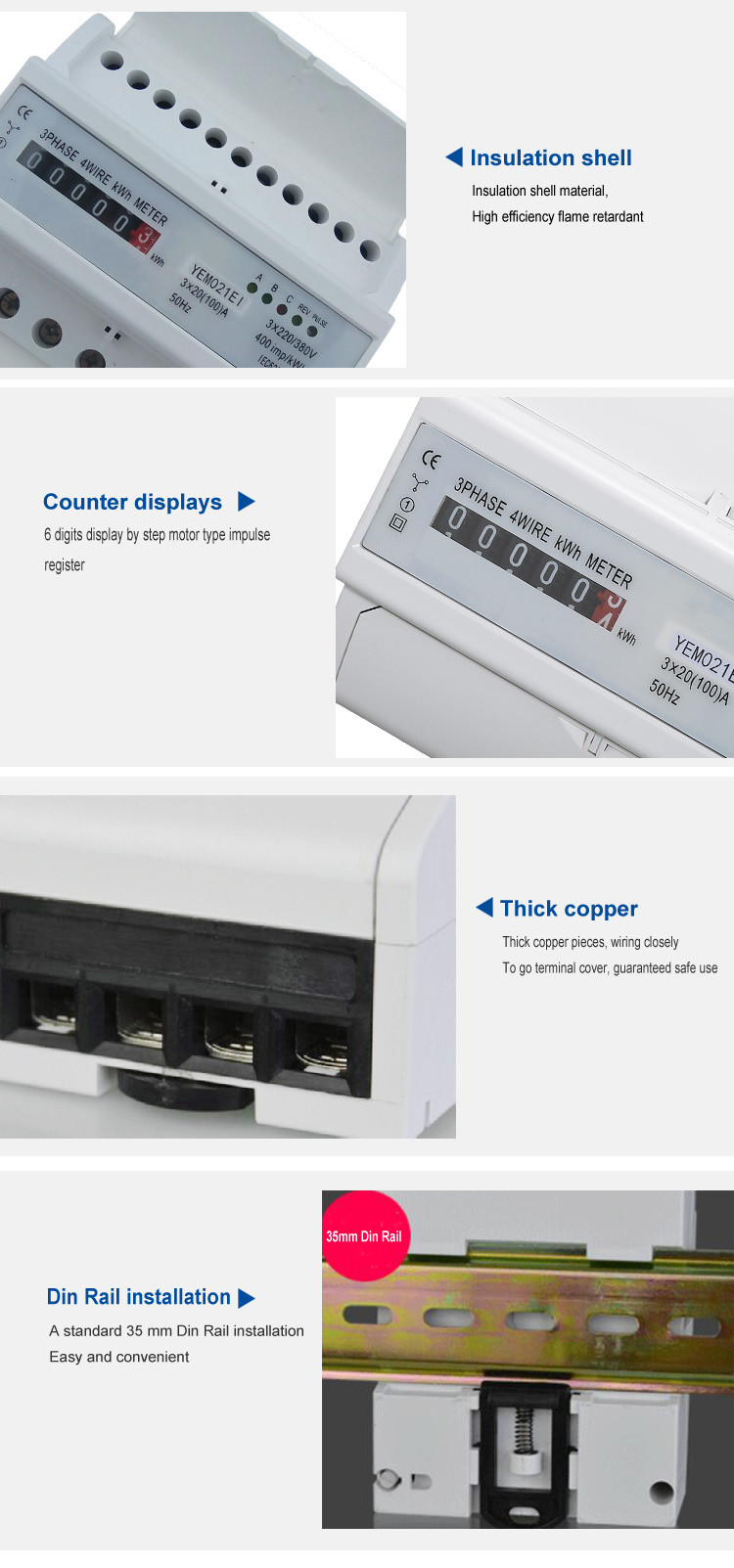

Three phase smart electric kwh power meter with counter display

Overview

Essential details

• Place of Origin:

• Zhejiang, China

• Brand Name:

• YOMIN

• Model Number:

• YEM021EI

• Display Type:

• Analog Only

• Phase:

• Three Phase

• Measuring Energy Range:

• 0-99999.9kWh

• Accuracy Class:

• Class1.0

• Output Voltage:

• 3x127V/220V, 3x230V/400V

• Operating Temperature:

• -20℃~ 70℃

• Dimensions:

• 88x125x73 mm

• Rated Current:

• 5(30)A 10(60)A 20(100)A

• Starting Current:

• 0.02A 0.04A 0.08A

• Material of case:

• PC (Poly Carbonate)

• Installation:

• 35mm Standard DIN Rail

• Connection Mode:

• Directly

• Frequency:

• 50HZ/60HZ

• Color:

• White

• Standard:

• IEC62053-21

• Certificates:

• CE, RoHS, ISO9001

• OEM:

• Avaliable

Supply Ability

• Supply Ability

• 20000 Piece/Pieces per Month

Packaging & delivery

• Packaging Details

1. Packing: Transparent polybag, paper box or foam box, carton or pallet.
2. CTN Size: 31*30*36CM.
3. CTN Weight: 17.04 KGS.
4. Packing Number for One Carton: 24PCS/CTN

• Port

Ningbo/ Shanghai

• Lead time:

• 7 days after order /confirm/iation

Three phase smart electric kwh power meter with counter display

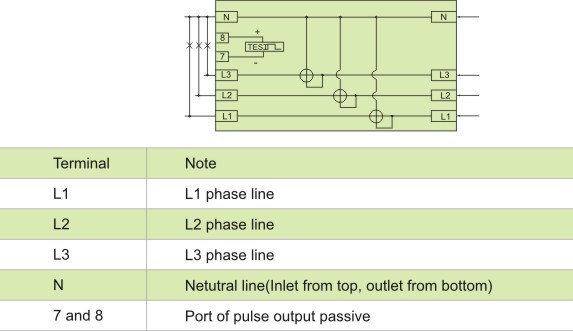

Technical Parameters

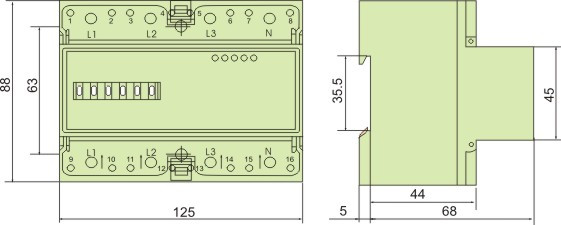

Dimension

1 Where is your factory?

Our factory is located in Qiaoqian Industry Area, Liushi Town, Yueqing City, Zhejiang Province, 325603 China.

2 Are you manufacturer or business?

We are manufacturer established in 2002, and have over 16 years production experience.

3. Can I ask for samples?

Yes

4. What's the warranty of your products?

18 months

5. What's the lead time?

Depend on the quantity and model of the order, normally it takes around 2-3 days, but the exact lead time should be discussed  with our sales.

6. How about the MOQ, Payment term, Delivery port, and shipping date?

1)MOQ: 100 pcs/item based on existing packing.

2)T/T-30% deposit and 70% against copy of BL

3)L/C is also acceptable

4)Ningbo/Shanghai
