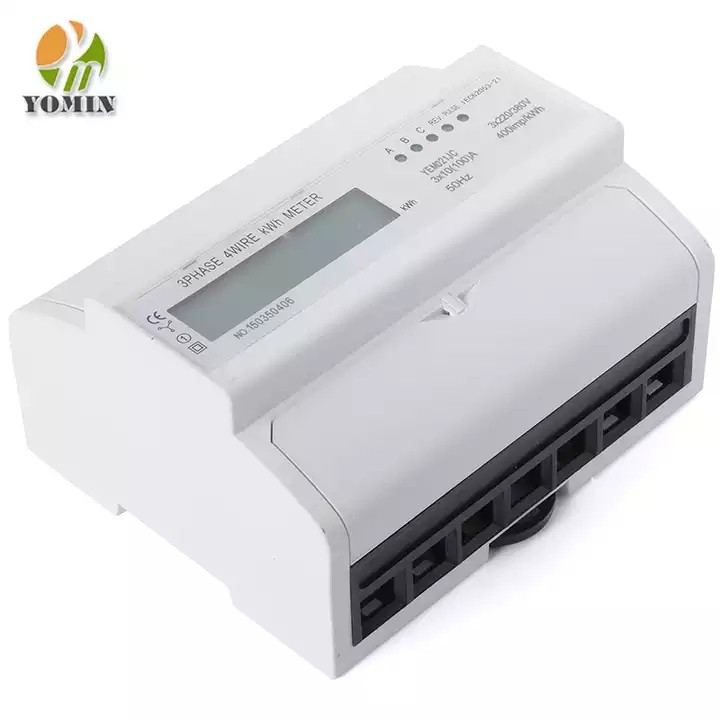

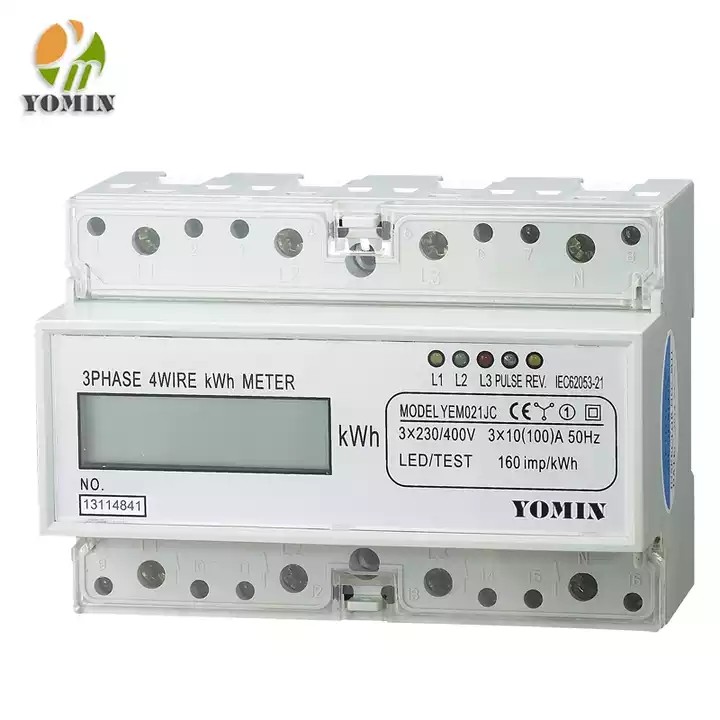

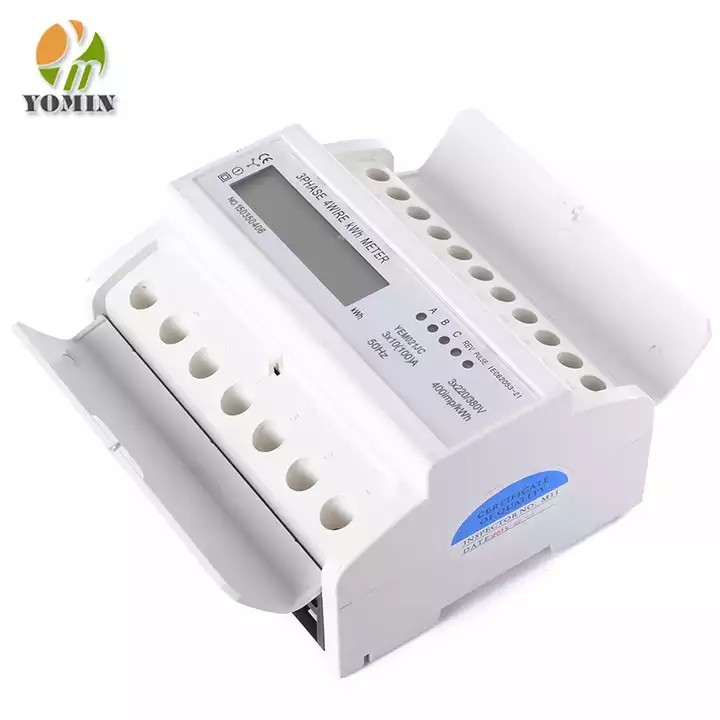

YEM021JC Wholesale Price Factory 3 Phase LCD Display kwh Meter/ low price din rail digital multimete
| Price | ￥23.81/Piece |
| Min quantity | 1Piece |
| Quantity | 999Piece |
| Deliver | In 7 days |
Overview
Essential details
Place of Origin:
Zhejiang, China
Brand Name:
YOMIN, YOMIN
Model Number:
YEM 021JC
Display Type:
Digital Only, LCD display
Phase:
Three Phase
Measuring Energy Range:
10(60)A,20(100)A
Accuracy Class:
class 1, 1.0
Output Voltage:
3x127V/220V, 3x230V/400V, 3x127V/220V, 3x230V/400V
Operating Temperature:
-20℃~ 70℃
Dimensions:
88x125x73 mm, Custom size, 88x125x73 mm, Custom size
Installation:
35mm standard DIN rail
Standard:
IEC62053-21
Certification:
CE RoHS
Frequency:
50-60HZ
Starting Current:
0.02A,0.04A,0.08A
Supply Ability
Supply Ability
160000 Piece/Pieces per Month
Packaging & delivery
Packaging Details
Standard Export Carton
Port
SHANGHAI/NINGBO
Lead time:
Shipped in 30 days after payment
YEM021JC Wholesale Price Factory 3 Phase LCD Display kwh Meter/ low price din rail digital multimeter/ 3 phase power meter
Technical Parameters
| Model | Accuracy | Frequency | Size | Material |
| YEM021JC | 1.0 | 50-60HZ | 125x88x73mm | PC |
Reference Voltage(V) | Current Specification(A) | Staring Current(A) | Display Mode | Insulation Performance |
3x127/220V, 3x230/400V | 5(30)A,10(60), 20(100)A | 0.02A,0.04A, 0.08A | LCD 6+1/5+2 | AC voltage 4kv for 1 minute, 1.2/50us waveform impulse voltage 6kv |
Dimension and Wiring
