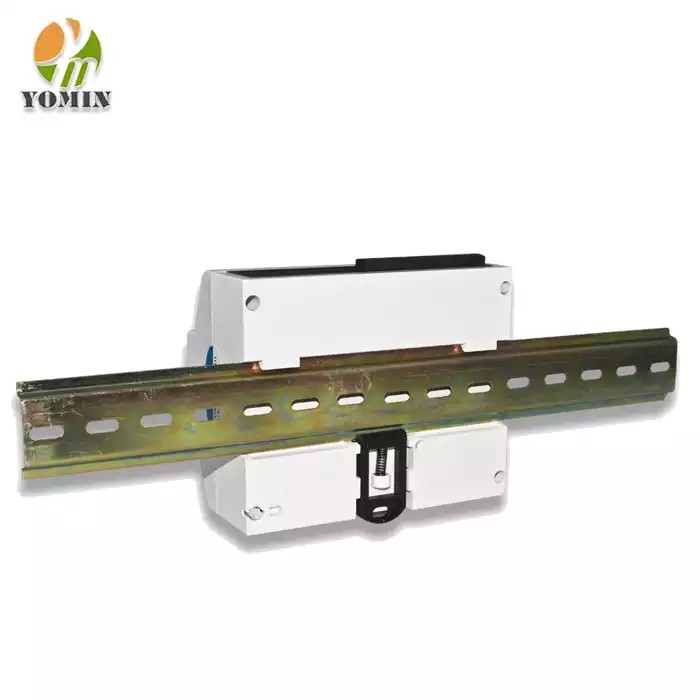

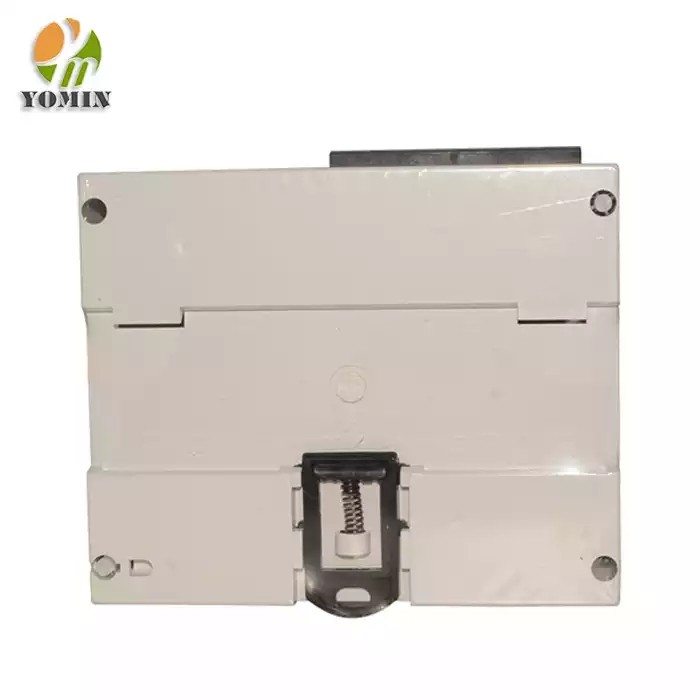

Din Rail Three Phase Power Modbus Energy Meter /Electric Meter

verview

Essential details

• Place of Origin:

• Zhejiang, China

• Brand Name:

• YOMIN

• Model Number:

• YEM021

• Display Type:

• Digital Only

• Phase:

• Three Phase

• Measuring Energy Range:

• 0-999999.99 KWh

• Accuracy Class:

• Class1

• Output Voltage:

• 220v/230v/240v

• Operating Temperature:

• -20℃~ 70℃

• Dimensions:

• 125*88*68

• Standard:

• IEC62053-21

• Communication:

• MODBUS Power Meter

• Frequency:

• 50HZ/60HZ

• Product name:

• Three Phase Electronic RS485 Energy Meter

• Certificate:

• CE ROHS

• Color:

• White

• Rated current:

• 10(100)A

• Display:

• LCD Display

• Type:

• DIN Rail Energy Meter

• Reference Voltage:

• 3x127/220V ,3x230/400V

Packaging & delivery

• Selling Units:

• Single item

• Single package size:

• 13X9X7 cm

• Single gross weight:

• 0.500 kg

• Package Type:

• Conventional export packing.

• Lead time:

• Quantity(pieces)	1 - 10	>10
  Lead time (days)	7	To be negotiated

Din Rail Three Phase Power Modbus Energy Meter /Electric Meter

Product circuit measurement part of a dedicated measurement chip, high reliability, high precision and accurate measurement of active energy. The product adopts the linear power supply, the metering chip converts the electric energy into pulse respectively. The microprocessor completes the functions of power collection, power calculation, power pulse output and LCD display processing. The data security adopts redundant design, and the data adopts multiple backup to ensure reliable measurement data.

We can supply a wide range of products suitable for 100VAC to 380VAC (50 or 60Hz). In addition to our regular power meters, we have developed our own prepaid smart card form, prepaid smart track card form, rechargeable smart card. As well as a complete set of PC-based pre-paid management operating system. For more information, please contact us.

The meter has the following features, the meter with large-screen LCD display, the meter with RS485 (communication protocol MODBUS-RTU remote meter reading function, can accurately measure the active energy.

A  Front panel            Material                                                                  Length     100 mm

B  meter cover          Front panel flame retardant PC                                  Width      123 mm

C  bottom                  Meter cover flame retardant ABS or PC                    High        65 mm

D  seal                       Flame-retardant ABS or PC                                      Weight     0.6 Kg (net)

1 Where is your factory?

Our factory is located in Qiaoqian Industry Area, Liushi Town, Yueqing City, Zhejiang Province, 325603 China.

2 Are you manufacturer or business?

We are manufacturer established in 2002, and have over 16 years production experience.

3. Can I ask for samples?

Yes

4. What's the warranty of your products?

18 months

5. What's the lead time?

Depend on the quantity and model of the order, normally it takes around 2-3 days, but the exact lead time should be discussed  with our sales.

6. How about the MOQ, Payment term, Delivery port, and shipping date?

1)MOQ: 100 pcs/item based on existing packing.

2)T/T-30% deposit and 70% against copy of BL

3)L/C is also acceptable

4)Ningbo/Shanghai
