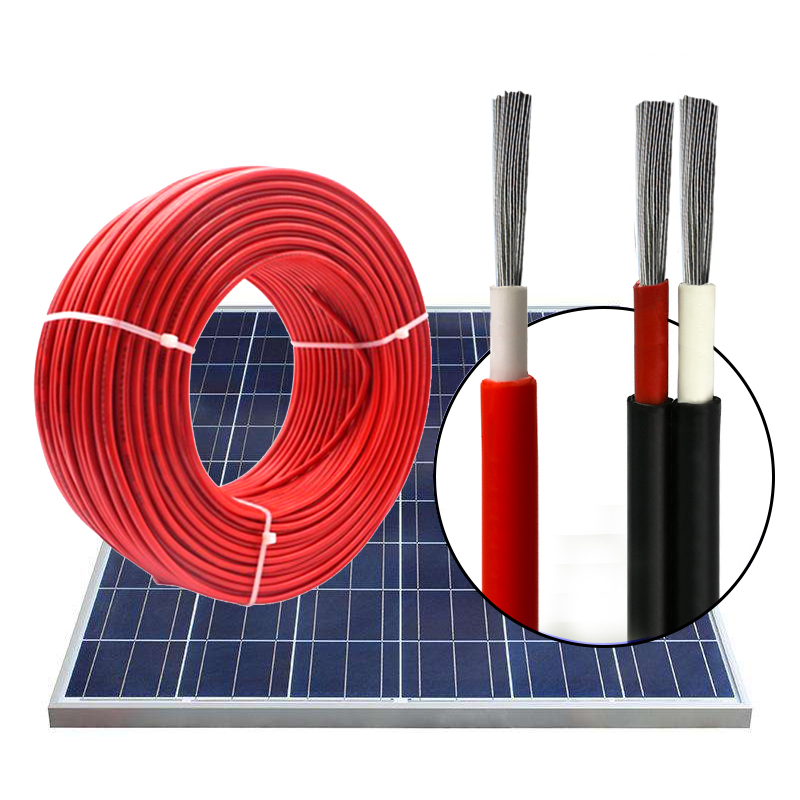

Solar Cable

Flat Cable

THNN Cable

Power Cable

Welding Cable

Lan Cable

Products Description

* Main of cables features

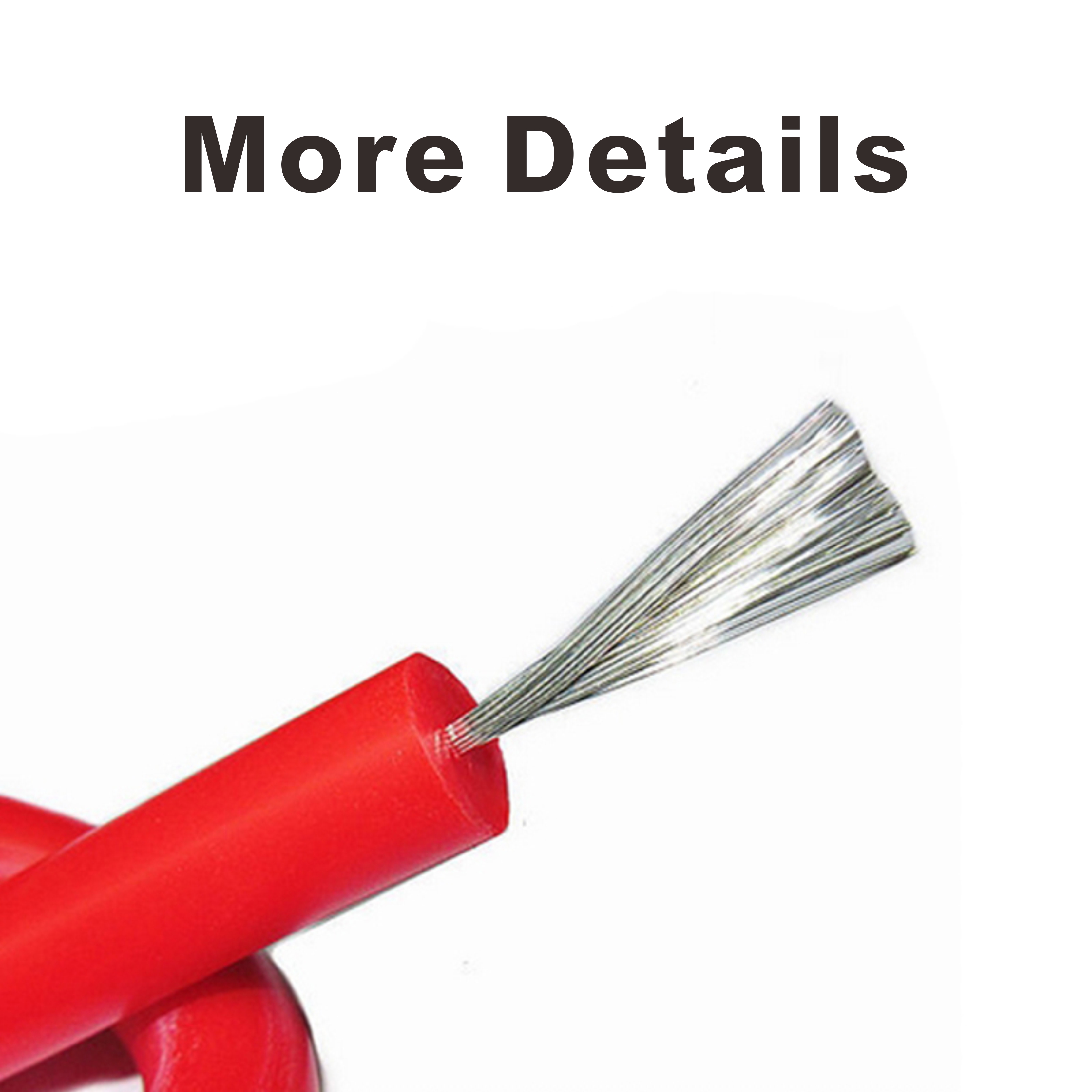

1, Nominal Voltage: 600V 2,Testing Voltage: 2000V 2, Long-term allowable temperature of the cable:-60° C〜+ 200°C 3, Conductor: Stranded Tinned copper wire 4, Insulator material: silicone Rubber

5,Color: Black, red ,Blue Or Customized Color6,Conductor size: 0AWG, 1AWG, 2AWG, 3AWG, 4AWG, 6AWG, 7AWG, 8AWG, 10AWG, 11AWG, 12AWG, 13AWG, 14AWG, 15AWG, 16AWG, 17AWG, 18AWG, 20AWG, 22AWG, 24AWG, 26AWG, 28AWG, 30AWG

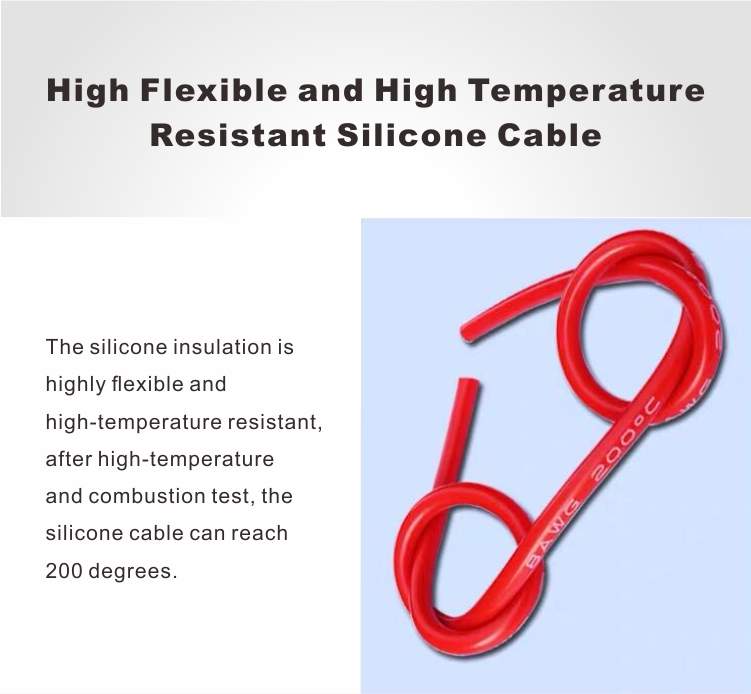

7,Feature: Super Soft, Waterproof, High-Temperature Resistance, Anti-Low Temperature, oilproof, Anti-aging

* Application:
Applicable to electronic motors, industrial machines, electric models, model airplanes, car models, batteries, ESCs, motor lights

Product Paramenters

conductor				Insulator		Electrical Characteristics	Maximum Current	Package
Size	No. & Nominal / Diameter of Wire	Section	Diameter	Insulator Thick	Over Diameter	Conductor resistance	Ampere	Package
AWG	MM	MM2	MM	MM	MM	Ω/KM	A	Meter / Roll
0	19000/0.08mm	95.5	12.73	2.64	18	0.18	955	50
1	15000/0.008mm	75	11.3	2.3	15.5	0.45	840	50
2	10000/0.008mm	50	9.24	2.4	14	0.63	630	50
3	6700/0.008mm	33.7	7.73	2.6	13	0.89	500	50
4	5000/0.008mm	25	6.53	2.4	11	1.25	400	50
6	3200/0.008mm	16	5.23	1.65	8.5	1.9	300	100
7	2400/0.008mm	12	4.53	1.35	7.2	2.6	240	100
8	1650/0.008mm	8.3	3.75	1.5	6.3	3.7	190	100
10	1050/0.008mm	5.3	3	1.3	5.45	6.3	140	100
11	750/0. 008mm	3.8	2.53	1.2	5	8.3	105	100
12	680/0.008mm	3.4	2.41	1	4.5	9.8	88	100
13	500/0.008mm	2.5	2.07	1	4	12.5	70	100
14	400/0.008mm	2	1.85	0.9	3.5	15.6	55	200
15	300/0.008mm	1.5	1.6	0.8	3.2	20.8	42	200
16	252/0.008mm	1.27	1.47	0.75	3	24.4	35	200
17	210/0.008mm	1	1.33	0.68	2.7	29.8	30	200
18	150/0. 008mm	0.75	1.13	0.55	2.3	39.5	22	200
20	100/0.008mm	0.5	0.92	0.45	1.8	62.5	13	400
22	60/0.008mm	0.3	0.72	0.45	1.7	88.6	8	400
24	40/0.008mm	0.2	0.58	0.5	1.6	97.6	5	400
26	30/0.008mm	0.16	0.51	0.5	1.5	123	3.5	400
28	16/0.008mm	0.08	0.37	0.4	1.2	227.2	1.25	1500
30	11/0.008mm	0.055	0.31	0.3	0.8	331	0.8	2500

Stranded High Flexible Wire Super Soft Mini Silicone Wire 1X2.5 Electrical Cable Silicon Power Cable
