•Application:

Cables are suitable for laying in the pipe also can be laid in the open or in the embedded casing do not allow direct installation in cable tray,construction or container

Suitable for unstallation inside the instrument,and lighting,drying room,production equipment,protection laying og switchgear

•Performance:

Operating voltage:300/500V 450/750v

Insulation resistance:10 Gohm x cm

InMinimum bend radius:15 x cable diameter

Operating installation:-5℃to+80℃

Fixed installation:-40℃to+70℃

Oilresistant,flame retardant,and extension flammable:IEC 60332.1/the HD 405.2and VDE 0207-4

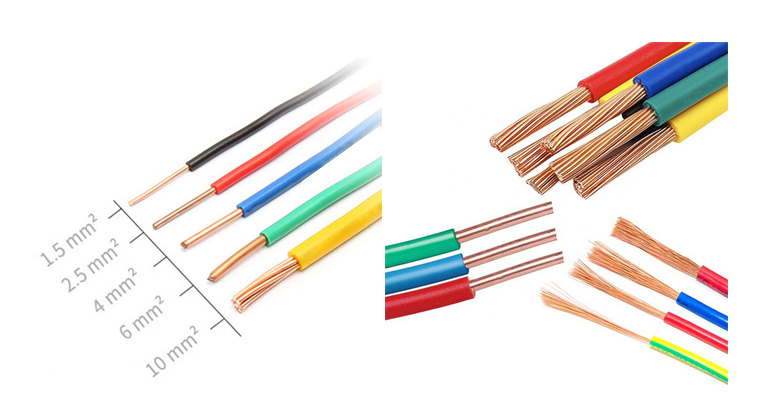

	Nominal section	Number of conductors	Toplimit of overall diameter	Maximum DC	Minium insulation	Recommended value of carrying capacity	Reference weight
Voltage Level	(mm²)		(mm)	resistance (20℃)	resistance (20℃)	(A)	(KG,KM)
(V)				(Ω/km)	(MΩ·km)
300/300	0.5	1	2.3	36	0.015	13	8.3
	0.75	7	2.6	24.5	0.012	17	10.9
	0.75	1	2.7	24.5	0.014	17	11.8
	1	7	2.8	18.1	0.011	20	13.7
	1	1	3	18.1	0.013	20	14.8
300/500	1.5	1	3.2	12.1	0.011	25	20
	1.5	7	3.3	12.1	0.01	25	21.3
	2.5	1	3.9	7.41	0.01	34	31.5
	2.5	7	4	7.41	0.009	34	34.4
	4	1	4.4	4.61	0.0085	44	46.8
	4	7	4.6	4.61	0.0077	44	48.1
	6	1	5	3.08	0.007	58	65.1
	6	7	5.2	3.08	0.0065	58	68.8
	10	7	6.7	1.83	0.0065	79	111
	16	7	7.8	1.15	0.005	111	166
	25	7	9.7	0.727	0.005	146	263
	35	7	10.9	0.524	0.004	180	356
	50	19	12.8	0.387	0.0045	228	487
	70	19	14.6	0.268	0.0035	281	679
	95	19	17.1	0.193	0.0035	344	932
	120	37	18.8	0.153	0.0032	397	1163
	150	37	20.9	0.124	0.0032	456	1424
	185	37	23.3	0.0991	0.0032	519	1789
	240	61	26.6	0.0754	0.0032	592	2335
	300	61	29.6	0.0601	0.003	685	2924
	400	61	33.2	0.047	0.0028	799	3750
