125mm2 150mm2 175mm2 200mm2 225mm2 250mm2 300mm2 350mm2 400mm2 450mm2 500mm2 ACSR Conductor BS215 St

Overview

Essential details

• Place of Origin:

• Henan,China

• Brand Name:

• Huadong

• Model Number:

• ACSR Conductor BS215 Standard

• Insulation Material:

• NO Insulation

• Type:

• Low Voltage/ Medium Voltage/High Voltage

• Application:

• Overhead

• Conductor Material:

• Aluminum and Steel

• Jacket:

• No Sheath

• Popular Code Name::

• Aluminum Conductor Steel Reinforced ACSR Conductor

• Standard:

• BS215 Standard

• Certificate:

• CCC, ISO

• MOQ:

• 1000m

• Packing:

• Wooden Drum, Iron Drum, with your request

• Conductor Type:

• Stranded

• Nominal Section:

• 16-800mm2

• Production Experience:

• Over 20 years

• ACSR Cable Price:

• Get the quotation within 12 hours

• Name:

• Aluminum Conductor Steel Reinforced ACSR Conductor BS215 Standard

Supply Ability

• Supply Ability

• 150 Kilometer/Kilometers per Month ACSR Conductor BS215 Standard

Packaging & delivery

• Packaging Details

125mm2 150mm2 175mm2 200mm2 225mm2 250mm2 300mm2 350mm2 400mm2 450mm2 500mm2 ACSR Conductor BS215 Standard
The package is usually wooden drum or steel wooden drum or coil.also according to customer's requirement.

• Port

Qingdao Shanghai Guangzhou

• Picture Example:

•



• Lead time:

• Quantity(meters)	1 - 1000	1001 - 2000	>2000
  Lead time (days)	7	15	To be negotiated

125mm2 150mm2 175mm2 200mm2 225mm2 250mm2 300mm2 350mm2 400mm2 450mm2 500mm2 ACSR Conductor BS215 Standard

Product Description

ACSR conductor or aluminum conductor steel reinforced is used as bare overhead transmission and as primary and secondary disribution cable. ACSR is suitable for use in all practical spans on wood poles, transmission towers, and other structures because of its dependability and strength to weight ratio.

This wire is suitable for use in all practical spans on wood poles, transmission towers, and other structures. Applications range from long, extra high voltage (EHV) transmission lines to sub-service spans at distribution or utilization voltages on private premises. ACSR (aluminum conductor steel reinforced) has a long service record because of its economy, dependability, and strength to weight ratio. The combined light weight and high conductivity of aluminum with strength of the steel core enables higher tensions, less sag, and longer spans than any alternative.

CONSTRUCTION

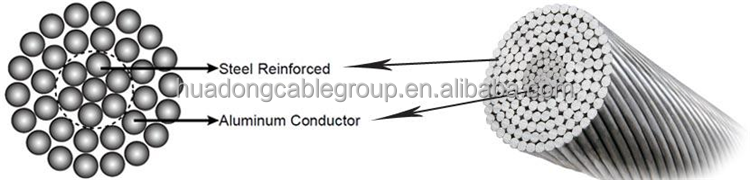

A solid or concentric stranded central steel core is surrounded by one or more layers of concentric stranded aluminum alloy 1350. The wire is protected from corrosion with a zinc coating.

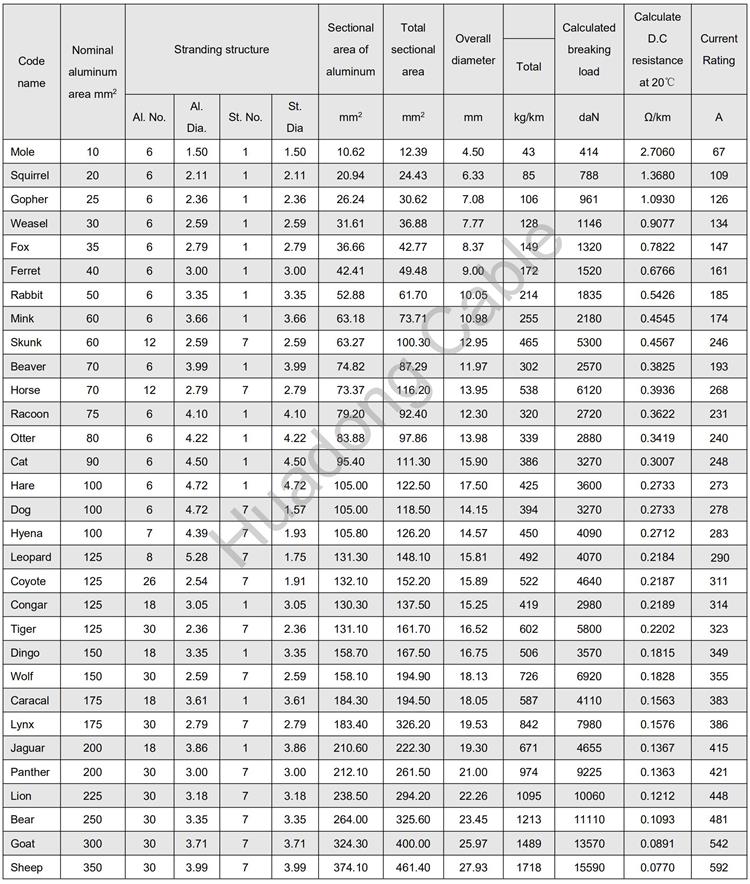

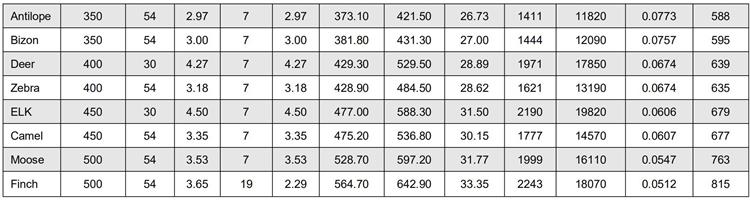

ACSR Conductor Technical Characteristics / BS215 Standard
