YVFRB YFFB Flat Elevator Travel Lift Control Cable
| Price | ￥0.10/Piece |
| Min quantity | 1Piece |
| Quantity | 999Piece |
| Deliver | In 7 days |
Overview
Essential details
Place of Origin:
Henan, China
Brand Name:
Huadong
Model Number:
YVFRB rubber cable
Insulation Material:
Rubber
Type:
Rubber Cable
Application:
Construction
Conductor Material:
Copper/Aluminum
Jacket:
Rubber
Hot Sale Size:
25mm,35mm,50mm,70mm,95mm,150mm
Other Core:
1core,2core,3core,4core,5core
Certificate:
ISO9001/CCC
MOQ:
1000m
Standard:
IECA, BS, DIN,
Sample:
Contact to get free sample
Specification:
Will send with price to your email
Warranty:
100%quanlified
Price:
Get within 12 hours
Color:
Black, Yellow, As you request
Supply Ability
Supply Ability
100 Kilometer/Kilometers per Month YVFRB YFFB Flat Elevator Travel Lift Control Cable
Packaging & delivery
Packaging Details
YVFRB YFFB Flat Elevator Travel Lift Control Cable
package is usually wooden drum or steel wooden drum or coil.also according to customer's requirement.
Port
Qingdao Shanghai Guangzhou
Picture Example:
Lead time:
Quantity(meters) 1 - 1000 1001 - 2000 >2000 Lead time (days) 7 15 To be negotiated
YVFRB YFFB Flat Elevator Travel Lift Control Cable
Product Description
YVFRB YFFB Flat Elevator Travel Lift Control Cable
The high pressure flat cable products for EPR insulated chloroprene rubber sheathed high-pressure rubber flat soft cable
rated voltage 8.7/10kV and the following open heavy equipment.
Technical parameters:
The wire core long-term allowable working temperature is 85 °C.
The maximum rated temperature of cable conductor is 90 °C.
Short circuit (the longest duration of no more than 5 seconds) of the conductor temperature does not exceed 250 °C.
Cable to allow the minimum ambient temperature: UGEFP type: -15 ° C; UGEFHP type: -33 °C.
Cable bending radius: for fixed equipment for the 6D; connection to freedom of activity for the 10D; retractable cable tray for the 12D;
using transfer wizard round 15D (where D is the diameter of the cable).
Model | Number of cores × Nominal cross section (mm 2) | Conductor structure | Average Dimensions (mm) | 20 ° C conductor shape resistance ≤ (Ω / km) | Reference weight (kg / km) | |
Copper core | Tinned copper | |||||
YJGCFPB-10KV | 3 × 16 +3 × 16/3 | 126/0.04 | (70-75) × (31-33) | 1.21 | 1.24 | 3700 |
3 × 25 +3 × 16/3 | 196/0.40 | (76-81) × (33-35) | 0.780 | 0.795 | 4300 | |
3 × 35 +3 × 16/3 | 276/0.40 | (79-84) × (34-36) | 0.554 | 0.565 | 4800 | |
YJGCFPB-6KV | 3 × 16 +3 × 16/3 | 126/0.04 | (62-64) × (27-28) | 1.21 | 1.24 | 2815 |
3 × 25 +3 × 16/3 | 196/0.40 | (66-69) × (29-31) | 0.780 | 0.795 | 4100 | |
3 × 35 +3 × 16/3 | 276/0.40 | (70-73) × (30-33) | 0.554 | 0.565 | 4750 | |
3 × 50 +3 × 16/3 | 396/0.40 | (76-79) × (32-35) | 0.386 | 0.393 | 6300 | |
3 × 70 +3 × 25/3 | 360/0.50 | (82-85) × (34-37) | 0.272 | 0.277 | 7380 | |

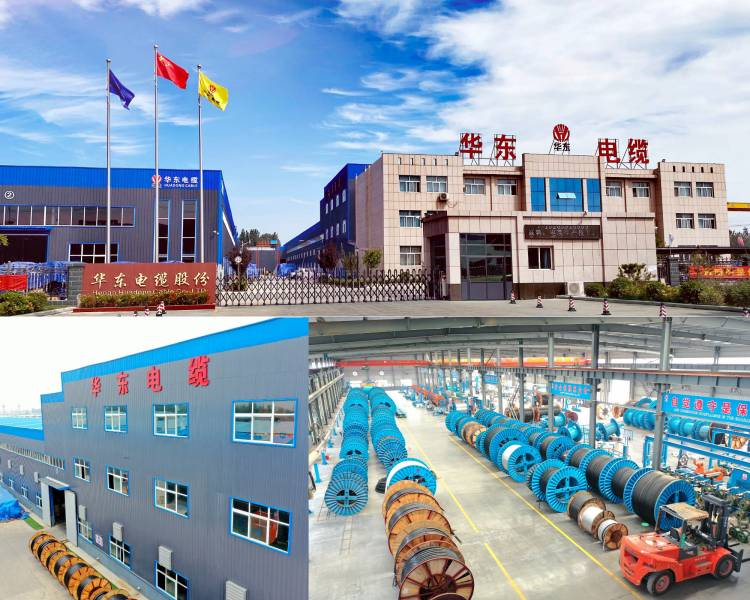

Company Information
Zhengzhou Huadong Cable Co.,Ltd is an import and export trade co,pany in Zhengzhou City, Henan province, China, which is a branch of Henan Huadong Cable Group. Our factory occupied 50000 square meters, and specialize in overhead ABC cable, AAC, ACSR, AAAC, 0.6-35KV power cable, control cables, welding cables, rubber cables, mining cables. We can provide standard cables with GB, IEC, BS, ICEA, ASTM, DIN, VED and JIS srandards. What's more, We can design cables according to your requirement. Now you can send the inquiry, leave your email, then our sales manager will send you quotation as soon as possible.
Certifications
YVFRB YFFB Flat Elevator Travel Lift Control Cable Certifications:
