H01N2-D Welding Cable Manufacturers & Suppliers
| Price | ￥0.10/Piece |
| Min quantity | 1Piece |
| Quantity | 999Piece |
| Deliver | In 7 days |
Overview
Essential details
Place of Origin:
Henan, China
Brand Name:
Huadong
Model Number:
H01N2-D Welding Cable
Insulation Material:
Rubber
Type:
Rubber Cable
Application:
Construction
Conductor Material:
Copper/Aluminum
Jacket:
Rubber
Hot Sale Size:
25mm,35mm,50mm,70mm,95mm,150mm
Other Core:
Single Core
Certificate:
ISO9001/CCC
MOQ:
1000m
Standard:
IECA, BS, DIN,
Sample:
Contact to get free sample
Specification:
Will send with price to your email
Warranty:
100%quanlified
Price:
Get within 12 hours
Product name:
H01N2-D Welding Cable Manufacturers & Suppliers
Supply Ability
Supply Ability
100 Kilometer/Kilometers per Month H01N2-D Welding Cable Manufacturers & Suppliers
Packaging & delivery
Packaging Details
H01N2-D Welding Cable Manufacturers & Suppliers
package is usually wooden drum or steel wooden drum or coil.also according to customer's requirement.
Port
Qingdao Shanghai Guangzhou
Picture Example:
Lead time:
Quantity(meters) 1 - 1000 1001 - 2000 >2000 Lead time (days) 7 15 To be negotiated
H01N2-D Welding Cable Manufacturers & Suppliers
Product Description
H01N2-D
Welding Cable
Application:
For use on handheld electrodes keepers till 100 V with standardl flexibility.

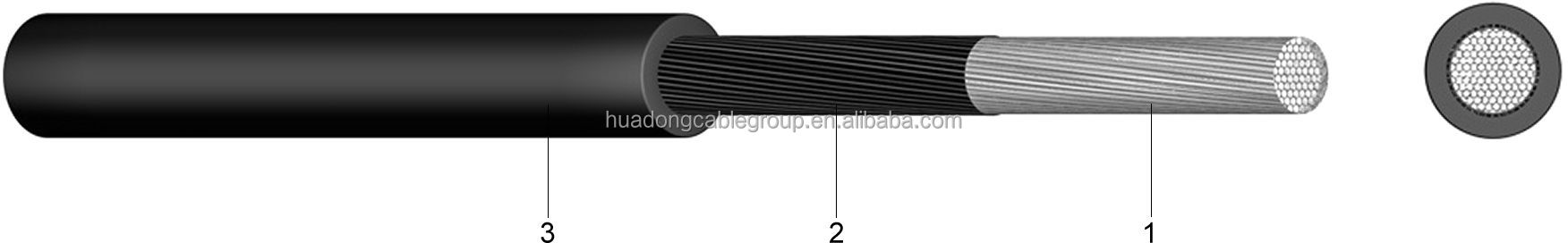

Construction:
1 ..... fine-stranded tinned or bare copper
2 ..... separator tape
3 ..... outer sheath of polychloroprene (EM5), black
Standards:
DIN VDE 0282-6
DIN EN 60228 class 5 (construction)
HD 22.6 S2:1995+A1:1999+A2:2004
Technical data:
| Nominal voltage Uo/U | [V] | 100 / 100 volt | |
| Test voltage | [V]AC | 1000 | |
| Temperature range | in motion | -20°C till +80°C | |
| Operating temperature | short circuit | °C | 250 |
| Short circuit time | max. | [sec] | 5 |
| Bending radius | min. | x diameter | 5 |
| Flammability | standard | EN 60332-1-2 |
| Number of cores and nominal cross section mm2 | Copper figure kg/km | Wire diameter mm | Insualion thickness mm | Overall diameter appr. mm | Weight appr. kg/km | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 x 16 | 160,0 | 0,21 | 2,0 | 9,5 | 210,0 | |||||
| 1 x 25 | 250,0 | 0,21 | 2,0 | 11,0 | 300,0 | |||||
| 1 x 35 | 350,0 | 0,21 | 2,0 | 12,0 | 400,0 | |||||
| 1 x 50 | 500,0 | 0,21 | 2,0 | 14,0 | 560,0 | |||||
| 1 x 70 | 700,0 | 0,21 | 2,4 | 16,5 | 780,0 | |||||
| 1 x 95 | 950,0 | 0,21 | 2,6 | 18,5 | 1.010,0 | |||||
| 1 x 120 | 1.200,0 | 0,51 | 2,8 | 20,0 | 1.250,0 |
Company Information
Zhengzhou Huadong Cable Co.,Ltd is an import and export trade co,pany in Zhengzhou City, Henan province, China, which is a branch of Henan Huadong Cable Group. Our factory occupied 50000 square meters, and specialize in overhead ABC cable, AAC, ACSR, AAAC, 0.6-35KV power cable, control cables, welding cables, rubber cables, mining cables. We can provide standard cables with GB, IEC, BS, ICEA, ASTM, DIN, VED and JIS srandards. What's more, We can design cables according to your requirement. Now you can send the inquiry, leave your email, then our sales manager will send you quotation as soon as possible.
Why Choose Us
Quality assurance:Specialized assurance to provide highest quality of products
Customer-oriented:Professioal sales to solve anytechnical confussions
Reasonable price:Offering competitive price to make benefit for clients
Packaging & Shipping
H01N2-D Welding Cable Package:
When you identify the details, don't forget to choose the package and its color. In usually, customer usually choose wooden drum and you can choose paint blue color, yellow color or red color. If you don't like these package or color, we can customize for you, now, you can send us your wanted package and colors.
