Product Description

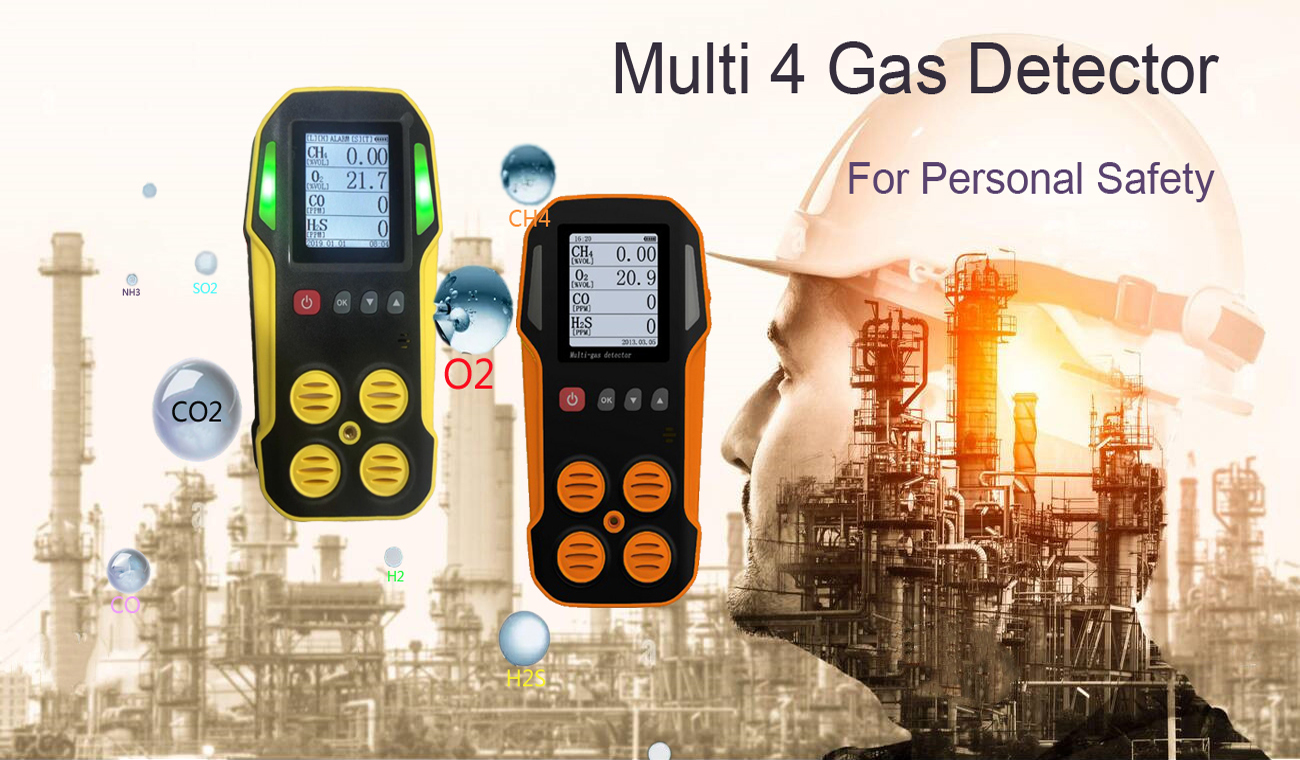

Handheld Portable 4 gas Monitor Detector

SA Technology latest model SA600 handheld portable 4 gas monitors detector,which is based on advanced infrared and Electrochemical technology for measuring of 100%LEL,1000ppm CO,30%O2 and 5000ppm H2S concentration,with optional H2, CO, gas flow items.SA600 Multi 4 gas monitors detector adopts dual infrared sensor(CH4&CO2) and internal electrochemical sensor(O2,H2S) design achieves easy maintenance in daily operation. It’s non-thermostat container design,special correction method greatly eliminate the temperature impact on infrared sensors

The multi 4 gas monitors detector will provide a percent by volume reading of the methane (100%CH4) and carbon dioxide (100%CO2) levels.The oxygen (30%O2) readings on the detector may be useful in determining if there is an inbound air leak in the collection system. A portable multi 4 gas monitors detector equipped with carbon monoxide (CO) analyzer may be useful for detecting a subsurface fire.based on these results, adjustments or repairs can be made to restore safe conditions and optimize the heating value of the gas produced.

Compact,rugged and robust,the SA500 portable multi 4 gas monitors detector is well-suited for many applications where presence of multigas needs to be monitored (Underground coal,digesters,methane recovery,waste and water treatment…)

We can OEM or ODM gas analyzers according to customer's requirements,such as 2 in 1 gas analyzer,3 in 1 gas analyzer or 5 in 1 gas analyzer,you can contact with us on what's the gas you detect and measuring range.

DETAILED SPECIFICATIONS

●Prepared for measurement of up to 4(6) gases 100%LEL,100%CO2,30%O2,0-5000ppmH2S

●With combustion gas/Coal/exhaust gas/Flue leakage gas measurement

●Backlit high resolution color display and light sound and vibration alarm 4 gas monitors detector

●Mini-USB interface to PC and SD-card slot for large volume data logging,Internal data storage for measurements

●High energy Li-battery,for up to 12 hours operation time

●Modern,slim line enclosure with more color choose.like yellow/orange/black,The color can be customized ●Air sampling external pump is available

Data Logger Multi 4 gas Monitor

When air quality is compromised, SA600 multi 4 gas monitor can be used for personal safety and healthy

A quartet of electrochemical/infrared sensors to work in order to simultaneously track ambient Oxygen,Carbon Dioxide,Hydrogen Sulfide and Methane gas levels

Measuring range:LEL: (0-100)% VOL

CO2: (0-100)% VOLO2:    (0-30)% VOL H2S:  (0-1000) PPM

CO:(0-1000) PPM

★This SA600 Handheld portable multi 4 gas monitors detector will help you remain safe and will ensure you meet the guidelines of organizations striving to maintain safety for those doing potentially unsafe work.

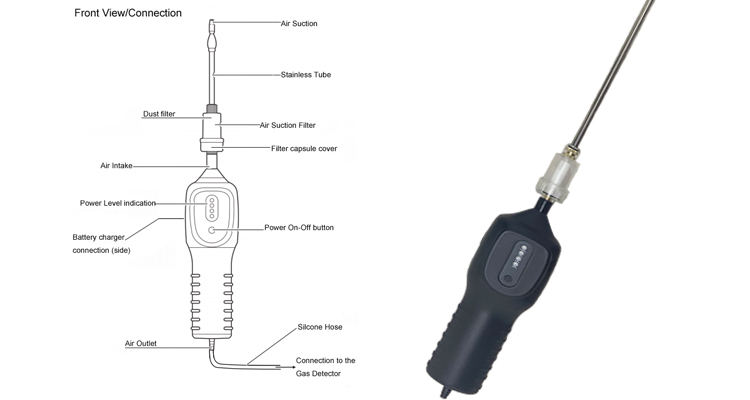

Air Gas pump Specification:

- Flow:400mL/min - Suction hose distance:up to 30 meters - Power:built-in rechargeable lithium battery - Operating temperature:0 to 40°C - Operating humidity:0 to 90%RH (non-condensing) - Pump dimensions (WxHxD):55x220x47mm - Pickup tube dimensions:222x6mm(Ø) - Dimensions of the filter capsule:64x26mm(Ø) - Weight:200g - Additional Information: - Principle: pneumatic diaphragm - Battery charge level indication:4 levels

Characters of Portable multi 4 gas monitors detector

◆Robust design and high quality ABS plastic+PC alloy enclosure,large backlit LCD display screen

◆Visual&audible vibration alarm when the toxic or combustible gas exceeds the setting point

◆Loud 75dB audible alarm,vibrating alarm,dual color red visual alarm

◆Long continuous working hours more than 12 hours after fully recharged

◆imported high sensitive sensor guarantee the readings quick and accuracy of Portable multi 4 gas monitors detector

◆Wide range models,like portable multi gas analyzer or single gas analyzer,4 in 1 gas analyzer,3 in 1 gas analyzer,2 in 1 gas analyzer
◆Alarm Support Full range adjustable,and STEL,TWA alarm

◆Up to 5 gas can be choose as target gas(option),(EX,CH4,CO,O2,CO2,H2S,SO2,H2,NH3,NO2,LEL)

◆Long life service,1500MA rechargeable lithium battery portable multi 4 gas monitors detector

◆High protection level,IP54/66/67 for optional,Water proof and dust proof portable multi 4 gas monitors detector

◆Self-diagnose(Auto calibration),Zero adjustment,Battery level indication,Flashlight,Handheld,LCD backlight
◆Plug-in imported high sensitive sensor technology with data logging,like NDIR infrared,electrochemical gas sensor for choosing

Benefits:

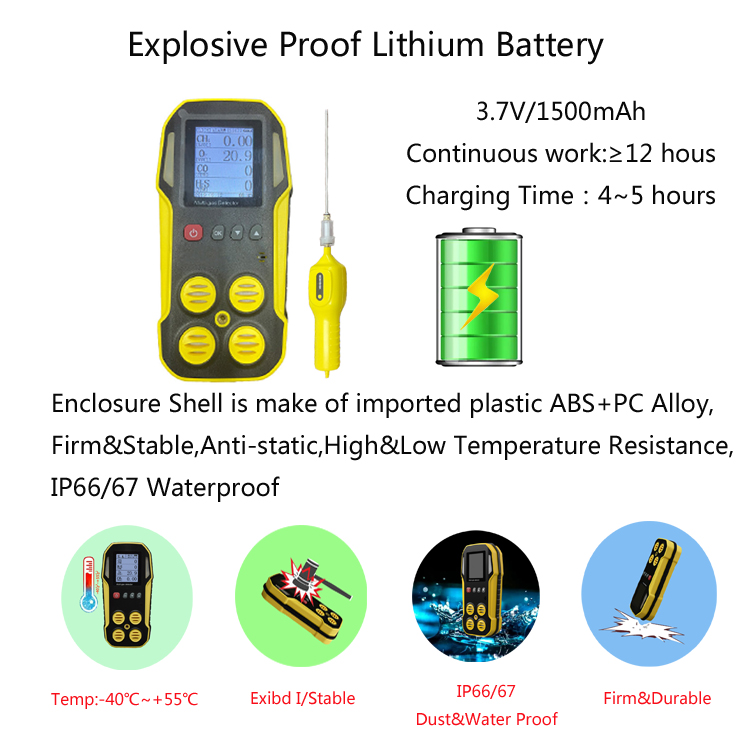

【High Sensitive&Accurate Measurement】Handheld multi 4 gas monitors detector for detecting 4 gases, measurement range: 100%CH4,100%CO2,30%O2 and 5000ppm H2S with resolution:0.5%vol/1ppm【High&Low alarm function with triple alarm】When gas concentration reach preset high or low alarm value, the coal mine gas analyzer will sound,light alarm with vibration,STEL/TWA alarm value is adjustable based on your requirements.【Digital LCD display with backlight function】High density digital LCD screen display real time gas concentration value, backlight function is suitable for operation in dark areas;With compact size and unique alligator clip design,it is convenient for user to carry and operate.Support automatic calibration.【Durable Power Supply】Built-in rechargeable 3.7V/1500mAh Li-thion battery multi 4 gas monitors detector analyzer,which can work continuously more than 12 hours with full charge.【Data Logger&Transfer】This multi 4 gas monitors detector device can record and transfer the gas data in real time,with the record memory 16M,the memory time is adjustable between 0.1 minute to 10 minute.
