1.2kw 3000rpm 220V 110mm AC Popular High Torque 5 Poles Servo Motor CE Lathe Servo Motor

Overview

Essential details

• Warranty:

• 3months-1year

• Place of Origin:

• Zhejiang, China

• Brand Name:

• Xinyuhai

• Model Number:

• 110SY-M04030S1

• Type:

• SERVO MOTOR

• Phase:

• Three-phase

• Protect Feature:

• Totally Enclosed

• AC Voltage:

• 220 V

• Efficiency:

• Ie 3

• Product Name:

• HIGH EFFICIENCY SERVO MOTOR

• Color:

• Black

• Rated Power:

• 1200W

• Voltage:

• 220V

• Rated Speed:

• 3000RPM

• Max. speed:

• 4000RPM

• Pole Pairs:

• 5

• Torque:

• 4-12 N.m

• Function:

• Ac Motor Specification

• Usage:

• Machinery Equipment

Supply Ability

• Supply Ability

• 10000 Set/Sets per Month

Packaging & delivery

• Packaging Details

wooden box or carton for servo motor

• Port

Ningbo/shanghai

• Picture Example:

•

• Lead time:

• Quantity(pieces)	1 - 10	11 - 100	>100
  Lead time (days)	5	15	To be negotiated

Specification

Product Description

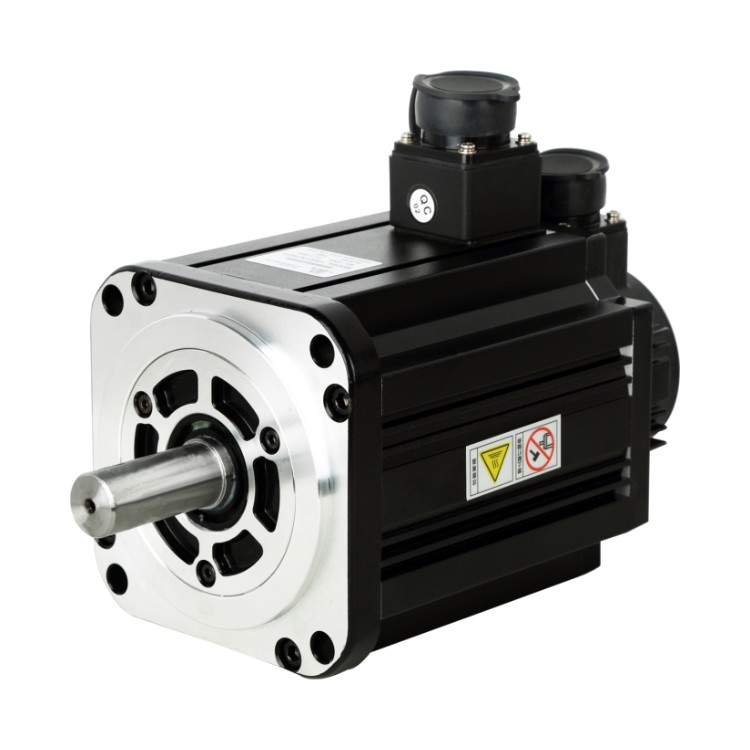

110 S1 Series AC permanent magnetic servo mortor As a superior servo motor of Xinyuhai，110 S1 series servo motor guarantees high rotation speed under low rated power when functioning，furthermore it ensured good stability because of unique design of whole motor. High quality and Stability are accomplished via accessories selection, assemblage and inspection. Xinyuhai 5 pole pairs series all adopt potting technique which assists on inertia, rigidity improvement, thus the whole machine gets a faster response. With relatively low limited temperature increase, torque force of the motor is greatly improved and overload capability is strengthened. Within very short time, the speed of 110S1 can up to maximum 4000 r/m according to different models. Strictly slected material accessories permanent magnetic design and serious assemblage also ensured longevity and durable usage of the motor. We offer customization options, some critical configuration parameters are changeable. If you need any special requirements, pls contact us FREELY. We strongly recommend that clients use our coordinated driver to achieve best functions of the motor.
