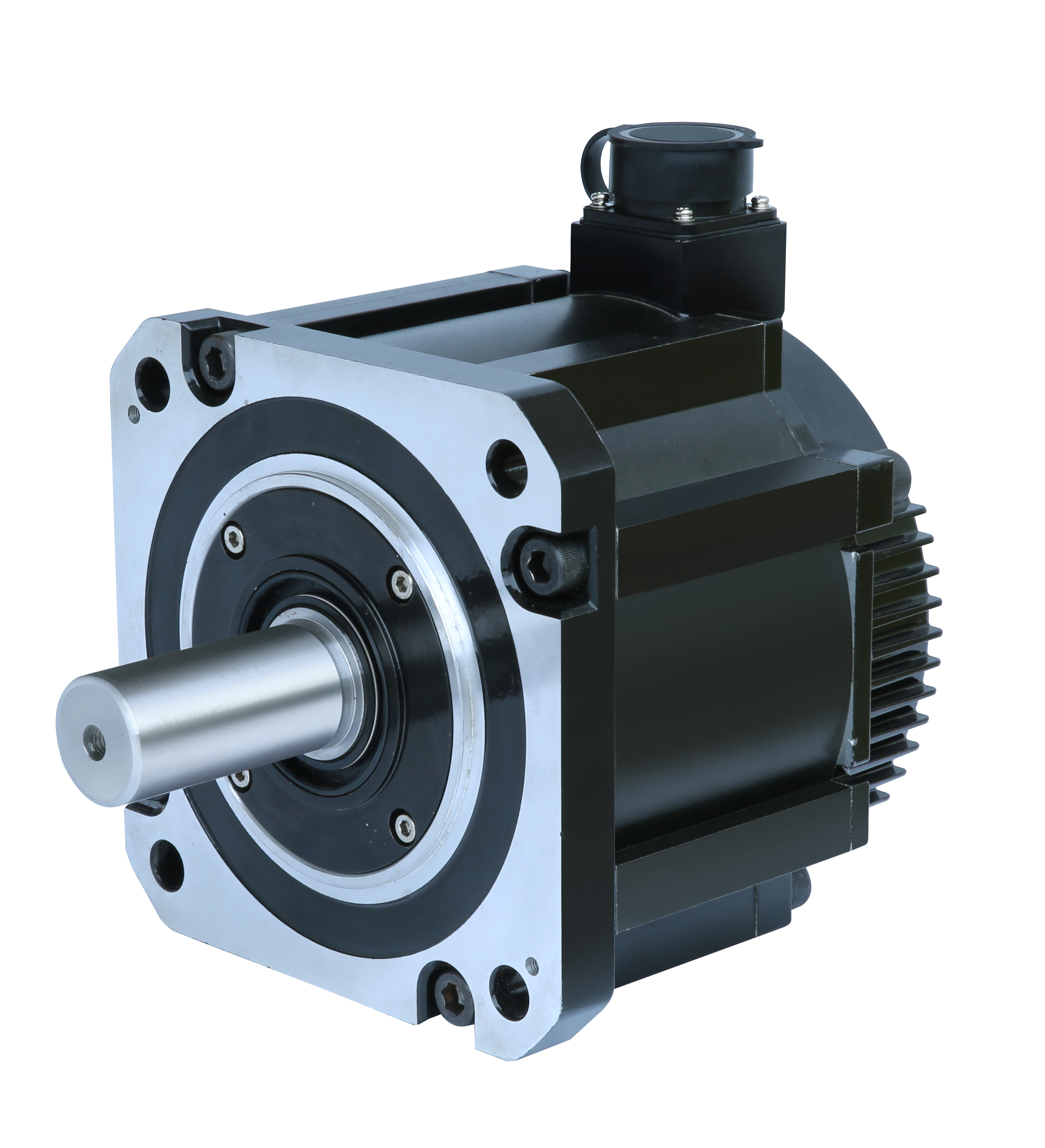

220V 2.3Kw 45N.m 3000rpm 180mm size encoder cable AC Servo Motor

Overview

Essential details

• Warranty:

• 2YEAR

• Place of Origin:

• Zhejiang, China

• Brand Name:

• XinYUHAI

• Model Number:

• 180SY-M15015S1-3

• Type:

• SERVO MOTOR

• Frequency:

• 50/60HZ

• Phase:

• Three-phase

• Protect Feature:

• IP65

• AC Voltage:

• 208-230 / 240 V

• Efficiency:

• IE4

• Product Name:

• 180mm SERVO MOTOR

• Rated current:

• 16A

• Rated Power:

• 2.3KW

• Protection class:

• IP65

• Environment temperature:

• 0 °C - 55 °C

• Certification:

• CE

• Max. speed:

• 3000rpm

• Max Torque:

• 45N.m

• Number of pole pairs:

• 5

• Application:

• Industry Machine

Supply Ability

• Supply Ability

• 10000 Set/Sets per Month

Packaging & delivery

• Packaging Details

wooden box or carton for servo motor

• Port

Ningbo/shanghai

• Picture Example:

•

• Lead time:

• Quantity(pieces)	1 - 10	11 - 50	>50
  Lead time (days)	10	15	To be negotiated

220V 2.3Kw 45N.m 3000rpm 180mm size encoder AC Servo Motor

1. High level of integration

2. Fast response
3. Protect perfectly
4. High reliability
Due to the limited size of the table,not all model parameters are listed,we supply different type and size,for more information,please contact us,also we can customized as your requirement
