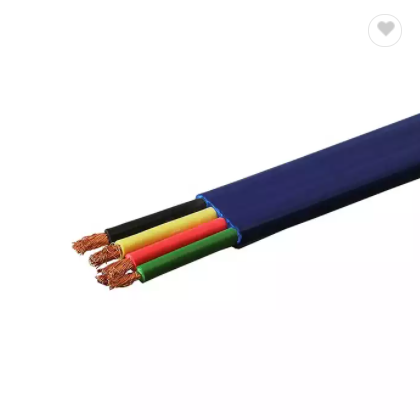

flat electrical cable two wire cable flat coil copper
2022-11-09 14:079440
| Price | N/A |
Packaging & delivery
Packaging Details
seal
Port
shanghai
Lead time:
Quantity(meters) 1 - 3000 >3000 Lead time (days) 15 To be negotiated
•Application:
Applied for power cable in general electric and electrical equipment.
Used for indoor wiring,mainly used for public facilities.
•Performance:
Operating voltage:300/300V 300/500V
Insulation resistance:>20 Gohm x cm
InMinimum bend radius:
Movable installation:12 x cable diameter
fixed installation:4x cable diameter
Operating temperature range:
Operating installation:-5℃to+80℃
Fixed installation:-40℃to+70℃
Oilresistant,flame retardant,and extension flammable:IEC 60332.1/the HD 405.2and VDE 0207-4
| Normal area (mm2) | Structure (mm) | Thickness of insulation (mm) | Nominal diameter (mm) | Thickness of Sheath (mm) | Averaged outside measurement(mm) | |
| Upper limit | Lower limit | |||||
| 2*0.75 | 45/0.2 | 0.6 | 2.17 | 0.9 | 4.0*6.2 | 4.6*7.1 |
| 2*1.0 | 32/0.2 | 0.6 | 2.33 | 0.9 | 4.2*.5 | 4.8*7.4 |
| 2*1.5 | 30/0.25 | 0.7 | 2.78 | 0.9 | 4.6*7.4 | 5.3*8.5 |
| 2*2.5 | 49/0.25 | 0.8 | 3.38 | 1 | 5.2*8.6 | 6.2*10.1 |
| 3*0.75 | 24/0.2 | 0.6 | 2.17 | 0.9 | 4.0*8.4 | 4.6*9.6 |
| 3*1.0 | 32/0.2 | 0.6 | 2.33 | 0.9 | 4.2*8.8 | 4.8*10.1 |
| 3*1.5 | 30/0.25 | 0.7 | 2.78 | 0.9 | 4.6*10.2 | 5.3*11.7 |
| 3*2.5 | 49/0.25 | 0.8 | 3.38 | 1 | ||
