CE CCC Certification AC electric motor 3 phase asynchronous motor 1.1kw 1.5kw 2.2kw 3kw 4kw 5.5kw 7.

Overview

Essential details

• Warranty:

• 3months-1year

• Place of Origin:

• Zhejiang, China

• Brand Name:

• Julante

• Model Number:

• YE2

• Type:

• Induction Motor

• Frequency:

• 50/60Hz

• Phase:

• Three-phase

• Protect Feature:

• Totally Enclosed

• AC Voltage:

• 380v

• Efficiency:

• IE 2

• Certification:

• CCC

Packaging & delivery

• Picture Example:

•

• Lead time:

• Quantity(pieces)	1 - 20	>20
  Lead time (days)	30	To be negotiated

Product Desciption:

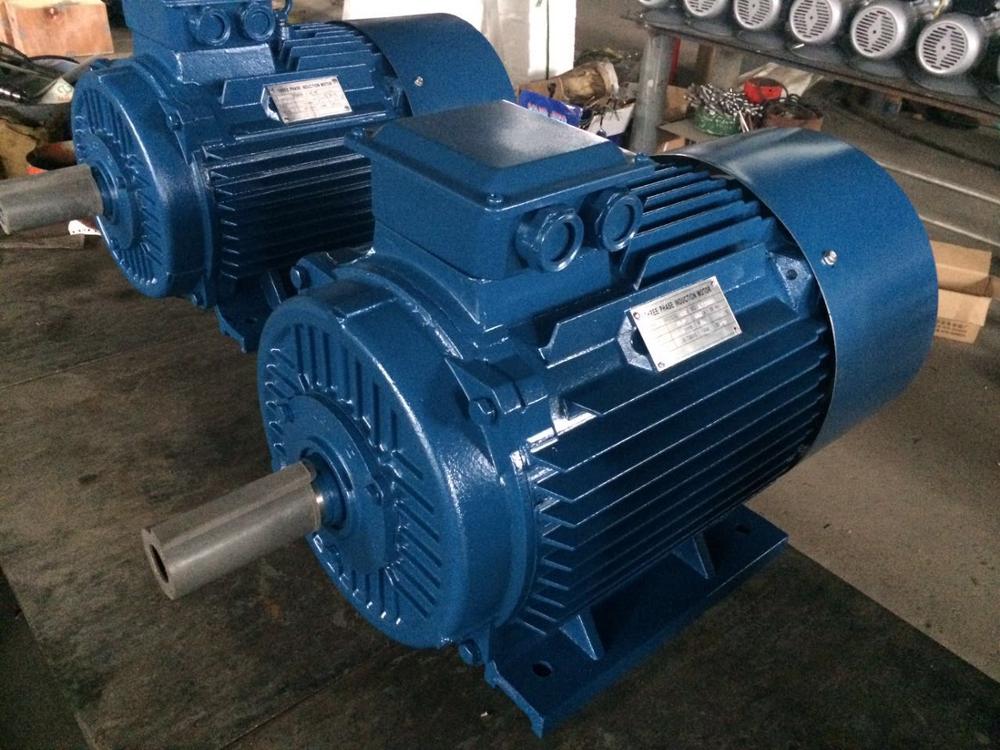

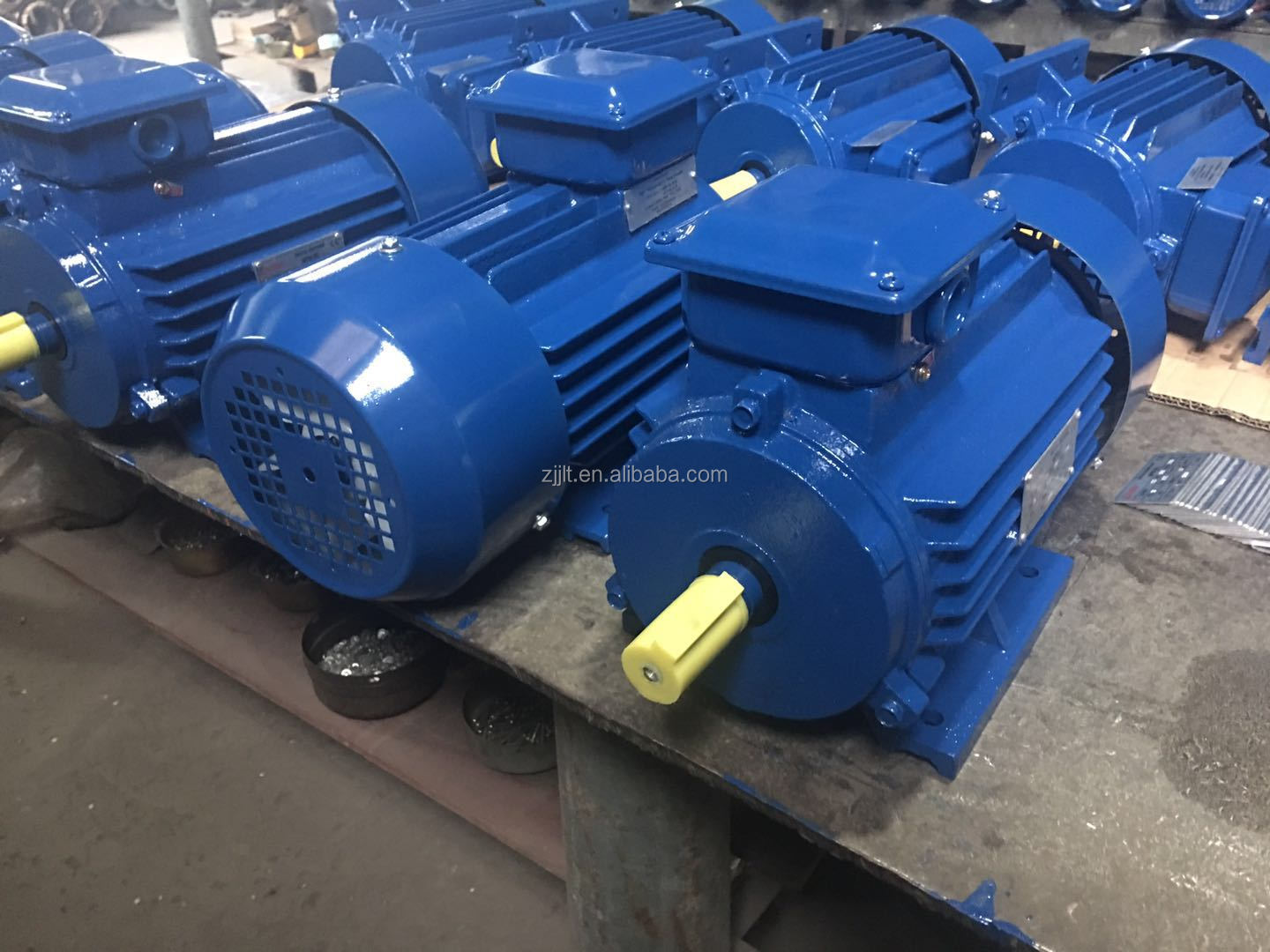

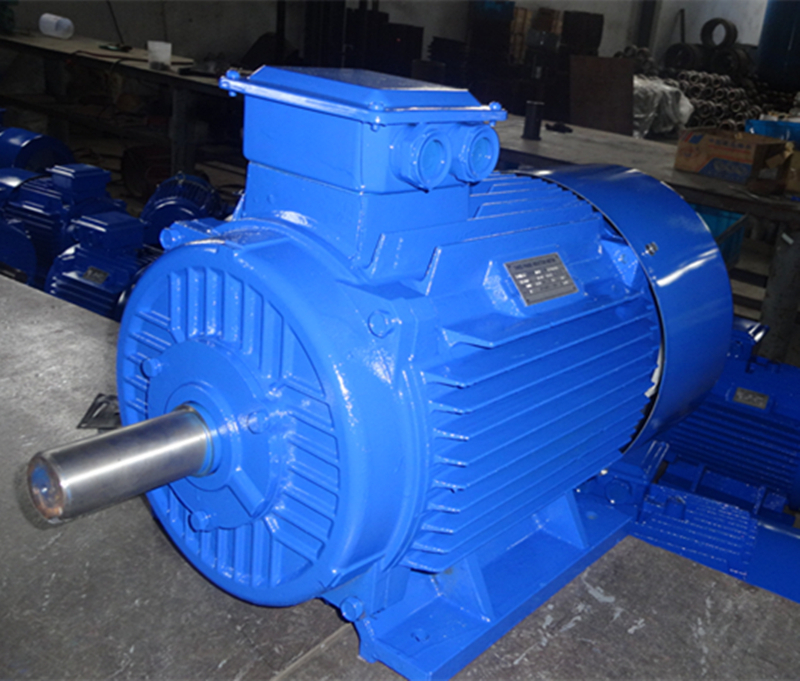

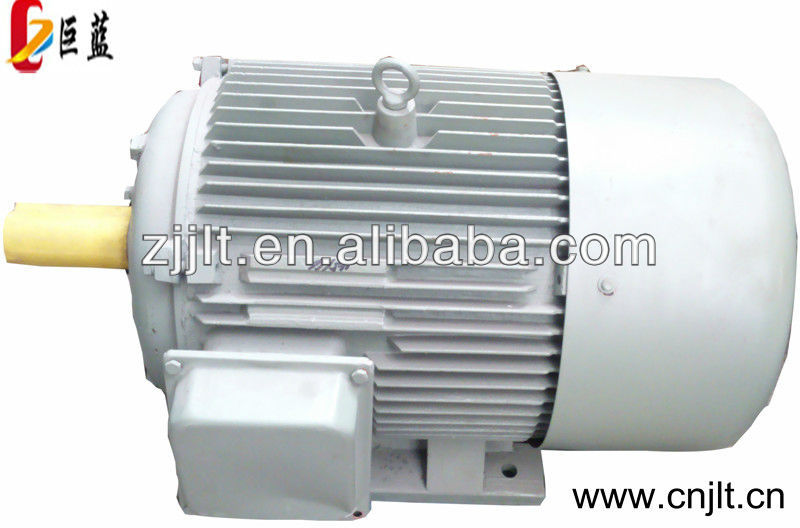

         3 Phase Ac Induction Motor is made of high quality cast iron.With optimized construction design,they can ensure the requirement of structure rigidity and intensity.Silicon steel plate is used in stator core and rotor core,it has good insulation on surface,low loss which ensures the higher efficiency.High quality insulation material combines the perfect insulation system which makes the insulation completely without clearance,high rigidity of the winding end,it can endure switching and reversing intensity,F class insulation makes the motor with higher heat stability and longer life.

 We use die-casting technology to ensure the stable quality of the rotor and aesthetic appearance.

   The design of bearing and motor construction focuses on motor type,force on the motor,speed,lubricate type,including bearing,design of oil sea and lubricant etc.It has the advantage of credible performance and easy maintenance.For the frame size from 250 and below,we generally use closed bearing;frame size above 250 we use open type.Bearing.Regreasing can be done during running.Perfect primer ensures the motors with good apperance and the motors are durable.We can also use special corrosion protection coating.

Application:

  Supply power:voltage variable ±5%,frequency variable:±2%,combine voltage and frequency variable:±5%.

  The following as options or customers' request:

 -Protection class IP56

 -Space heater

 -Heat protector

 -Vibration detector

 -Special mounting dimension and shaft dimension

 -Low vibration and low noise

 -Bearing thermometer PT100(frame size H180 and above)

 -Winding thermometer PT100

 -Special painting

 -Others
