Overview
Products Description
PERFORMANCE SPECIFICATIONS |
Model | TR4000WX | TR6000WX | TR8000WX |
Rating Voltage | 51.2V | 51.2V | 51.2V |
Cell model/Configuration | 3.2V100Ah/16S1P | 3.2V100Ah/16S2P | 3.2V280Ah/16S1P |
Rating Capacity | 100Ah | 200Ah | 280Ah |
Rated Energy(kWh) | 5.12kWh | 10.24kWh | 14.34kWh |
Max.Charge/Discharge Current(A) | 100A | 200A | 200A |
Voltage Range(Vdc) | 44.8V~58.4V |
Scalability | Up to 15 parallel |

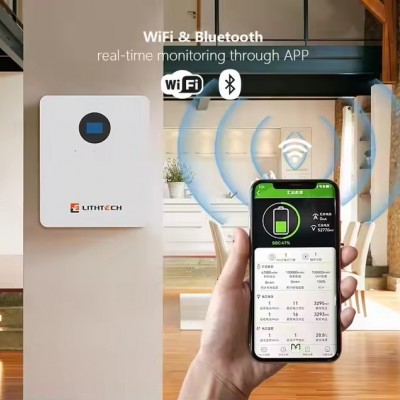

Communication | CAN/RS485/RS232/Bluetooth /WIFI |

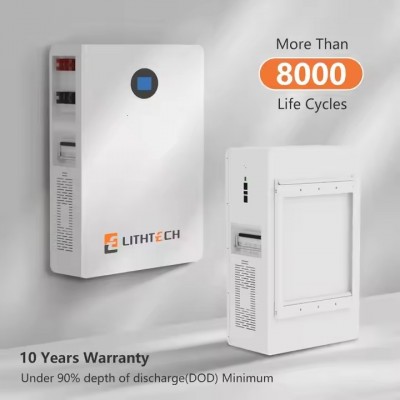

Cycle Life | ≥8000Cydes@25℃，80%DOD |
Design Life | ≥15Years(25°C) |
display usage | LCD color touch display |
MECHANICAL SPECIFICATIONS |
Weight(Net/Gross)(KG) | 53kg | 99.5kg | 132.5kg |
Dimension(W/D/H)(mm) | 600*500*167mm | 850x650x167mm | 850x650x245mm |
Installation Mode | Wall Mounnted |
IP Grade | IP54 |
SECURITY AND CERTIFICATION |
Safety(Pack） | UN38.3,MSDS,IEC62619(CB),CE-EMC |
Safety(Cell) | UN38.3,MSDS,IEC62619,CE,UL1973,UL2054 |
Protection | Smart BMS,Breake and Aerogel Fireproofing（optional） |
ENVIRonMENTAL SPECIFICATIONS |
Operating Temperature(°C) | Charge 0℃~65℃; Discharge -20℃~65℃ |
Altitude(m) | ≤2000 |
Humidity | ≤95%(Non-condensing) |
