Product Information

Product Information

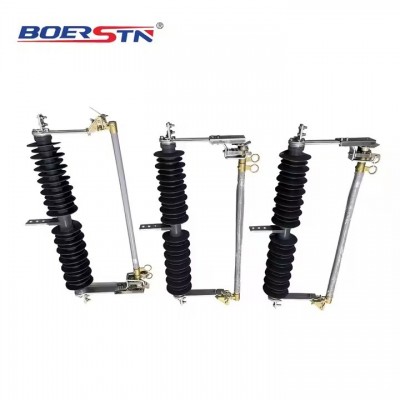

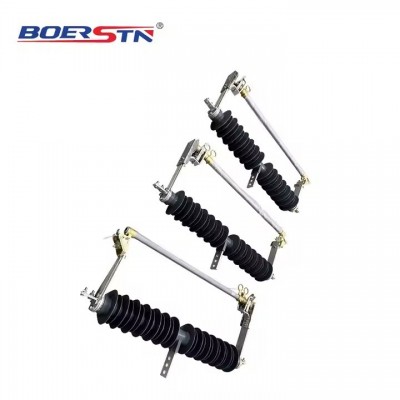

1. Model: HGRW-35KV/200

2.Rated voltage : 35KV

3.Max.system voltage : 40.5KV

4.Rated current: 200A

5.Rated breaking current: 8 KA

6. Rated power frequency dry withstand voltage (KVr.m.s) 1 min:125 KV

7.Rated power frequency wet withstand voltage 1min(Kvr.m.s): 95KV

8.Lightning impulse withstand voltage (Kvp): 1800

9. Creepage distance : 1400 mm

10. Weight: 13.8 kgs
