Overview
Essential details
Place of Origin:
Jiangsu, China
Brand Name:
THIM
Model Number:
FXBW 4 -230/70
Type:
Insulator
Material:
Composite Polymer
Application:
High Voltage
Rated Voltage:
35KV
Tensile Strength:
70KN
key words:
silicone suspension insulator
Color:
Customized
Feature:
High Temperature Resistance
Certification:
IEC,ISO,ASTM,ANSI,GB/T
Adantage:
Good pollution/aging resistance,high mechanical strength
Size:
Customized Size
Product name:

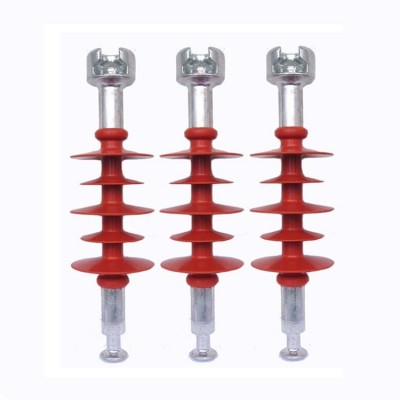

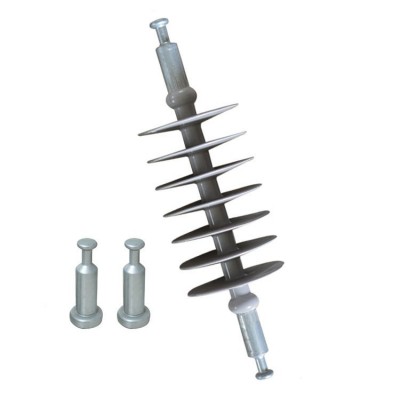

35 kv composite silicone suspension insulator
Supply Ability
Supply Ability
1000 Piece/Pieces per Day
Packaging & delivery
Packaging Details
according to your requirement for 35 kv composite suspension insulators for high voltage
Port
Shanghai
Custom Polymer Suspension Long Rod 15kv polymer insulator
Our main products are as follows:
1.10kv -750kv silicone rubber insulator
2.Diam.5-180mm Insulator core rod(epoxy resin rod)
3.Many kinds of insulator fittings such as ball,socket,Tongue,Clevis,Flange and so on.
4.Silicone rubber
our website : http://thim.en.alibaba.com/
Product Description
1. Shed connected with core by integral foring
2. The thinkness of housing > 3mm,unifirm to IEC Standard
3. Acid resistant,hight temperature resistant of epoxy fiberglass core
4. metal end fittings,core and sheds connected by new crimping process
5. Hot galvanization and technology of rareearth aluminum coating to avoid coating shedding prolonging the service life
| Type | Rated voltage (kv) | Rated mechanical tensile load (kN) | Connection structure marking | structure height (mm) | Minimum arcing distance (mm) | Creepage distancce (mm) | Full wave lighting impulse withstand voltage not less than voltage | Swithing impulse withstand voltage not less than | 1 min wet power frequency withstand voltage (effective value) not less than |
| FXBW-10/70 | 10 | 70 | 16 | 400±15 | 230 | 600 | 110 | - | 40 |
| FXBW4-10/70 | 10 | 70 | 16 | 430±15 | 230 | 450 | 70 | 48 | |
| FXBW4-10/70 | 10 | 70 | 16C | 340±15 | 160 | 400 | 60 | 48 | |
| FXBW4-10/100 | 10 | 100 | 16 | 430±15 | 230 | 450 | 70 | 48 |
>>see more
(1)Small volume,light weight,sheds have good elasticity,not broken,con venient transportation and installation, economy.
(2)High mechanical strength FRP ROD has high tensile strength, small size,light weight,high tensile strength.
(3)High antifouling property,good aging resistance performance,high anti pollution flashover voltage , good electric corrosion resistance.
(4)Easy installation,greatly reduce mainternance charges and manual labor intensity.
(5)Simple production process,short delivery time.
