Overview
Essential details
Place of Origin:
Jiangsu, China
Brand Name:
THIM
Model Number:
FPQ-33/8
Type:
Insulator
Material:
Composite Polymer
Application:
High Voltage
Rated Voltage:
33KV
Tensile Strength:
8KN
key words:
suspension insulator
Color:
Customized
Certification:
IEC,ISO,ASTM,ANSI,GB/T
Product name:
69kV Composite Polymer suspension insulator
Feature:
High Temperature Resistance
advantage:
Good pollution/aging resistance,high mechanical strength
Size:
Customized Size
Supply Ability
Supply Ability
1000 Piece/Pieces per Day
Packaging & delivery
Packaging Details
according to your requirement for 69kV Composite Polymer suspension insulator
Port
Shanghai
Lead time:
Shipped in 15 days after payment

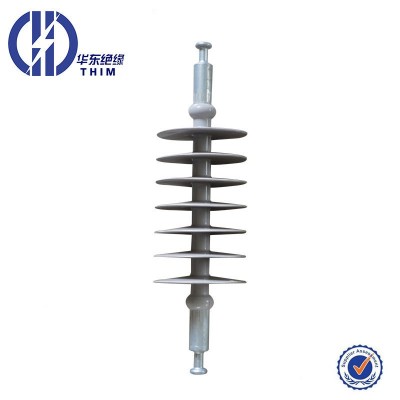

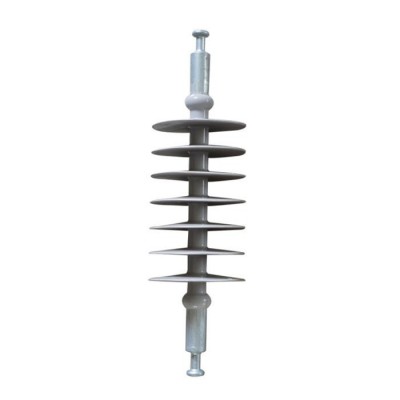

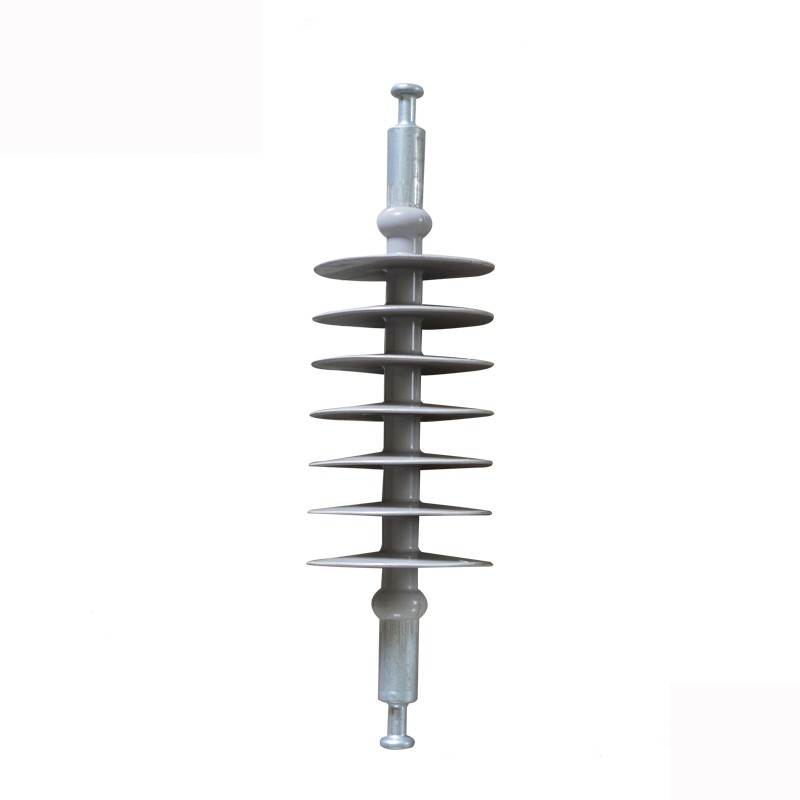

69kV Composite Polymer suspension insulator
Our main products are as follows:
1.10kv -750kv silicone rubber insulator
2.Diam.5-180mm Insulator core rod(epoxy resin rod)
3.Many kinds of insulator fittings such as ball,socket,Tongue,Clevis,Flange and so on.
4.Silicone rubber
our website : http://thim.en.alibaba.com/
Product Description
Type | No. Of Sheds | “X” Length inches (mm) | Diameter Inches (mm) | Leakage Distance Inches (mm) | Dry Arc Distance inches (mm) | Lighting withstand voltage | Wet power frequency voltage | Coupling size | SML Pounds (kN) | |
D | d | |||||||||
FXBW-10/70 | 4 | 310 | 105 | 75 | 350 | 152 | 90 | 40 | 16 | 70 |
FXBW-36/40 | 9 | 440 | 130 | 90 | 950 | 320 | 230 | 150 | 16 | 40 |
FXBW-36/100 | 9 | 483 | 130 | 90 | 950 | 320 | 230 | 150 | 16 | 100 |
FXBW-35/70 | 12 | 660 | 135 | 110 | 1600 | 526 | 230 | 150 | 16 | 70 |
FXBW-35/100 | 12 | 680 | 135 | 110 | 1600 | 526 | 230 | 150 | 16 | 100 |
FXBW-66/70 | 20 | 980 | 135 | 110 | 2500 | 826 | 410 | 185 | 16 | 70 |
FXBW-66/100 | 20 | 1000 | 135 | 110 | 2500 | 826 | 410 | 185 | 16 | 100 |
FXBW-66/120 | 20 | 1040 | 135 | 110 | 2500 | 826 | 410 | 185 | 16 | 120 |
FXBW-110/70 | 26 | 1190 | 135 | 110 | 3500 | 1050 | 550 | 250 | 16 | 70 |
FXBW-110/100 | 26 | 1210 | 135 | 110 | 3500 | 1050 | 550 | 250 | 16 | 100 |
FXBW-110/120 | 26 | 1250 | 135 | 110 | 3500 | 1050 | 550 | 250 | 16 | 120 |
FXBW-220/120 | 54 | 2470 | 150 | 120 | 6300 | 2130 | 1000 | 395 | 16 | 120 |
FXBW-220/210 | 56 | 2470 | 170 | 120 | 6300 | 2155 | 1000 | 395 | 20 | 210 |
(1)Small volume,light weight,sheds have good elasticity,not broken,con venient
transportation and installation, economy.
(2)High mechanical strength FRP ROD has high tensile strength, small size,light
weight,high tensile strength.
(3)High antifouling property,good aging resistance performance,high anti pollution
flashover voltage , good electric corrosion resistance.
(4)Easy installation,greatly reduce mainternance charges and manual labor intensity.
(5)Simple production process,short delivery time.
>>see more
1. Shed connected with core by integral foring
2. The thinkness of housing > 3mm,unifirm to IEC Standard
3. Acid resistant,hight temperature resistant of epoxy fiberglass core
4. metal end fittings,core and sheds connected by new crimping process
5. Hot galvanization and technology of rareearth aluminum coating to avoid coating
shedding prolonging the service life
Product characteristics
1.No flaw,crack in the surface and interior ,each bar color uniform(green or light yellow).
2.Can withstand the sawing,milling,planning,drilling,lathe and other mechanical processing.
3.Internal thread can be tapping with screw tap,external thread can be polished,but not allowed
to bear overload.
4.It has good damping,creep resistance,fatigue resistance,fracture resistance ,high temperature
resistance,stress corrosion resistance etc.
