Overview

Essential details

• Place of Origin:

• Jiangsu, China

• Brand Name:

• THIM

• Model Number:

• 33kv

• Type:

• Insulator

• Material:

• Composite Polymer

• Application:

• High Voltage

• Rated Voltage:

• 10KV~220KV

• Tensile Strength:

• 8kn

• Certification:

• IEC61109

• Color:

• Red. Light grey

• Product name:

• Higher tensile strength polymer composite insulator

• Feature:

• good damping,creep resistance,fatigue resistance,fracture resistance

• Advantage:

• high temperature ,resistance,stress corrosion resistance

Supply Ability

• Supply Ability

• 1000 Piece/Pieces per Day

Packaging & delivery

• Packaging Details

packed in cartons

• Port

Shanghai

• Lead time:

• Shipped in 15 days after payment

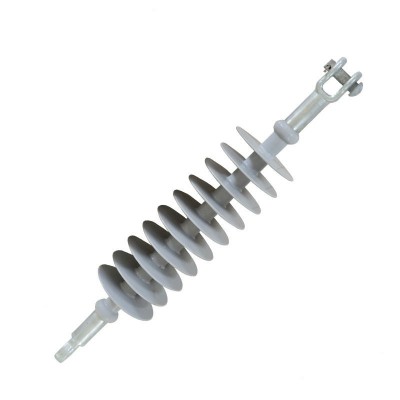

High tensile strength polymer composite insulator

Product Description

Our main products are as follows:
1.10kv -750kv silicone rubber insulator
2.Diam.5-180mm Insulator core rod(epoxy resin rod)
3.Many kinds of insulator fittings such as ball,socket,Tongue,Clevis,Flange and so on.
4.Silicone rubber

our website : http://thim.en.alibaba.com/

1.  Shed connected with core by integral foring

2.  The thinkness of housing > 3mm,unifirm to IEC Standard

3.  Acid resistant,hight temperature resistant of epoxy fiberglass core

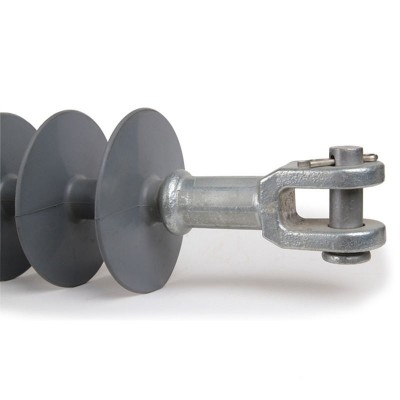

4.  metal end fittings,core and sheds connected by new crimping process

5.  Hot galvanization and technology of rareearth aluminum coating to avoid coating

     shedding prolonging the service life

 Product characteristics

1.No flaw,crack in the surface and interior  ,each bar color uniform(green or light yellow).

2.Can withstand the sawing,milling,planning,drilling,lathe and other mechanical processing.

3.Internal thread can be tapping with screw tap,external thread can be polished,but not allowed

   to bear overload.

4.It has good damping,creep resistance,fatigue resistance,fracture resistance ,high temperature

   resistance,stress corrosion resistance etc.
