Detail

Products Description

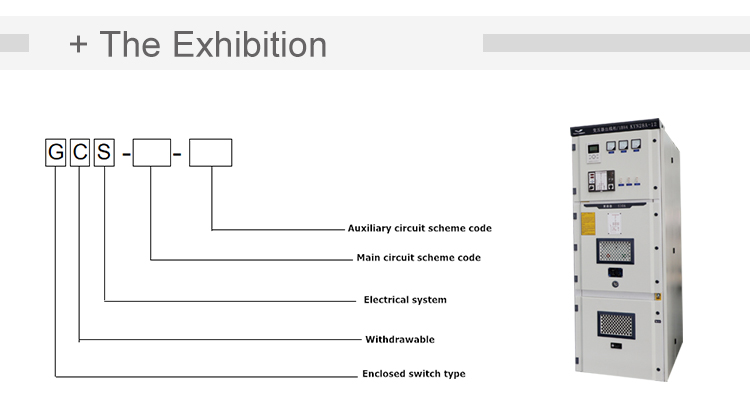

GCS Low-voltage Withdrawable Switchgear

GCS low-voltage withdrawable switchgear, also called low-voltage drawer cabinet, has high technical performance indicators, and can adapt to electricity market development. Our low-voltage withdrawable switchgear can compete with the existing imported products and has been widely used by power users.

Product Features:

1.Increase the heat capacity of the adapter, and greatly reduce the additional temperature rise caused by the temperature rise of the adapter to the connector, cable head, and spacer plate. 2.The separation between functional units and compartments is clear and reliable, and the failure of one unit does not affect the work of other units, so that the failure is limited to a minimum. 3.The horizontal arrangement of the busbar makes the device have good dynamic and thermal stability, and can withstand the impact of 80/176kA short-circuit current. 4.The number of circuits in a single MCC cabinet is as many as 22, and the needs of large single-unit power generation, petrochemical systems and other industries for automated electric door (machine) groups are fully considered. 5.The connection between the device and the external cable is completed in the cable compartment, and the cables can be entered and exited up and down. The zero sequence current transformer is placed in the cable compartment, making installation and maintenance easy. 6.The drawer unit has a sufficient number of secondary plug-ins (32 pairs for 1 unit and above, 20 pairs for 1/2 unit). It can meet the requirements of the number of connection points of the computer interface and the automatic control loop.

Product Standard:

1.IEC439-1 "Low-voltage Complete Switch and Control Equipment" 2.GB7251 "Low-voltage Complete Switchgear" 3.ZBK36001 "Low-voltage Withdrawable Switchgear"

Conditions of Use:

1.The ambient air temperature is not higher than +40°C and not lower than -5°C. 2.For indoor use, the altitude of the place of use shall not exceed 2000m. 3.When the device is installed, the inclination to the vertical plane should not exceed 5°, and the whole group of cabinets should be relatively flat (in accordance with GBJ232-82 standard). 4.The device should be installed in a place where there is no violent vibration and impact and not enough to cause undue corrosion on electrical components.

view more >>Recommended by seller

Switchgear for Sale metal Armored Removable Switchgear Low Voltage Switchgear

$2,900.00 - $3,000.00 / unit

1.0 unit

Factory price high quality mobile transformer substation electric distribution transformer substation 35kva 50kva 6kv 6.3kv for

$980.00 - $1,100.00 / unit

1.0 unit

Dry Type Transformer Supplier Philippines 100kva 125kva 160kva 10/0.4kv 11/0.4kv 0.415kv Electric Power Transformers

$1,000.00 - $1,100.00 / unit

1.0 unit

1250 Kva Oil Distribution Transformer Step up Transformers Indoor Outdoor Industrial Residential Price 400v 415v Step Down Power

$2,250.00 - $2,300.00 / unit

1.0 unit

Product packaging

Company Profile

VR

TSTY Electric Co., Ltd. was established in 2007 and is an excellent and reliable transformer manufacturer in China. The company mainly develops and produces oil-immersed transformers, dry-type transformers, box-type substations and high and low voltage complete sets of equipment. The equipment put into production and operation of the project advocates energy saving, intelligence, information and mechanization. The company has established the Henan Triangle Energy-saving Transformer Engineering Technology Research Center, with 71 utility model patents and 15 invention patents. With years of accumulation in the transformer industry and strong technological innovation capabilities, it provides comprehensive solutions for the Chinese power industry. The company is a key procurement unit for large-scale national projects such as State Grid, State Railway Administration, Zhengzhou Coal Group, Pingmei Group and South-to-North Water Diversion.
