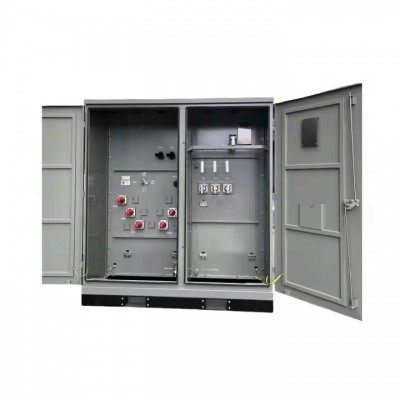

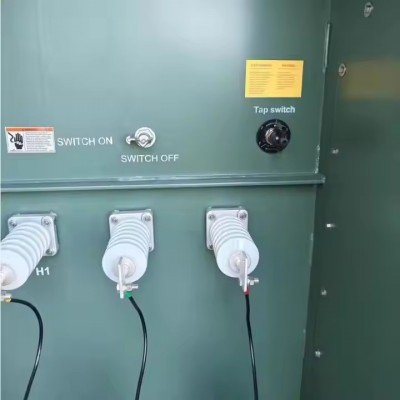

Pad Mounted Transformer
Primary Voltage Ratings: 34.5-19.92/13.8-7.957/13.2-7.62/12.47-7.2 or others
Secondary Voltage Ratings: 240/480/480Y-277/600Y-347 or others
H.V. Tap Range: ±2x2.5% or others
Connection Type: Dyn11/Yyn0 or others
Type: Loop feed/Radial feed
Ryan is a professional transformer manufacturer. Various international standards can be customized for your transformer, such as: IEEE/ANSI, CSA, IEC, etc. Ryan produces transformers with UL/cUL certifications.
Rated Capacity (kVA) | Voltage Combination (kV) | Connection group symbol | No-load loss
(W) | Load loss
(W) | No-load current
% | Short-circuit impedance
% |
H.V.
(kV) | High voltage tapping | L.V.
(kV) |
30 | 6 6.3 10 10.5 11 | ±2x2.5
±5 | 0.4 | Dyn11
Ynyn0 | 100 | 630 | 2.1 | 4.0 |
50 | 130 | 910 | 2 |
63 | 150 | 1090 | 1.9 |
80 | 180 | 1310 | 1.8 |
100 | 200 | 1580 | 1.6 |
125 | 240 | 1890 | 1.5 |
160 | 280 | 2310 | 1.4 |
200 | 340 | 2730 | 1.3 |
250 | 400 | 3200 | 1.2 |
315 | 480 | 3830 | 1.1 |
400 | 570 | 4520 | 1 |
500 | 680 | 5410 | 1 |
630 | 810 | 6200 | 0.9 | 4.5 |
800 | 980 | 7500 | 0.8 |
1000 | 1150 | 10300 | 0.7 |
1250 | 1360 | 12000 | 0.6 |
1600 | 1640 | 14500 | 0.5 |
We provide you with customized services, if you have any questions about the parameters table, please click here. |
