2.5mm2 6mm2 10mm2 DC Solar PV Copper Electric Wire PV1-F Solar Panel PV Cable

Price:	N/A
Min quantity:
Quantity:
Deliver:	In days
Area:	China
Expiry:	Long-term
Edit time:	2022-11-08 16:05
Hits:	914

Company integrity file

Yanggu Xinhui Cable Co., Ltd.
verified [Archives]
Paid 0.00 Dolla deposit
ContactMr. xinhui li(Mr.)
Member [Offline] [Add to friend] [Send message]
Telphone
AreaChina
AddressXiangguang Qianyi Zoology Ind. Park, Liaocheng, Shandong, China

more>New Products

High Quality Copper Core Conductor Electric RVV 2x0.75MM 4x2.5MM 3x0.75MM2 4x1.5MM2 Power Cable

High Quality Copper

H07RV-F 1.5mm 2.5mm 4.5mm 6mm RVV 4core 3core 2core royal cord wire flexible copper conductor cables

H07RV-F 1.5mm 2.5mm

FREE SAMPLE RVS Two Cores Twisted Pair Copper Conductors PVC Insulated Twisted Flexible Wire

FREE SAMPLE RVS Two

Copper Core PVC Insulated Soft Sheathed Wire BVR Wire for Daily Household Appliances Connecting and

Copper Core PVC Insu

RVV 4 core power cable 1.5mm 2.5mm 4mm 6mm flexible wires copper

RVV 4 core power cab

RVV RVVP cable 1pair 2pair 4pair 6pair 1.5mm 2.5mm 4mm 6mm flexible shielded unshielded 24awg 16awq

RVV RVVP cable 1pair

Detail

Product Description

Specification

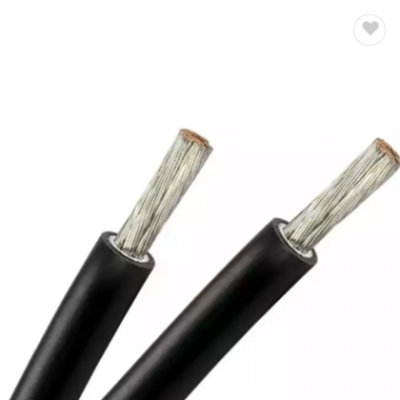

PV-1F Solar Photovoltaic Cable

PV-1F Solar Photovoltaic CableFeatures: Low smoke halogen free flame retardant, excellent cold resistance, UV resistance, ozone
resistance and weather resistance. Resistant to cuts and penetrations.
Ambient temperature: -40°C-+90°C;
maximum conductor temperature 120°C (allowable short-circuit temperature of 200°C within 5s).AC0.6/1kV DC1.8Kv.
Design life: 25 years
Conductor: GB/T3956 class 5 stranded tinned conductor.
Insulation: Low-smoke halogen-free flame retardant cross-linked polyolefin double-layer insulation.

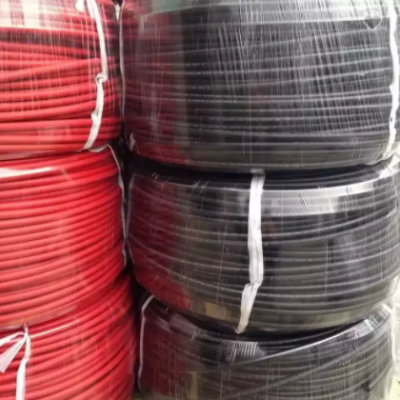

Sheath: Low smoke halogen free flame retardant cross-linked polyene sheath color black and red. The structure is shown in the
table below

Cross-sectional area mm2	Monofilament diameter mm / number of pieces	conductor outer diameter mm	Insulation thickness mm	Sheath thickness mm	Finished outer diameter mm	Approximate weight of finished product km/kg
1.5	0.25/30	1.6	0.5	0.5	3.6-4.0	32.33
2.5	0.25/49	2.1	0.5	0.5	4.1-4.4	36.82
4	0.30/56	2.6	0.7	0.7	5.4-5.7	67.89
6	0.30/84	3.2	0.7	0.7	6.5-6.9	75.44
10	0.40/80	4.1	0.8	0.7	7.1-7.5	95.64
16	0.40/126	5.2	0.8	0.7	8.2-8.7	110.46
25	0.40/196	6.5	1	0.9	10.3-10.7	175.75
35	0.40/276	7.7	1	0.9	11.5-12.5	196.22
