Product Description

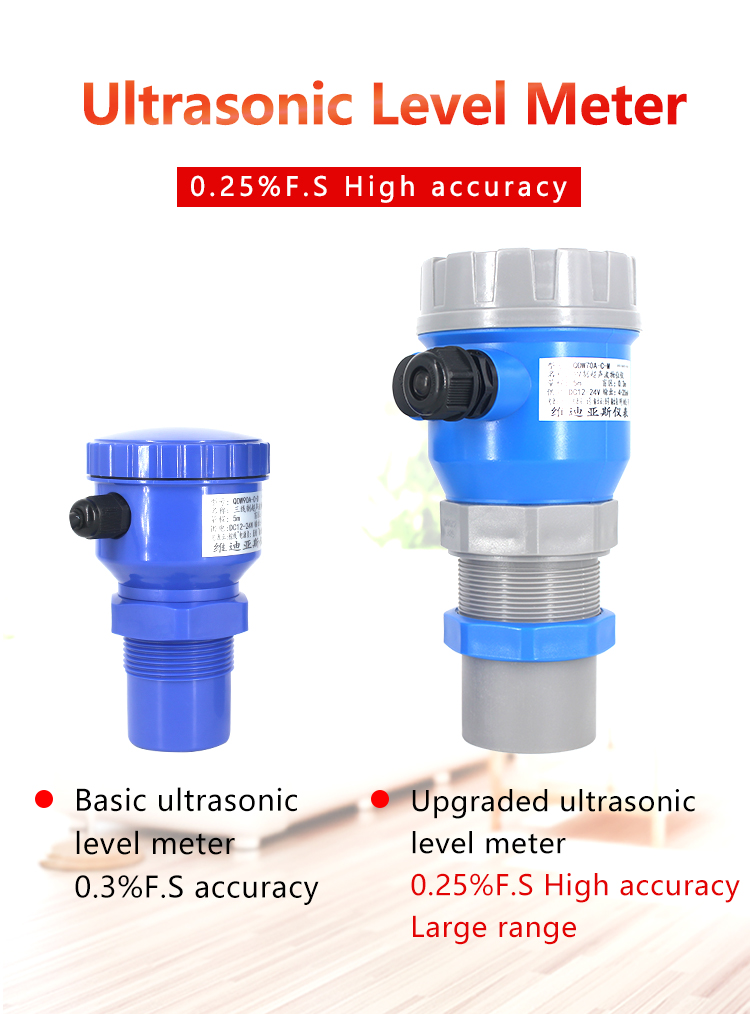

<1>. Ultrasonic Level Meter is microprocessor controlled digital level instrument.
<2>. As a result of non-contact measurement, the measured media is almost unlimited, and can be widely used for measuring the height of a variety of liquid and solid materials.
Technical Parameters
| Model | QDY70A Ultrasonic level meter |
| Measuring range | 0~20m |
| Blind area | 0.25m~0.4m |
| Ranging accuracy | ±0.25%F.S (Standard condition) |
| Ranging resolution | ≤2mm (Built-in temperature compensation) |
| Operation temperature | -10~60℃ (Customization) |
| Display | LED(LCD optional) |
| Output signal | 4~20mA,0~5V,0~10V,RS485,Relay,Hart,etc |
| Power supply | DC12V/DC24V, AC220V |
| Electrical interface | PG9 |
| Protection grade | IP65 |
| Response time | 1.5s |
| Shell material | ABS |
| Probe material | ABS/PE/PP/PC/PTFE |
| Installation interface | M59*2 |
| Ex-proof class | Exia Ⅱ BT4Gb |
| Power requirements | >1A |

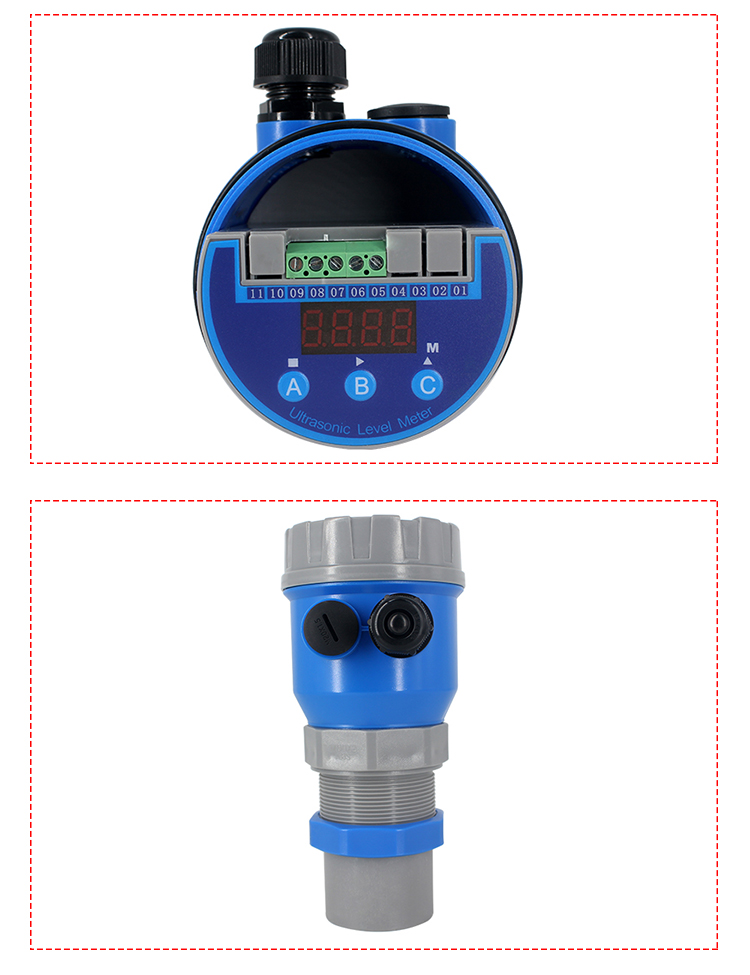

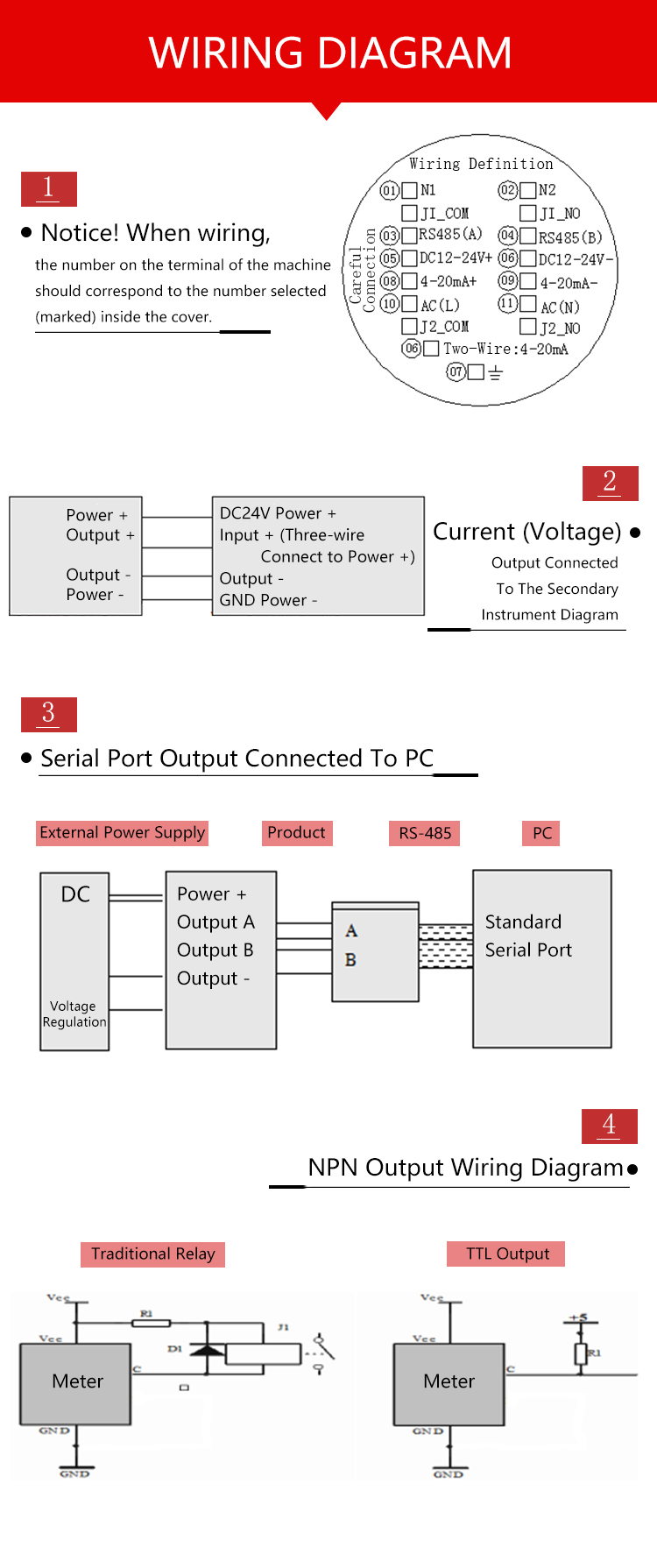

Wiring Diagram

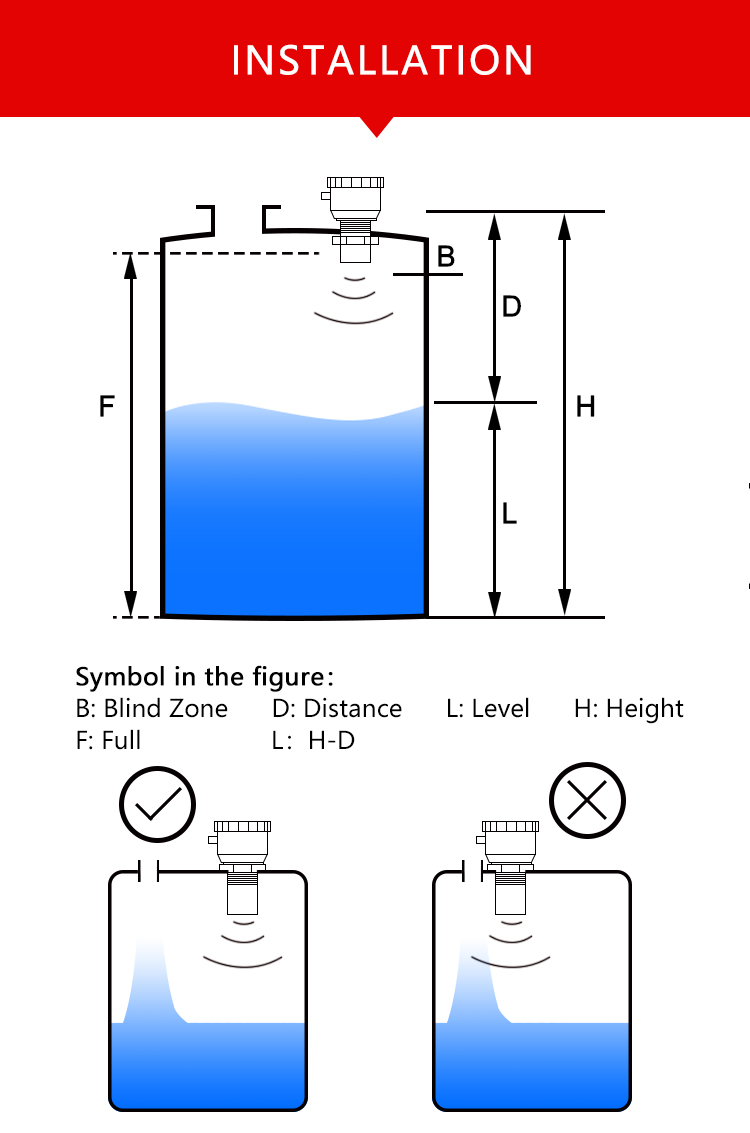

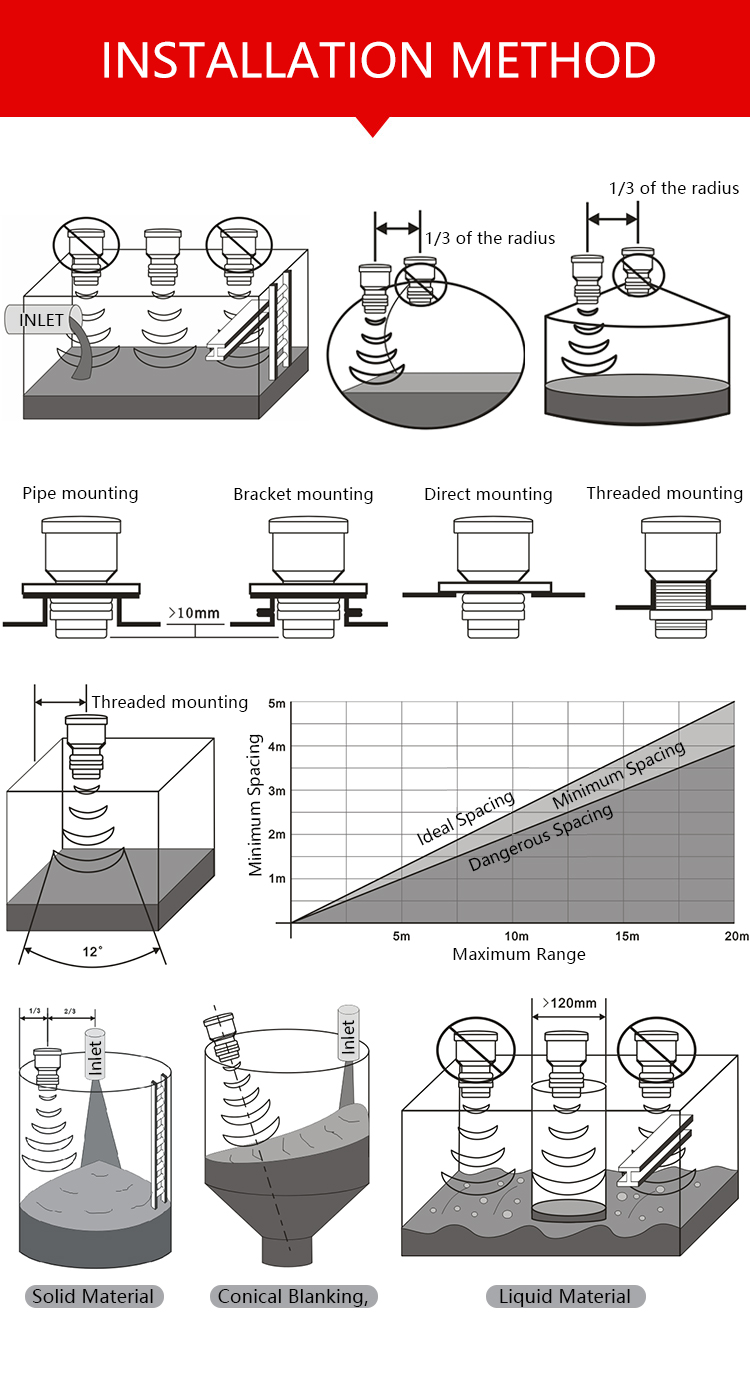

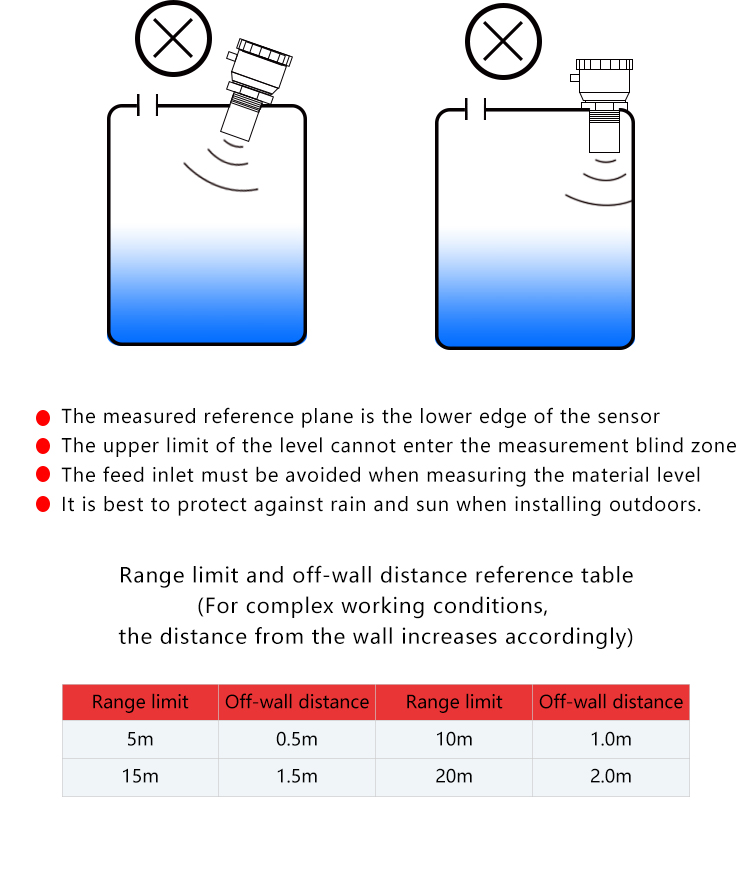

Installation
