Video Description
Related Products
A Variety of Specification
To meet your requirements for current transmitting

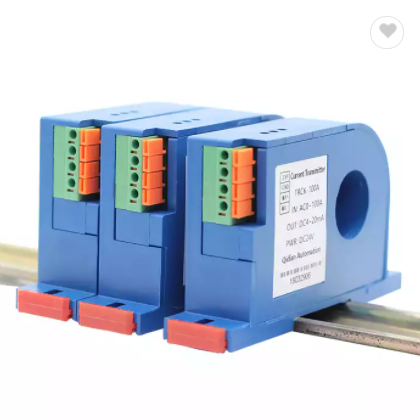

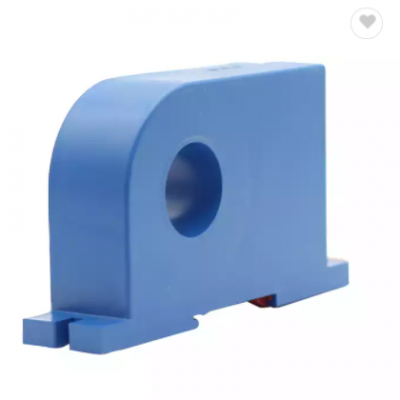

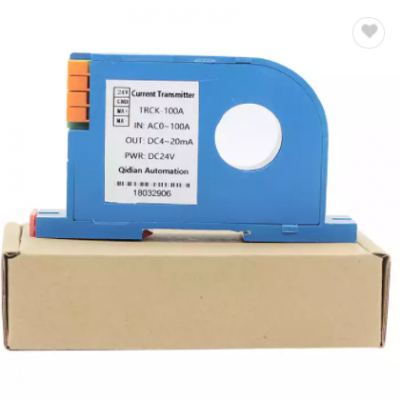

Product Introduction
<1>Product uses: Used for measuring DC, AC, pulse current and other arbitrary waveform current.
<2>Product advantages: Better cost performance, low power consumption, small volume, light weight, easy installation, perforation input and no insertion loss.
<3>Product application: Frequency conversion speed control system, electric welding machine, electrochemistry, power supply monitoring, electric locomotive, low level starting protection.
<4>The input, output, power and outer shell are isolated, with strong anti-interference ability and high reliability.
<5>Full channel configuration,Parameter customizable.
NOTE:This link is for 1 in 1 out,DC 0-200A input,4-20mA output and 24vdc power supply.We are a manufacturer.So if you need other parameters,please contact us.
Technical Parameters
| Technical Parameter | |
| Installation | Plane screw fixation |
Original Side rated current | 100A;200A;500A;800A;1000A;Customized |
Original Side Measuring Range | 100A~1200A |
Rated Output | 5V;DC0~20mA;DC4~20mA;Customized |
| Auxiliary Power Supply | DC12V;DC24V;DC±12V;DC±15V |
| Load Capacity | Voltage Output:5mA; Current Output:6V |
| Temperature Drift | ≤500PPM/℃ |
| Consumption Current | ≤25mA |
| Respond Time | <200ms |
Isolation Pressure Resistance | 2.5kV/50Hz,1Min |
| Quiescent Current | <10mA |
| Action Current | <40mA |
| Frequency Bandwidth | DC~20KHz |
| Offset Voltage | ≤20mvV |
| Zero Point Output | ≤0.15mA |
| Working Temperature | -10℃~+70℃ |
| Storage Temperature | -25℃~+85℃ |
Dimension
Wiring Diagram
Selection
Product Display
Certifications
Company&Factory
