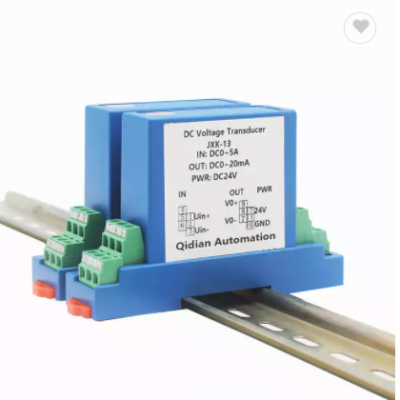

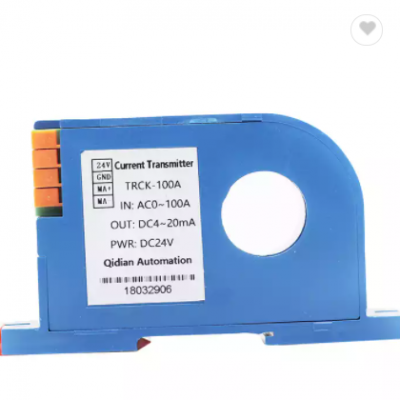

High accuracy peforation AC/DC Current sensor AC/DC Voltage transducer transmitter with DC24V Power supply
Introduction
<1>. Usage: Used for measuring DC, AC, pulse current and other arbitrary waveform current.
<2>. Advantages: Fixed installation of flat screws, high precision, good linearity, quick reaction, low temperature drift, high frequency band wide anti-interference ability, no insertion loss.
<3>. Application: Frequency conversion speed control system, electric welding machine, electrochemistry, power supply monitoring, electric locomotive, Nc machine tool.
<4>. imported components, high integration. The input, output, power and outer shell are isolated, with strong anti-interference ability and high reliability. Full channel configuration,Parameter customizable.
Technical parameters
| Power Supply | |
| Power supply | DC5V, DC12V, DC15V, DC24V, ±15V, DC12~28V, AC220V, Customizable |
Input | |
| Input signal | AC/DC 0~1500A, AC/DC 0~1000V, Customizable |
| Output | |
| Output signal | 4-20mA, 0-20mA, 0-5V, 0-10V, Customizable |
| Other Parameters | |
| Accuracy | 0.2%F.S;0.5%F.S. |
| Respond time | <200ms |
| Linearity | 0.5% |
| Temperature drift | ≤500PPM/℃ |
| Band width | DC~100KHz |
| Consumption of current | 10mA+Output current |
| Isolation voltage resistance | 2.5k/50Hz,1Min |
| Offset voltage | ≤20mvV |
| Zero output | ≤0.15mA |
| Di/dt follow | >50A/uS |
| Working ambient | -10℃~+70℃ |
| Storage ambient | -25℃~+85℃ |
| Installation method | Din35mm rail / plane screw fixation |
