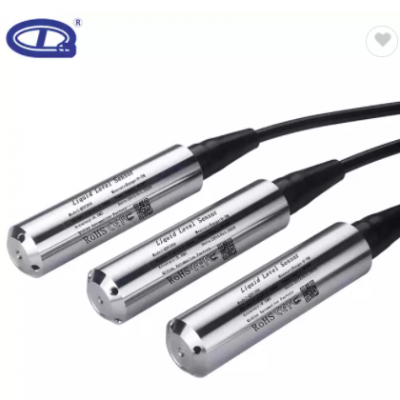

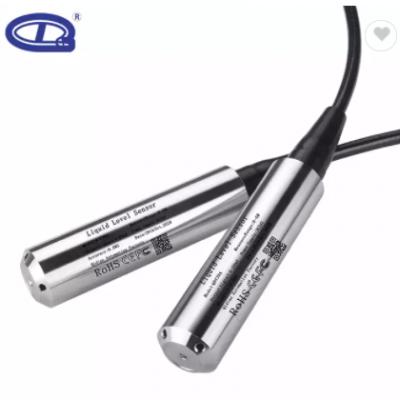

<1>. QDY30A submersible Water Level Sensor, its 304 &316 stainless steel and hermetically sealed housing make it suitable for most industrial liquids .
<2>. The welded housing is tested in-house via a helium leak tester to ensure proper protection. Ventilation tube in the cable automatically compensates for changes in atmospheric pressure above the tank.
<3>. The conductors of the cable are also isolated from the outside environment to keep the level sensor operational for long-term use.
Measuring range | 0-0.2-500m range can becustomized |
Overload capacity | 200% |
Responsetime | 5ms(upto90%FS) |
Medium temperature | -40~60°℃ |
Ambienttemperature | -40~85℃ |
Power supply voltage | DC24VDC12Vpowersupply |
Output signal | 4-20mA,0-5V1-5V0-10Vthree-wire |
Stable performance | ±0.2%FS/year |
Process connection | Submersible,intothe liquidundertest |
Pressure Type | Gauge,Absolute |
Storagetemperature | -40~125℃ |
Zero temperature drift | ±2%FS |
Sensitivitytemperature drift | ±2%FS |
Mechanicalvibration | 20g(20~5000Hz) |
Shock | 100g(11ms) |
Responsetime | <1ms(upto90%FS) |
Insulation | 100mΩ/250VDC |
Media Compatibility | Various mediacompatiblewith316Lstainless steel |
