Overview

Essential details

• Model Number:

• FD3-xB11R

• Type:

• Photoelectric Sensor, Fiber amplifier

• Place of Origin:

• Shanghai, China

• Brand Name:

• LANBAO

• Usage:

• positioning

• Output:

• NPN /PNP

• Description:

• photoelectric sensor

• Light source:

• Red LED

• Output select:

• NO/NC Optional

• Delay function:

• Off-delay timer/on-delay timer/single timer

• Ambient temperature:

• -20...50°C

• Supply voltage:

• 12...24VDC±10%, Ripple (P-P):≤10%

• Anti ambient light:

• Incandescent: ≤20,000lux; Daylight: ≤30,000lux

• Housing material:

• PC

• Weight:

• 66g

• Connection:

• 2m PVC cable

Supply Ability

• Supply Ability

• 10000 Piece/Pieces per Week

Packaging & delivery

• Packaging Details

LANBAO 12-24VDC Red LED NPN/PNP Plastic Optic Fiber Amplifier Sensor with PVC Cable
standard packaging

• Port

shanghai shenzhen ningbo guangzhou

• Lead time:

• Quantity(pieces)	1 - 1000	>1000
  Lead time (days)	15	To be negotiated

Video Description

00:00

00:43

LANBAO 12-24VDC Red LED NPN/PNP Plastic Optic Fiber Amplifier Sensor with PVC Cable

· Sensitivity can be adjusted by simple operation and supports automatic calibration
· Support delayed response, increase detection stability
· Rich functions, easy to set up, and widely used
· Fixed on DIN rail for easy installation and removal

Product Paramenters

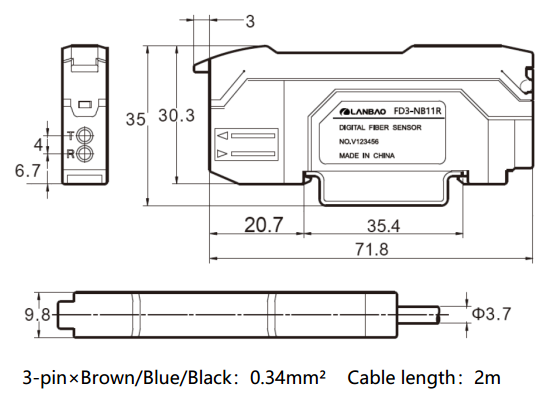

Dimension

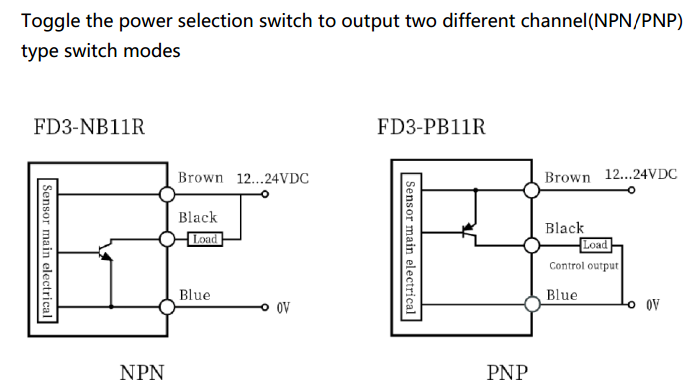

Wiring diagram
