Model Number:
FD3-NB11R
Type:
Optical Proximity Sensor, photoelectric sensors
Place of Origin:
Shanghai, China
Brand Name:
Lanbao
Usage:
detection position sensor
Output:
NPN
Description:
Fiber amplifier
Response time:
50μs(HIGH SPEED)/250μs(FINE)/1ms(SUPER)/16ms(MEGA)
Output select:
NO/NC Optional
Supply voltage:
12...24VDC±10%, Ripple (P-P):≤10%
Ambient temperature:
-20...55℃(No freezing)
Environment humidity:
35...85%RH(No condensation)
Housing material:
PC
Supply Ability
Supply Ability
10000 Pack/Packs per Week
Packaging & delivery
Packaging Details

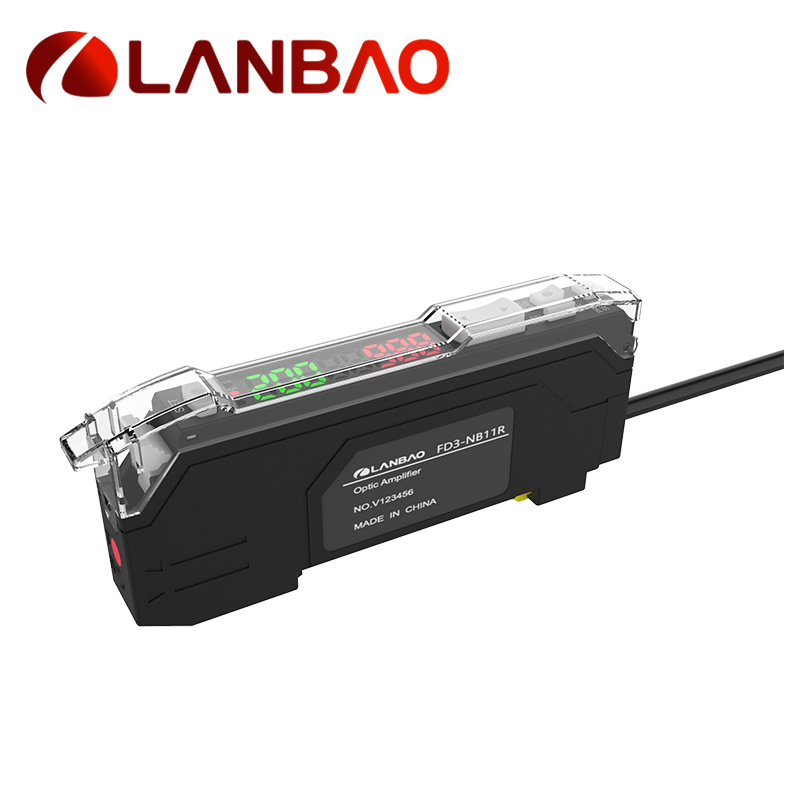

LANBAO new FD3 series optical Fiber amplifier Plastic photoelectric sensor Fiber amplifier
standard packaging
Port
shanghai
Lead time:
Quantity(pieces) 1 - 1000 >1000 Lead time (days) 15 To be negotiated
LANBAO new FD3 series optical Fiber amplifier Plastic photoelectric sensor Fiber amplifier
Product Features
♦Sensitivity can be adjusted by simple operation and supports automatic calibration
♦ Support delayed response, increase detection stability
♦ Sensitivity one-key setting, accurate and fast setting
♦ Rich functions, easy to set up, and widely used
♦ Normally open and normally closed switchable
♦Fixed on DIN rail for easy installation and removal
Specifications
Part number
Model specification | |||
NPN | FD3-NB11R | PNP | FD3-PB11R |
Technical specifications
Specifications | |
Light source | Red LED |
Response time | 50μs(HIGH SPEED)/250μs(FINE)/1ms(SUPER)/16ms(MEGA) |
Output select | NO/NC Optional |
Delay function | Off-delay timer/on-delay timer/single timer |
Control output | NPN 0V, load current: ≤100mA ; remaining voltage: ≤1V |
PNP 0V, load current: ≤100mA ; remaining voltage: ≤1V | |
Protect the circuit | Short circuit protection, Overload protection, Reverse polarity protection |
Supply voltage | 12...24VDC±10%, Ripple (P-P):≤10% |
Power consumption * | NPN: Normal: ≤900mW(24V: ≤36mA; 12V: ≤48mA); Power save mode: ≤800mW(24V: ≤32mA;12V: ≤39mA) |
PNP: Normal: ≤950mW(24V: ≤39mA; 12V: ≤52mA); Power save mode: ≤850mW(24V: ≤35mA at; 12V: ≤44mA) | |
Anti ambient light | Incandescent: ≤20,000lux; Daylight: ≤30,000lux |
Ambient temperature | -20...55℃(No freezing) |
Environment humidity | 35...85%RH(No condensation) |
Vibration resistance | 10...55Hz, Dual amplitude 1.5mm(2 hours each in X, Y, Z directions) |
Impulse withsand | 500m/s2, 3 times each for X,Y,Z direction |
Housing material | Pc |
Connection method | 2m PVC cable |
Weight | about 66g |
*High speed mode makes an increase of 160mW(7mA) power consumption | |

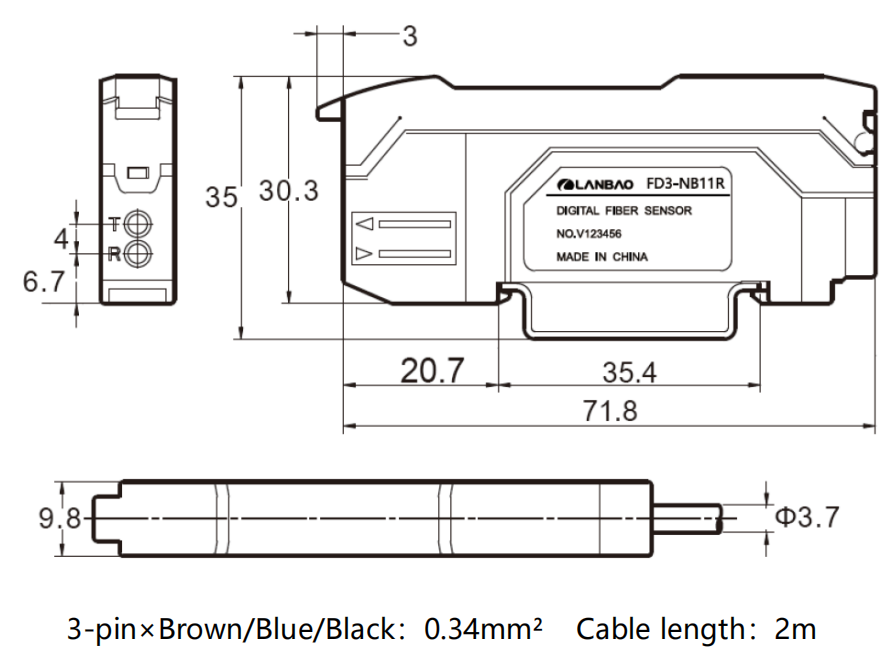

Dimension unit:m
