PVC Insulated Single Core Solid Conductor H05V-U / H07V-U Cable House Wiring Cable

Price:	N/A
Min quantity:
Quantity:
Deliver:	In days
Area:	China
Expiry:	Long-term
Edit time:	2022-11-08 16:12
Hits:	640

Company integrity file

Yanggu Xinhui Cable Co., Ltd.
verified [Archives]
Paid 0.00 Dolla deposit
ContactMr. xinhui li(Mr.)
Member [Offline] [Add to friend] [Send message]
Telphone
AreaChina
AddressXiangguang Qianyi Zoology Ind. Park, Liaocheng, Shandong, China

more>New Products

High Quality Copper Core Conductor Electric RVV 2x0.75MM 4x2.5MM 3x0.75MM2 4x1.5MM2 Power Cable

High Quality Copper

H07RV-F 1.5mm 2.5mm 4.5mm 6mm RVV 4core 3core 2core royal cord wire flexible copper conductor cables

H07RV-F 1.5mm 2.5mm

FREE SAMPLE RVS Two Cores Twisted Pair Copper Conductors PVC Insulated Twisted Flexible Wire

FREE SAMPLE RVS Two

Copper Core PVC Insulated Soft Sheathed Wire BVR Wire for Daily Household Appliances Connecting and

Copper Core PVC Insu

RVV 4 core power cable 1.5mm 2.5mm 4mm 6mm flexible wires copper

RVV 4 core power cab

RVV RVVP cable 1pair 2pair 4pair 6pair 1.5mm 2.5mm 4mm 6mm flexible shielded unshielded 24awg 16awq

RVV RVVP cable 1pair

Detail

Product Description

Specification

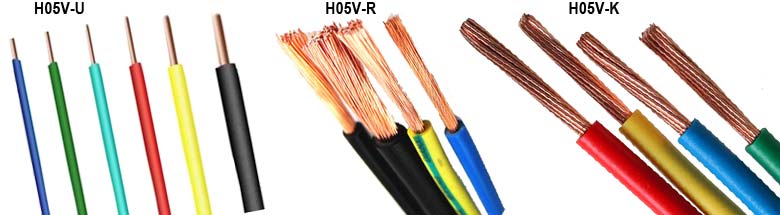

Product model: H05v-u: 300 / 300V single copper wire conductor ≤ 1.0mm ² H05v-r: 300 / 300V, 7 copper wire conductors ≤ 1.0mm ² H05v-k: 300 / 300V multiple thin copper wire conductors ≤ 1.0mm ² H07v-u: 450 / 750V single copper wire conductor ≥ 1.5mm ² ≤6mm ² H07v-r: 450 / 750V multiple thin copper wire conductors ≥ 2.5mm ² H07v-k: 450 / 750V multiple thin copper wire conductors ≥ 1.5mm ² Application standard: DIN VDE 0281-5-2002 hd21.3s3:1995 + A1:1999 Cable structure: Conductor: oxygen free bare copper wire / tinned conductor insulation: T12 environmental protection insulation color: optional rated temperature: 70 ℃ Rated voltage: 300 / 300V, 450 / 750V

model	Specifications	Number of conductors	Conductor diameter	Approximate density (kg / km)	Near insulation outer diameter (mm)
model	Specifications	Number of conductors	Conductor diameter	Approximate density (kg / km)	Nominal outer diameter / lower limit		Outer diameter upper limit
H05V-U	0.5	1	0.8	9.7	2.0	～	2.2
H05V-U	0.75	1	0.98	12.6	2.2	～	2.4
H05V-R	0.75	7	0.37	13.0	2.3	～	2.5
H05V-U	1	1	1.13	15.3	2.3	～	2.5
H05V-R	1	7	0.43	16.1	2.5	～	2.7
H07V-U	1.5	1	1.38	21.9	2.8	～	3.0
H07V-R	1.5	7	0.52	22.5	3.0	～	3.2
H07V-U	2.5	1	1.78	34.0	3.4	～	3.6
H07V-U	4	1	2.25	49.3	3.9	～	4.1
H07V-U	6	1	2.76	69.5	4.4	～	4.6
H07V-R	10	7	1.35	117.6	6.1	～	6.3
H07V-R	16	7	1.7	174.6	7.1	～	7.4
H07V-R	25	7	2.14	276.0	8.8	～	9.1
H07V-R	35	7	2.52	367.9	10.0	～	10.5
H07V-R	50	19	1.83	525.0	11.7	～	12.2
H07V-R	70	19	2.14	686.3	13.5	～	14.0
H07V-R	95	19	2.52	964.4	15.8	～	16.3
H07V-R	120	37	2.03	1201	17.4	～	17.9
H07V-R	150	37	2.26	1478	19.4	～	19.9

H07V-R	2.5	19	0.41	35.3	3.7	～	3.9
H07V-R	4	19	0.52	51.3	4.3	～	4.5
H07V-R	6	28	0.52	70.9	4.9	～	5.1
H07V-R	10	49	0.52	121.2	6.4	～	6.6
H07V-R	16	75	0.52	175.9	7.8	～	8.0
H07V-R	25	116	0.52	269.0	9.7	～	9.9
H07V-R	35	165	0.52	369.9	11.1	～	11.5
H07V-R	50	235	0.52	523.8	13.3	～	13.7
H07V-R	70	330	0.52	716.5	15.2	～	15.7
H07V-R	95	447	0.52	992.3	16.3	～	17.1
H07V-R	120	565	0.52	1236.0	18.0	～	18.8
H07V-R	150	707	0.52	1546.5	20.1	～	20.9

H05V-K	0.5	28	0.15	9.9	2.1	～	2.3
H05V-K	0.75	24	0.2	13.6	2.3	～	2.5
H05V-K	1	32	0.2	15.9	2.5	～	2.7
H07V-K	1.5	48	0.2	22.9	3.0	～	3.2
H07V-K	2.5	51	0.25	35.3	3.7	～	3.9
H07V-K	4	56	0.3	52.0	4.3	～	4.5
H07V-K	6	84	0.3	72.3	5.2	～	5.4
H07V-K	10	80	0.4	118.5	6.6	～	6.8
H07V-K	16	127	0.4	179.2	7.9	～	8.1
H07V-K	25	199	0.4	276.7	9.8	～	10.2
H07V-K	35	278	0.4	375.1	11.1	～	11.5
H07V-K	50	396	0.4	532.2	13.3	～	13.8
H07V-K	70	558	0.4	729.9	15.3	～	16.3
H07V-K	95	756	0.4	984.8	17.7	～	18.7
H07V-K	120	956	0.4	2211.4	18.9	～	19.9
H07V-K	150	706	0.52	2760.0	20.8	～	21.8
H07V-K	185	871	0.52	3404.9	23.1	～	24.1
H07V-K	240	1130	0.52	4417.5	26.0	～	27.0
