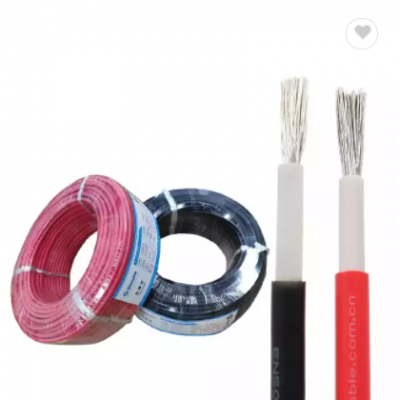

Slocable TUV 1500V DC 10mm Power Solar PV Cable XLPE Jacket High Voltage Solar Wire

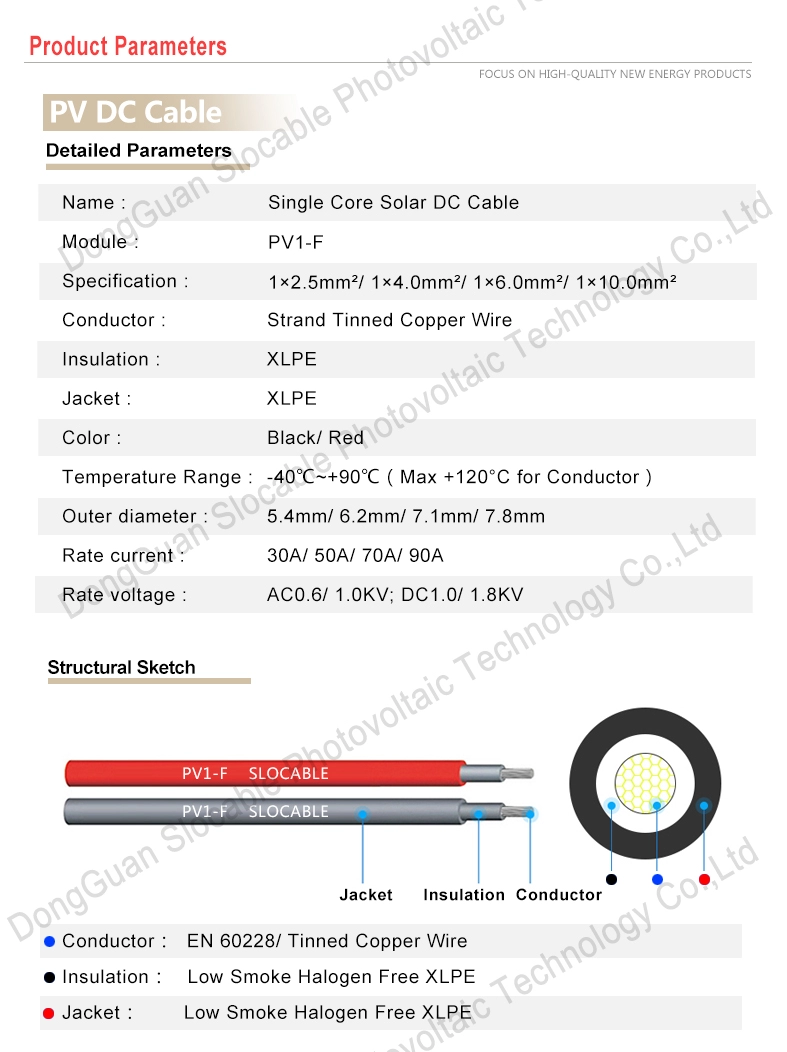

Product Description
Conductor : 99.9% copper, tinned
Insulation material : XLPE(XLPO)
High voltage and High current
Double walls insulation
Temperature range : -40℃~90℃
Halogen-free material
UV resistance,water, ozone, fluids, salt, general weathering

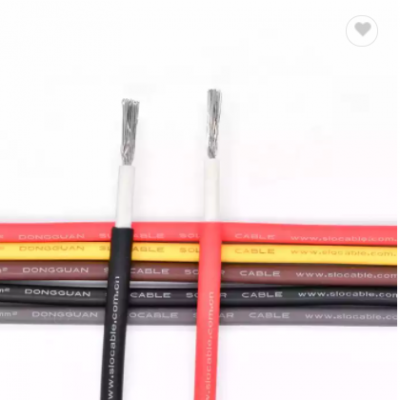

Color : Black / Red / Blue
Flame test according to : DIN EN 50265-2-1 / UL1571(VW-1)
Service Life: At least 25 years at suitable temperature
Technical Data

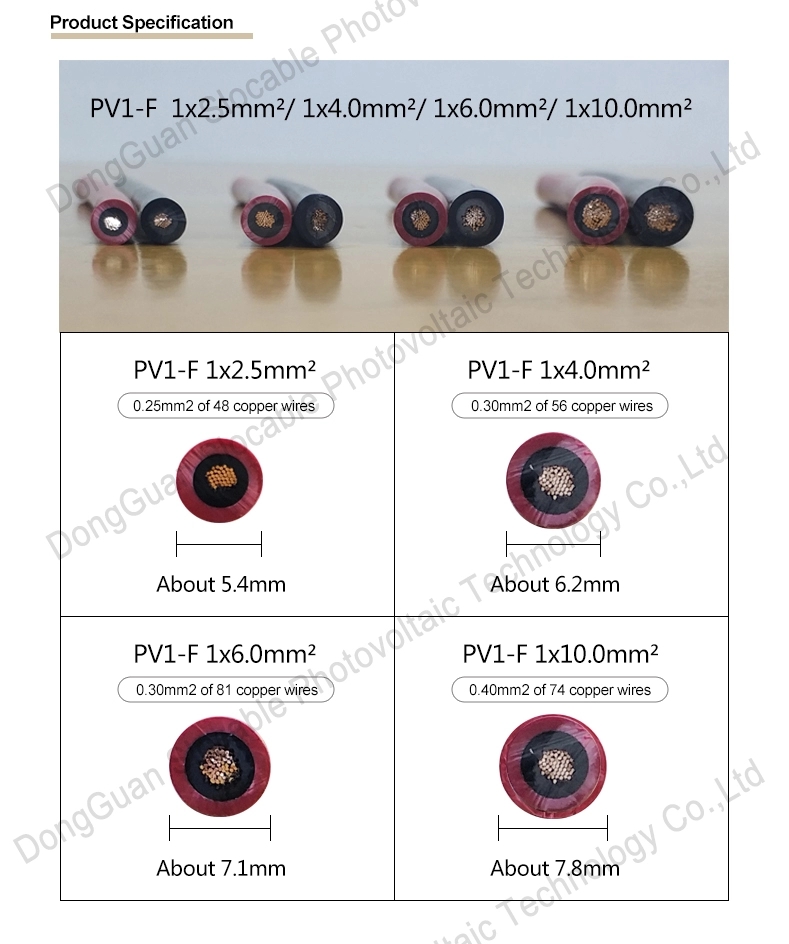

Size | Cross section | Conductor Structure | Outer Diameter | Max.DC Resistance at 20℃ | Rated Current |
mm2 | mm2 | mm | mm | Ω/KM | A |
1x2.5mm2 | 2.5mm2 | 48xØ0.25 | 5.4 | 8.21 | 30A |
1x4.0mm2 | 4.0mm2 | 56xØ0.285 | 6.1 | 5.09 | 50A |
1x6.0mm2 | 6.0mm2 | 81xØ0.30 | 7.0 | 3.39 | 70A |
1x10.0mm2 | 10.0mm2 | 74xØ0.40 | 7.8 | 1.95 | 95A |
