Through years of international engineering experience, our factory is capable of producing transformers meeting various
international standards, such as IEC, IEEE, ANSI, CSA.
Product Description

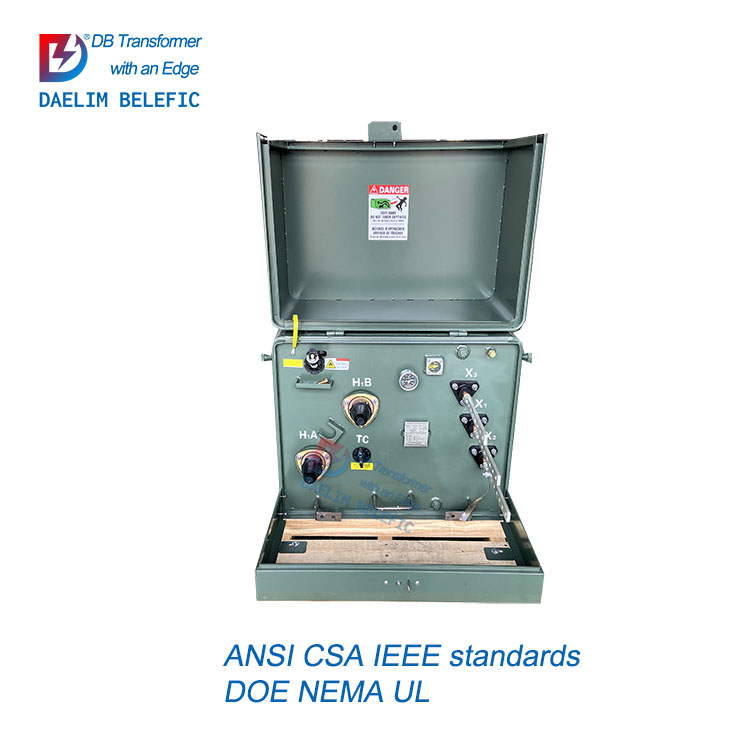

Single Phase Pad Mounted Transformer

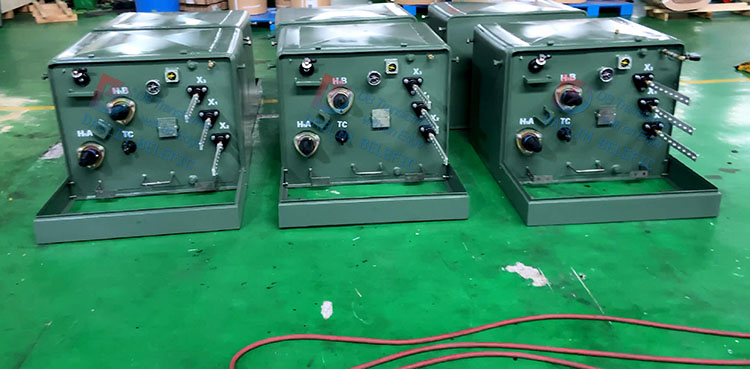

Single phase pad mounted transformer is oil-immersed distribution transformer. The traditional transformer is designed in a box-type shell. It has the characteristics of small size, light weight, low noise, low loss, safety and reliability. It is widely used in residential quarters, commercial centers, hospitals, parks, schools, etc.
Single phase pad mounted transformers are self-cooled, available in loop or radial feed, and are dead front. Meet or exceeds ANSI /CSA/IEEE standards.
Single Phase Pad Mounted Transformer Standards Features
Daelim's single phase pad mounted transformer tank coating exeeds C57,12.8 and C57,12.29.Full compliance with IEEE C57.12.28 enclosure integrity standards.
Click here for the transformer Technical Specifications
Two externally clamped universal high-voltage bushing wells for loop feed operation or one externally clamped bushing well for radial feed operation |
Three externally clamped low-voltage bushings with threaded copper studs, including a fully insulated neutral terminal with removable ground strap |
Embossed bushing mounts; Recessed oil compartment bottom |
Threaded, flush mounted stainless steel lifting provisions |
Automatic pressure relief device |
Electrical grade mineral oil with oxidation inhibitor |
Removable hood with corrosion resistant stainless steel hinge pins and barrels |
Mild steel enclosure and detachable sill fastened with stainless steel hardware |
Front panel accessory mounting bracket; |
Domed top surfaces on hood and oil compartment to prevent water retention |
Oil fill/oil level plug; Oil drain plug; Tank grounding provisions |
Corrosion resistant locking assembly with captive penta-head security bolt, floating nut and padlock provision |
Decal or stenciled bushing designations |
Laser engraved anodized aluminum nameplate |
Meets or exceeds current ANSI, IEEE, NEMA, CSA, and DOE standards as applicable |
Transformer Ratings
