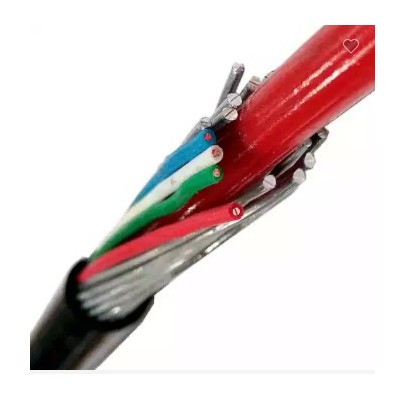

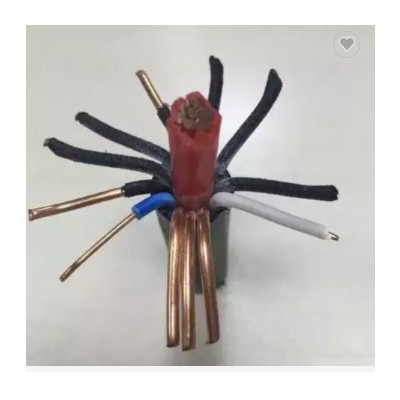

Cu/Al conductor PVC insulation concentric conductor PVC sheath power cable
Application:
Power cable of Cu conductor PVC insulation PVC sheath and concentric conductor is used for power transmission on power lines of rated voltage 0.6/1kV or lower. It is widely used in petrochemical industry, metallurgy, mines and high-rise buildings.
Standards: IEC502-1983, IEC331-1970
Conductor: Cu/Al
Insulation: PVC (Premature Ventricular Contraction)
Sheath: PVC (Premature Ventricular Contraction)
Sheath Color: Black or Gray (Bespoke cable)
Bending Radius:
Single core: 20D ± 0.05, multi-core: 15D ± 0.05
Temperature Rating: 0°C to 70°C
0.6/1kV 3+1-core Cu(Al)/PVC/PVC Concentric Conductor Cable | |
Nominal cross sectional area of conductor(mm2) | Approx, overall diameter(mm) |
3×16+1×10 | 21.5 |
3×25+1×16 | 25.1 |
3×50+1×25 | 28.1 |
3×95+1×50 | 35.0 |
3×120+1×70 | 38.7 |
3×300+1×150 | 59.5 |
Packaging & Shipping
