Overview

Essential details

• Place of Origin:

• Zhejiang, China

• Brand Name:

• Yomin

• Model Number:

• YEMO15SD Energy Meter

• Display Type:

• Digital Only

• Phase:

• Single Phase

• Measuring Energy Range:

• 5(32)A Energy meter

• Accuracy Class:

• 1.0 Energy meter

• Output Voltage:

• 127V,230V

• Operating Temperature:

• -20℃~+70℃

• Dimensions:

• 116x17.5x63mm

• Starting current(A):

• 0.02A

• Material:

• PC

• Display Mode:

• LCD

• Color:

• White

• Logo:

• Laser Engrave or Print

• Style:

• Customized design

• Certificate:

• ISO9001, CE, Rosh

• Feature:

• Ligth Weight

• Standard:

• IEC62053-21

• Frequency:

• 50HZ/60HZ

Supply Ability

• Supply Ability

• 10000 Piece/Pieces per Month

Packaging & delivery

• Packaging Details

PE bag+White box+Master Carton
CE Smart Single Phase Remote For Electric Meter Stop Active Energy Meter

• Port

NIngbo or Shanghai

• Lead time:

• Shipped in 5 days after payment

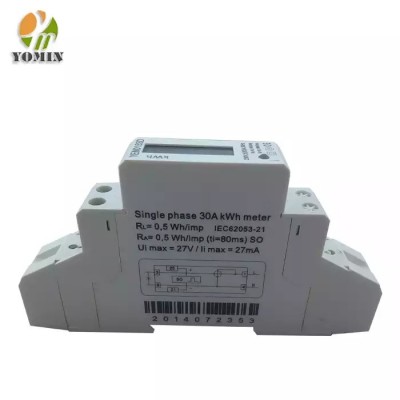

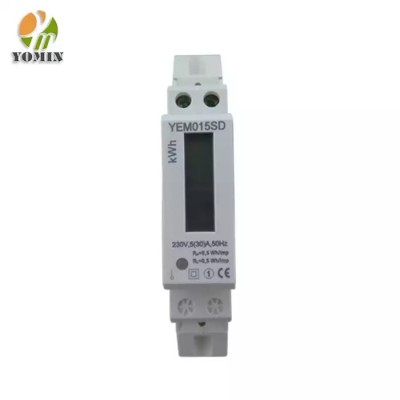

Single Phase Electronic Din Rail LCD Display Kilowatt Kwh Energy Meter    Model:YEM015SD

Product Description

Model YEM015SD single phase electronic DIN rail active energy meter is a kind of new

style single phase two wire active energy meter, it adopts micro-electronics technique

and imported large scale integrate circuit, and uses advanced technique of digital and

SMT techniques, etc. It has its completely independent intellectual property rights and

minimum size. It has already passed the test of the international authority KEMA. The

meter completely accords with relevant technical requirements of class 1 single phase

active energy meter stipulated in international standard IEC 62053-21. It can accurately

and directly measure 50Hz or 60Hz active energy consumption from single phase AC

electricity net. This meter has white backlight source eight digits LCD displays shows

the active energy consumption. It has following features: good reliability, small volume,

light weight, specious nice appearance, convenient installation, etc. This meter has

already got the patent certificate from China State Intellectual Property Office at

present. Patent certificate NO. ZL 2006 3 0119356.3,any other country patent

certificate are in assessing.

Features

1. 35mm standard DIN rail installation, complying with standard DIN EN50022.

2. Single pole width (Modulus 17.5mm), complying with standard DIN43880.

3. Standard configuration 7+1 digits display (9999999.1kWh) by white backlight source LCD. May select7+1 digits display (999999.1kWh) without backlight source general LCD, (product Configuration code is SE).

4. Standard configuration pulse output passive (polarity),May select distant pulse output passive

5. (Nonpolarity). And contact with all kind of AMR system conveniently,complying with standard IEC 62053-31 and DIN 43864.

6. Bicolor LED instructions power supply state (green) and signal of energy impulse (red).

7. Automatic detection the direction of the flow of load current. And Instructions on LED (when display HELP 1 on LCD, that is meaning the direction of the flow of load current reverse).

8. Single direction measurement single phase two wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.

9. Directly connect operation, there are two types wiring you may select. Standard configuration type S wiring, may select type U wiring (Product Configuration code is UD).

10. Extension terminals cover,in order to protect to use safety.

Technical parameters

Dimension and wiring

1 Where is your factory?

Our factory is located in Qiaoqian Industry Area, Liushi Town, Yueqing City, Zhejiang Province, 325603 China.

2 Are you manufacturer or business?

We are manufacturer established in 2002, and have over 16 years production experience.

3. Can I ask for samples?

Yes

4. What's the warranty of your products?

18 months

5. What's the lead time?

Depend on the quantity and model of the order, normally it takes around 2-3 days, but the exact lead time should be discussed  with our sales.

6. How about the MOQ, Payment term, Delivery port, and shipping date?

1)MOQ: 100 pcs/item based on existing packing.

2)T/T-30% deposit and 70% against copy of BL

3)L/C is also acceptable

4)Ningbo/Shanghai
