verified
Overview
Essential details
Place of Origin:
Zhejiang, China
Brand Name:
YOMIN
Model Number:
YEM024SJ-N
Display Type:
Digital Only
Phase:
Three Phase
Measuring Energy Range:
0-999999.9kWh
Accuracy Class:
Class1.0
Output Voltage:
3x127V/220V, 3x230V/400V
Operating Temperature:
-20℃~ 70℃
Dimensions:
88x75x73 mm
Rated Current:
5(80)A 10(60)A 20(100)A
Starting Current:
0.02A 0.04A 0.08A
Material of case:
PC (Poly Carbonate)
Installation:
35mm Standard DIN Rail
Connection Mode:
Directly/ CT/ CT&PT
Frequency:
50HZ/60HZ
Color:
White
Standard:
IEC62053-21
Certificates:
CE, RoHS, ISO9001
OEM:
Avaliable
Supply Ability
Supply Ability
20000 Piece/Pieces per Month din rail energy meter
Packaging & delivery
Packaging Details
1. Packing: Transparent polybag, paper box or foam box, carton or pallet.
2. CTN Size: 31*30*36CM.
3. CTN Weight: 17.04 KGS.
4. Packing Number for One Carton: 24PCS/CTN
Port
Ningbo/ Shanghai
Lead time:
shipped 2-5 days after payment
4 Poles Modules Small Size Three 3 Phase Din Rail Electricity Electric Digital watt kwh Energy Meter YEM024SJ-N
Technical Parameters
| Model | Accuracy | Frequency | Dimension | Connection Mode |
| YEM024SJ-N | 1.0 | 50/60HZ | 88x75x73mm | Directly/CT/CT&PT |
| Rated Voltage | Rated Current | Starting Current | Display Mode | Insulation Performance |
| 3x127V/220V, 3x230V/400V | 5(80)A 10(60)A 20(100)A | 0.02A, 0.04A, 0.08A | LCD 6+1 | AC voltage 4kv for 1 minute,1.2/50us wavefrom impulse voltage 6kv |
Dimension
1 Where is your factory?
Our factory is located in Qiaoqian Industry Area, Liushi Town, Yueqing City, Zhejiang Province, 325603 China.
2 Are you manufacturer or business?
We are manufacturer established in 2002, and have over 16 years production experience.
3. Can I ask for samples?
Yes
4. What's the warranty of your products?
18 months
5. What's the lead time?
Depend on the quantity and model of the order, normally it takes around 2-3 days, but the exact lead time should be discussed with our sales.
6. How about the MOQ, Payment term, Delivery port, and shipping date?
1)MOQ: 100 pcs/item based on existing packing.
2)T/T-30% deposit and 70% against copy of BL
3)L/C is also acceptable
4)Ningbo/Shanghai
Output Voltage:
220V/380V
Operating Temperature:
-20°C~+60°C
Dimensions:
88x125x73mm
Rated Current:
5(100)A
Standard:
IEC62053-21
Display:
LCD Display
Color:
White
Frequency:
50HZ/60HZ
Certificate:
CE ROHS
OEM:
Avaliable
Installation:
35mm Standard DIN Rail
Packaging & delivery
Selling Units:
Single item
Single package size:
9X13X7.5 cm
Single gross weight:
0.500 kg
Package Type:
Conventional export packing
Lead time:
Quantity(pieces) 1 - 10 >10 Lead time (days) 7 To be negotiated

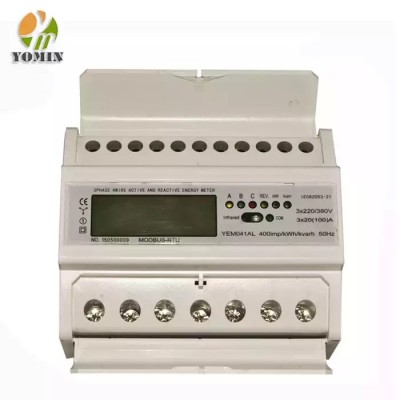

Current Transformer Connect Din Rail Three Phase Four Wire LCD Display Electronic Energy Meter
Product Description
Model YEM421JC three phase four wire electronic DIN rail active and reactive
integration energy meter is a kind of new style three phase four wire active energy
meter, it adopts micro-electronics technique, and imported large scale integrate circuit,
uses advanced technique of digital and SMT techniques, etc. The meter completely
accord with relevant technical requirements of class 1 three phase active energy meter
stipulated in international standard IEC 62053-21 and class 2 three phase reactive
energy meter stipulated in international standard IEC 62053-23. It can accurately and
directly measure 50Hz or 60Hz active and reactive energy consumption from three
phase four wire AC electricity net, it can display total energy consumption by step
motor type impulse register.This meter has seven digits LCD displays shows active
energy.It has following features:good reliability, small volume, light weight, specious
nice appearance, convenient installation, etc.
Features
35mm standard DIN rail installation, complying with standard DIN EN50022. Or front board installed (mounting holes center distance 63 mm), users can choose any one by themselves.
Ten pole width (Modulus 12.5mm), complying with standard JB/T7121-1993.
7 digits LCD display, 6+1 digits(999999. 1kWh),may select 5+2 digits display. (Please specified when ordering)
Standard configuration one port of active pulse output passive and one port of reactive pulse output passive(polarity),The output rate are 0.01, 0.1, 1, 10kWh or kvarh/Pulse.Users can choose any one by themselves. May select one port of active pulse output passive and one port of reactive pulse output passive (nonpolarity). And contact with all kind of AMR system conveniently,Complying with standard IEC 62053-31 and DIN 43864. (Please specified when ordering)
Five LED instructions power supply state and signal of active energy impulse and reactive energy impulse.
Automatic detection the direction of the flow of load current. And instructions by one LED.
Single direction three components measure three phase four wire active and reactive energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21and IEC 62053-23.
Standard configuration type S wiring (Inlet from top, outlet from bottom), directly connect operation, may select use CT (Product Configuration code is IC) and PT&CT (Product Configuration code is HC) for operation.
Standard configuration short terminals cover, may select extension terminals cover, in order to protect to use safety. (Product Configuration code is JF).
Dimension and wiring
1 Where is your factory?
Our factory is located in Qiaoqian Industry Area, Liushi Town, Yueqing City, Zhejiang Province, 325603 China.
2 Are you manufacturer or business?
We are manufacturer established in 2002, and have over 16 years production experience.
3. Can I ask for samples?
Yes
4. What's the warranty of your products?
18 months
5. What's the lead time?
Depend on the quantity and model of the order, normally it takes around 2-3 days, but the exact lead time should be discussed with our sales.
6. How about the MOQ, Payment term, Delivery port, and shipping date?
1)MOQ: 100 pcs/item based on existing packing.
2)T/T-30% deposit and 70% against copy of BL
3)L/C is also acceptable
4)Ningbo/Shangha
