Overview

Essential details

• Place of Origin:

• Zhejiang, China

• Brand Name:

• YOMIN

• Model Number:

• YEM041AL

• Display Type:

• Digital Only

• Phase:

• Three Phase

• Measuring Energy Range:

• 5(30)A,10(60),20(100)A

• Accuracy Class:

• 1.0

• Output Voltage:

• 3x127/220 V ,3x230/400 V

• Operating Temperature:

• -20-70℃

• Dimensions:

• 125*88*68

• Material of meter case:

• PC

• Certificate:

• CE Rohs

• Founction:

• three tariffs,Far infrared,RS485

• Size:

• 125x88x73mm

• Frequency:

• 50-60HZ

• Staring Current(A):

• 0.02A, 0.04A, 0.08A

• Display Mode:

• LCD

• Current Specification(A):

• 5(30)A,10(60),20(100)A

• Reference Voltage(V):

• 3x127/220V ,3x230/400V

• Model:

• YEM041AL

Supply Ability

• Supply Ability

• 100000 Piece/Pieces per Month

Packaging & delivery

• Packaging Details

PE bag+White box+Master Carton

• Port

ShangHai, NingBo

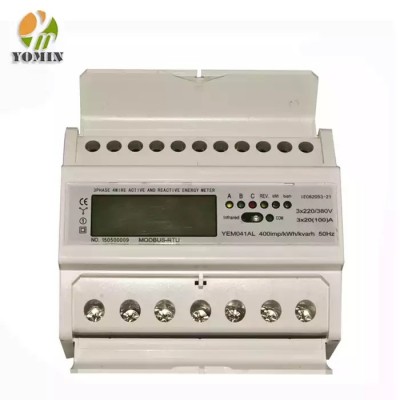

New Rs485 Three Phase Multifunction LCD  Power Energy Meter

Product Description

Technical Department

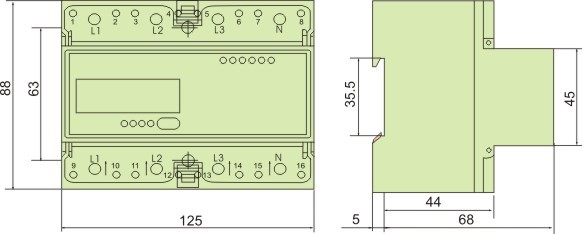

Dimension

• Logo:

• Laser Engrave or Print

• Standard:

• IEC62053-21

• Communication Mode:

• Far infrared,RS485(DL/T645-1997 or Modbus-RTU )

Supply Ability

• Supply Ability

• 10000 Piece/Pieces per Month

Packaging & delivery

• Packaging Details

PE bag+White box+Master Carton

• Port

Ningbo or Shanghai

• Lead time:

• 5 Days after payment

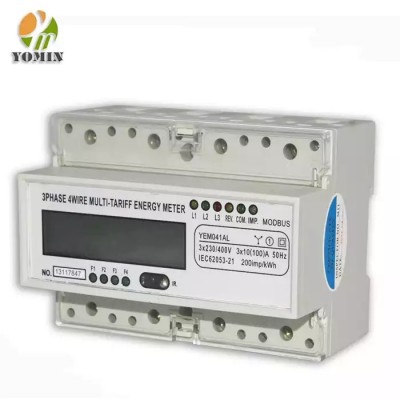

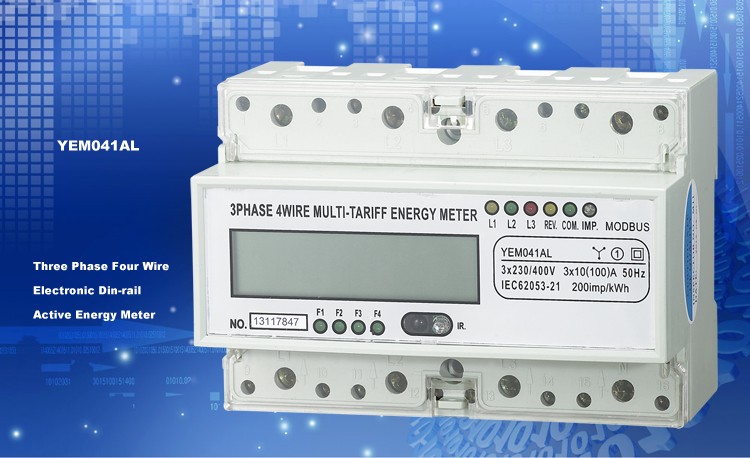

Hot Sale RS485 Multi Tariff  Digital Electricity Power Meter /

Single Phase Energy Meter Multi-rate

Product Description

Technical Parameters

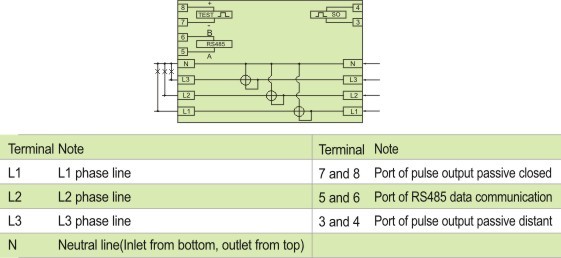

Dimension and Wiring

1 Where is your factory?

Our factory is located in Qiaoqian Industry Area, Liushi Town, Yueqing City, Zhejiang Province, 325603 China.

2 Are you manufacturer or business?

We are manufacturer established in 2002, and have over 16 years production experience.

3. Can I ask for samples?

Yes

4. What's the warranty of your products?

18 months

5. What's the lead time?

Depend on the quantity and model of the order, normally it takes around 2-3 days, but the exact lead time should be discussed  with our sales.

6. How about the MOQ, Payment term, Delivery port, and shipping date?

1)MOQ: 100 pcs/item based on existing packing.

2)T/T-30% deposit and 70% against copy of BL

3)L/C is also acceptable

4)Ningbo/Shangha
