Overview

Essential details

• Place of Origin:

• Zhejiang, China

• Brand Name:

• YOMIN

• Model Number:

• YEM021EI

• Display Type:

• Analog Only

• Phase:

• Three Phase

• Measuring Energy Range:

• 0-99999.9kWh

• Accuracy Class:

• Class1.0

• Output Voltage:

• 380V

• Operating Temperature:

• -20℃~ 70℃

• Dimensions:

• 88x125x73 mm

• Rated Current:

• 5(100)A

• Starting Current:

• 0.08A

• Material of case:

• PC (Poly Carbonate)

• Installation:

• 35mm Standard DIN Rail

• Connection Mode:

• Directly

• Frequency:

• 50HZ

• Color:

• White

• Standard:

• IEC62053-21

• Certificates:

• CE, RoHS, ISO9001

• OEM:

• Avaliable

Packaging & delivery

• Selling Units:

• Single item

• Single package size:

• 9X13X8 cm

• Single gross weight:

• 0.500 kg

• Package Type:

• Conventional export packing.The outer package is covered with bubble wrap. Please state the voltage and frequency you need for the order.For instance:220V/50HZ

• Lead time:

• Quantity(pieces)	1 - 10	>10
  Lead time (days)	7	To be negotiated

Din Rail 7p Three Phase Counter Display Electric Kwh Watt Meter

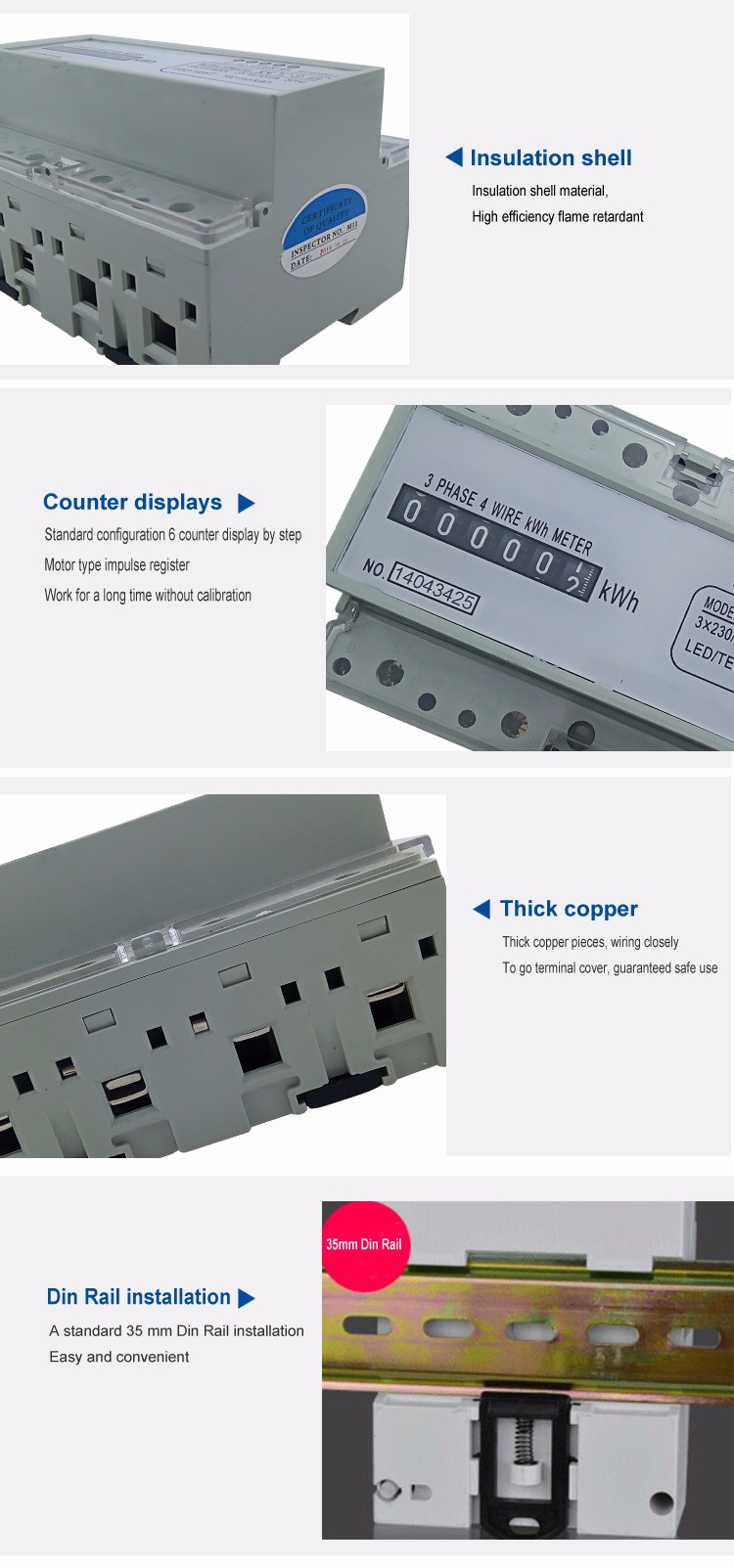

Model YEM021EI three phase four wire electronic DIN rail active energy meter is a kind of new style three phase four wire active energy meter, it adopts micro-electronics technique, and imported large scale integrate circuit, uses advanced technique of digital and SMT techniques, etc. The meter completely accords with relevant technical requirements of class 1 three phase active energy meter stipulated in international standard IEC 62053-21. It can accurately and directly measure 50Hz or 60Hz active energy consumption from three phase four wire AC electricity net. It can display total energy consumption by step motor type impulse register. It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.
