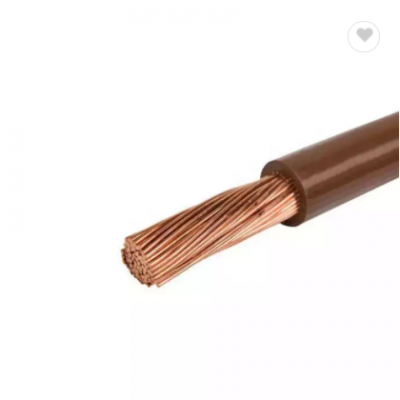

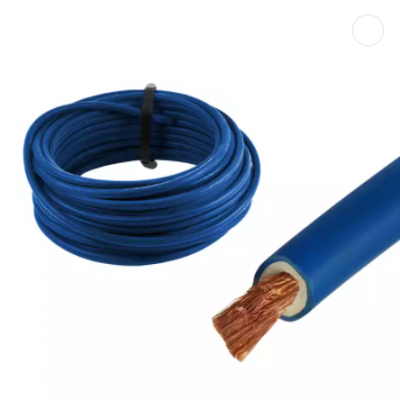

best cable wire single core cable 6mm house wire



Price: N/A
Min quantity:
Quantity:
Deliver: In days
Area: China
Expiry: Long-term
Edit time: 2022-11-09 13:53
Hits: 865

Company integrity file
more>New Products
rg58 cable coaxial cable rg11 rg59 cctv cable copper electric wire rubber flexible cable wire and cable copper cable prices cable manufacturers 10mm cable electrical wire rg59 cctv cable rg59 coaxial cable price rg6 coaxial cable price flat cable earth 2 core flat cable twin and earth electrical cable flat electrical cable two wire cable flat coil copper
Detail

best cable wire single core cable 6mm house wire•Application:

Cables are suitable for laying in the pipe also can be laid in the open or in the embedded casing do not allow direct installation in cable tray,construction or container

Suitable for unstallation inside the instrument,and lighting,drying room,production equipment,protection laying og switchgear



•Performance:

Operating voltage:300/500V   450/750v

Insulation resistance:10 Gohm x cm

InMinimum bend radius:15 x cable diameter

Operating installation:-5℃to+80℃

Fixed installation:-40℃to+70℃

Oilresistant,flame retardant,and extension flammable:IEC 60332.1/the HD 405.2and VDE 0207-4


Nominal sectionNumber of conductorsToplimit of overall diameterMaximum DCMinium insulationRecommended value of carrying capacityReference weight
Voltage Level(mm²)(mm)resistance (20℃)resistance (20℃)(A)(KG,KM)
(V)

(Ω/km)(MΩ·km)

300/3000.512.3360.015138.3
0.7572.624.50.0121710.9
0.7512.724.50.0141711.8
172.818.10.0112013.7
11318.10.0132014.8
300/5001.513.212.10.0112520
1.573.312.10.012521.3
2.513.97.410.013431.5
2.5747.410.0093434.4
414.44.610.00854446.8
474.64.610.00774448.1
6153.080.0075865.1
675.23.080.00655868.8
1076.71.830.006579111
1677.81.150.005111166
2579.70.7270.005146263
35710.90.5240.004180356
501912.80.3870.0045228487
701914.60.2680.0035281679
951917.10.1930.0035344932
1203718.80.1530.00323971163
1503720.90.1240.00324561424
1853723.30.09910.00325191789
2406126.60.07540.00325922335
3006129.60.06010.0036852924
4006133.20.0470.00287993750

best cable wire single core cable 6mm house wirebest cable wire single core cable 6mm house wirebest cable wire single core cable 6mm house wirebest cable wire single core cable 6mm house wirebest cable wire single core cable 6mm house wirebest cable wire single core cable 6mm house wirebest cable wire single core cable 6mm house wirebest cable wire single core cable 6mm house wire
